IBM Storwize V3700 User Manual

2. Turn the canister over and install it in the control enclosure as shown in
Figure 25.
a. With the latch and release levers fully extended, slide the canister into the
enclosure until the levers begin to move inwards.
b. Simultaneously close both latch and release levers.
v3500100
O
K
IN
O
K
IN

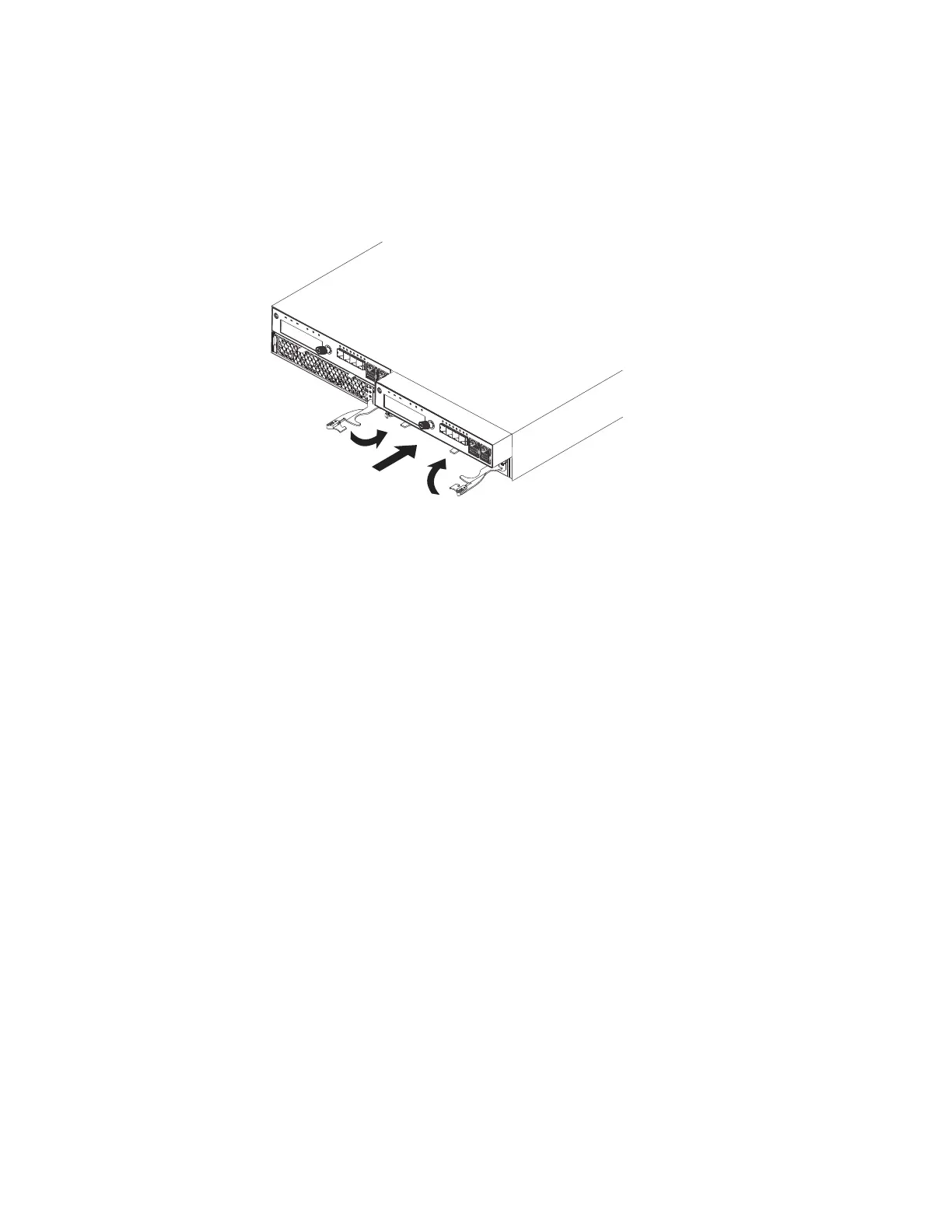

Figure 25. Installing a node canister
Chapter 2. Installing the hardware 39

IBM Storwize V3700 Specifications

General

Model	IBM Storwize V3700
Maximum Drives	120
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SAS, Nearline SAS, SSD
Host Interface	1 Gb iSCSI, 10 Gb iSCSI, 6 Gb SAS, 8 Gb FC
Cache	4 GB per control enclosure
Number of Host Ports	4 per control enclosure
Cache Memory	4 GB per control enclosure
Power Supply	Dual, hot-swappable
Operating Temperature	10°C to 35°C
Non-operating Temperature	-40°C to 60°C (-40°F to 140°F)
Operating Humidity	20% to 80%
Non-operating Humidity	5% to 95%
Dimensions	8.7 cm x 48.3 cm x 55.6 cm
