Server controls, LEDs, and connectors
This section describes the controls, light-emitting diodes (LEDs), and connectors on
the front and rear of the server.
Front view

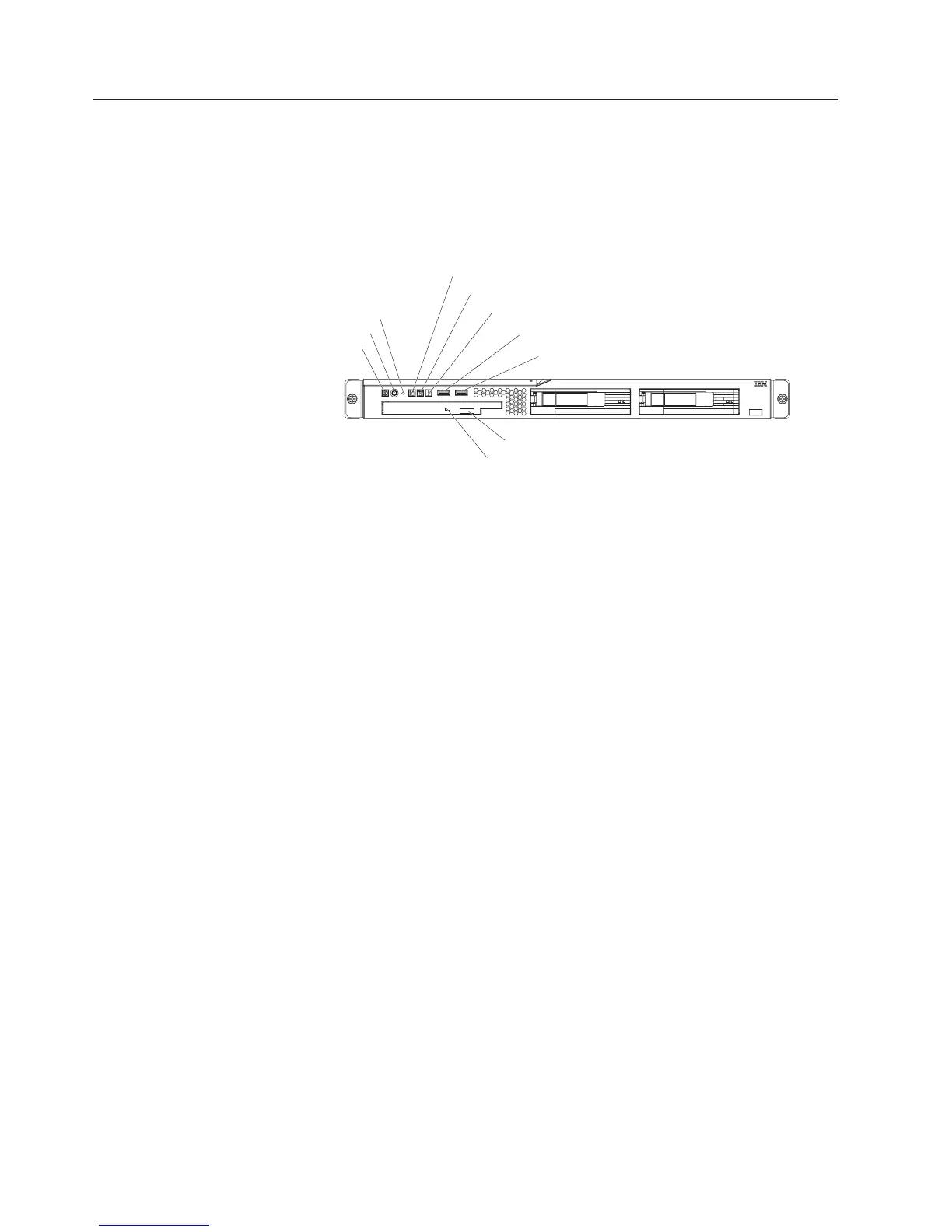

The following illustration shows the controls, light-emitting diodes (LEDs), and
connectors on the front of the server.
Power-on LED
Power-control button
Reset button
Hard disk drive activity LED
Locator LED
System-error LED
USB 1 connector
USB 2 connector
CD-eject button
CD drive activity LED
Power-on LED: When this LED is lit and not flashing, it indicates that the server is
turned on. When this LED is flashing, it indicates that the server is turned off and
still connected to an ac power source. When this LED is off, it indicates that ac
power is not present, or the power supply or the LED itself has failed.
Note: If this LED is off, it does not mean that there is no electrical power in the
server. The LED might be burned out. To remove all electrical power from the
server, you must disconnect the power cord from the electrical outlet.
Power-control button: Press this button to turn the server on and off manually. A
power-control-button shield comes installed around the button to prevent the server
from being turned off accidentally. You can remove this disk-shaped shield if you
prefer.
Reset button: Press this button to reset the server and run the power-on self-test
(POST). You might have to use a pen or the end of a straightened paper clip to
press the button.
Hard disk drive activity LED: When this LED is flashing, it indicates that a hard
disk drive is in use.
Locator LED: This LED can be lit remotely by the system administrator to aid in
visually locating the server. You can use IBM Director to light this LED remotely.
System-error LED: When this LED is lit, it indicates that a system error has
occurred. An LED on the system board might also be lit to help isolate the error.
See Chapter 2, “Diagnostics,” on page 11 for additional information.
USB connectors: Connect a USB device to either of these connectors.
CD-eject button: Press this button to release a CD from the CD drive.
CD drive activity LED: When this LED is lit, it indicates that the CD drive is in use.
4 IBM System x3250 Types 4364 and 4365: Problem Determination and Service Guide

IBM System x3250 Specifications

General

Processor Sockets	1
Memory Slots	4
Processor	Intel Core 2 Duo
Storage	SATA
Maximum Internal Storage	Up to 4TB
Hard Drive Interface	SATA
RAID Support	RAID 0, 1
Network	Gigabit Ethernet
Operating System Support	Windows Server, Linux
