IBM System x3250

System-board optional device connectors

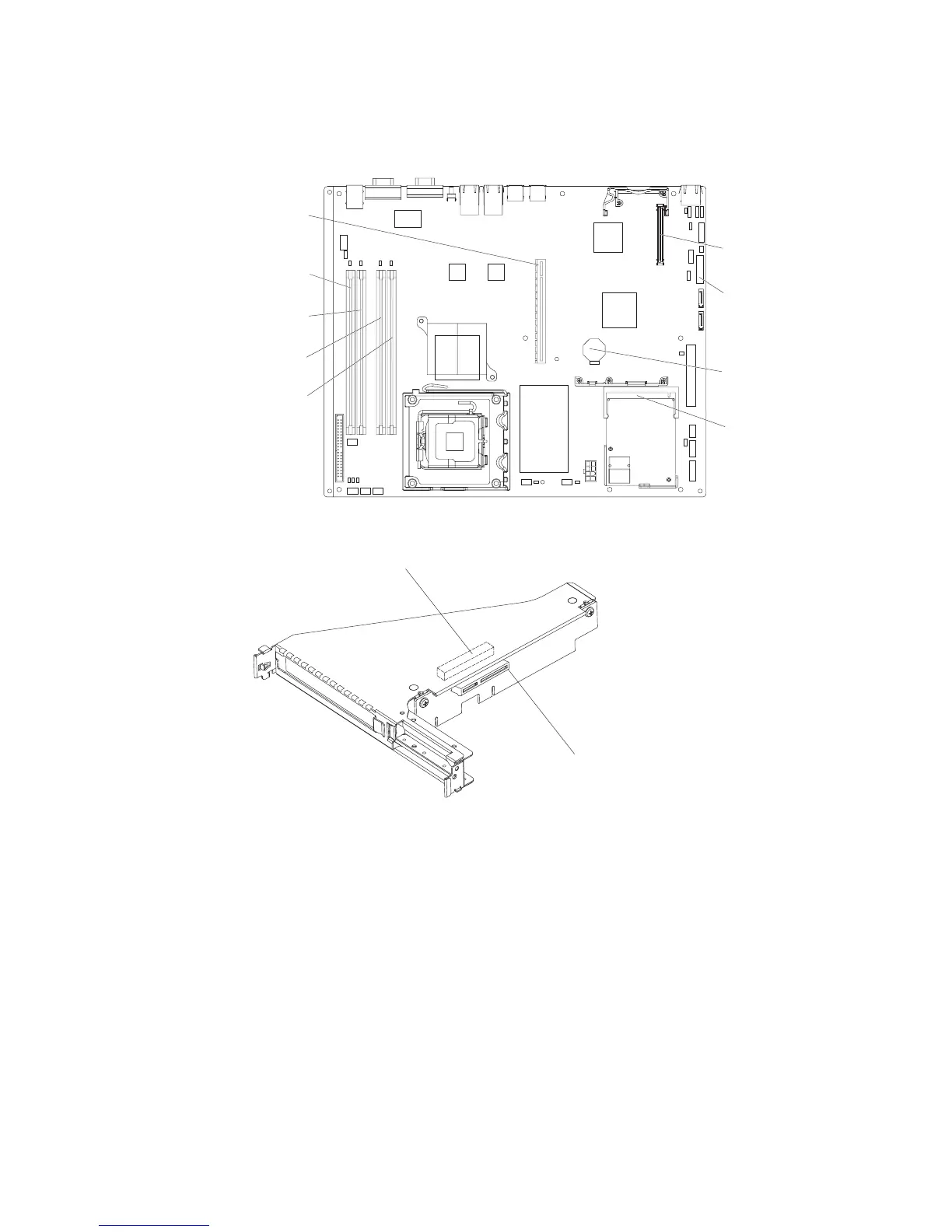

The following illustration shows the connectors for user-installable optional devices.
Remote Supervisor
Adapter II SlimLine
connector
Other
systems-management
adapter connector
Battery connector
SAS/SATA controller
connector
DIMM 1
connector
DIMM 2
connector
DIMM 3
connector
DIMM 4
connector
Riser-card
connector
The following illustration shows the location of the PCI Express slots on the
riser-card assembly.
PCI Express x8 slot 1
PCI Express x8 slot 2
10 IBM System x3250 Types 4364 and 4365: Problem Determination and Service Guide
