IBM System x3250 Problem Determination And Service Guide

System-board internal connectors

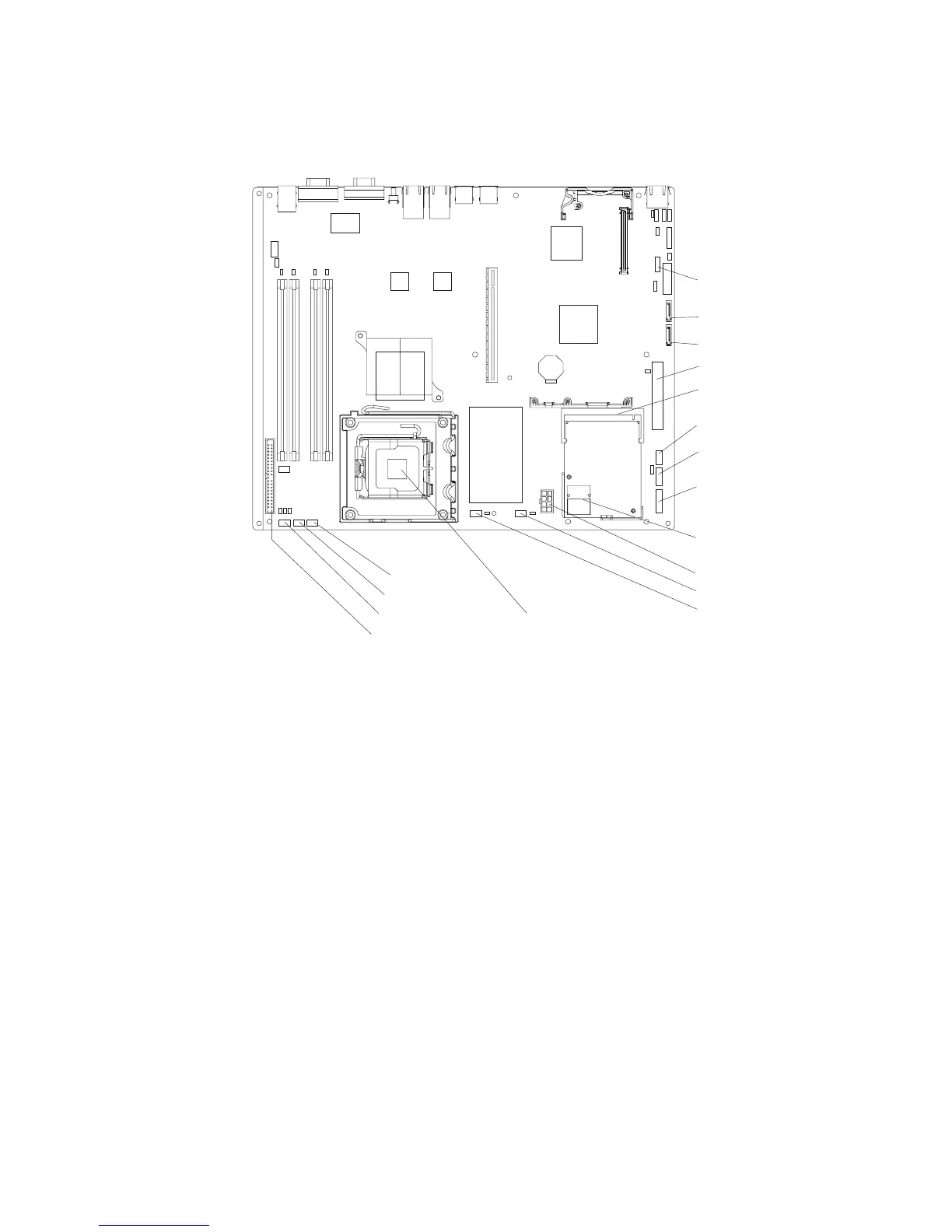

The following illustration shows the internal connectors on the system board.
SAS/SATA controller
card connector
Wake on LAN connector
SATA 2 connector
SATA 0 connector
Power connector
Front USB connector
Operator information
panel connector
Hot-swap SAS/SATA
backplane power
connector
Power connector
Fan 5 connector
Fan 4 connector
Microprocessor connection
Fan 3 connector
Fan 2 connector
Fan 1 connector
IDE connector
SAS signal connector
(some models)
Important: Use only a supported IBM SAS/SATA controller in the SAS/SATA
controller card connector. For a list of supported optional devices for the server, see
http://www.ibm.com/servers/eserver/serverproven/compat/us/
6 IBM System x3250 Types 4364 and 4365: Problem Determination and Service Guide

IBM System x3250 Specifications

General

Processor Sockets	1
Memory Slots	4
Processor	Intel Core 2 Duo
Storage	SATA
Maximum Internal Storage	Up to 4TB
Hard Drive Interface	SATA
RAID Support	RAID 0, 1
Network	Gigabit Ethernet
Operating System Support	Windows Server, Linux
