7. Open the microprocessor release latch to the fully open position.
8. Open the microprocessor bracket frame.
Attention: Use the vacuum tool that comes with the replacement part to
remove the microprocessor. Dropping the microprocessor during removal can
damage the contacts. Also, contaminants on the microprocessor contacts, such
as oil from your skin, can cause connection failures between the contacts and
the socket.
9. Remove the microprocessor.

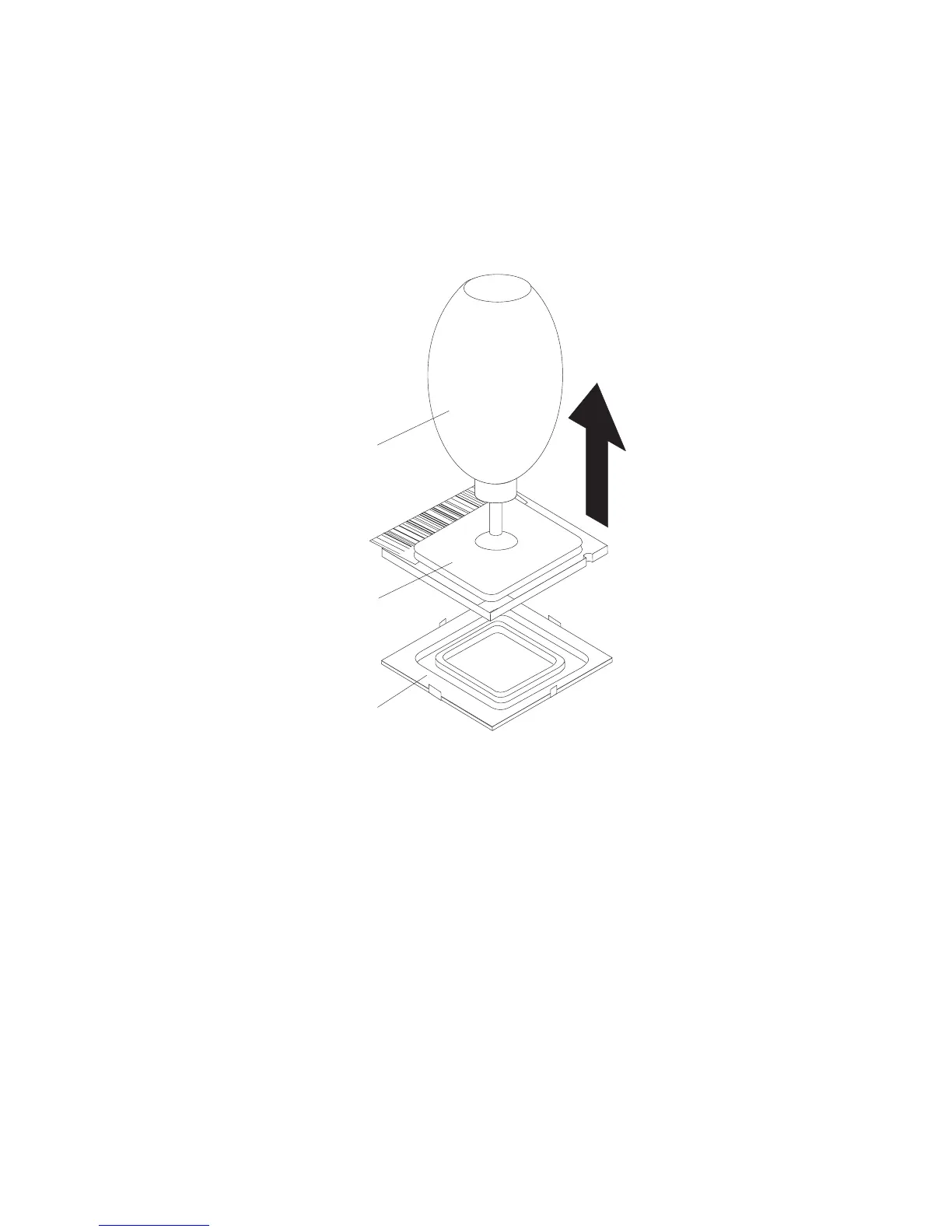

Vacuum tool
Microprocessor
Socket
a. Squeeze and hold the bladder of the tool; then, place the suction cup on
the microprocessor and release the bladder.
b. Using the tool, carefully lift the microprocessor straight up and out of the
socket, and place it on a static-protective surface.
c. Squeeze the bladder of the tool to release the microprocessor from the
suction cup.
10.
If you are instructed to return the microprocessor, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Installing the microprocessor
To install the replacement microprocessor, complete the following steps:
1. Make sure that the microprocessor bracket frame and release latch are both
fully open.
100 IBM System x3250 Types 4364 and 4365: Problem Determination and Service Guide
