4. Remove the retention clip from the drive and save for future use.
5. If you are instructed to return the CD or CD/DVD drive, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Installing a CD or CD/DVD combination drive
To install the replacement CD or CD/DVD combination drive, complete the following
steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 65.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external cables. Remove the cover (see “Removing the cover” on page 68).
3. Follow the instructions that come with the drive to set any jumpers or switches.

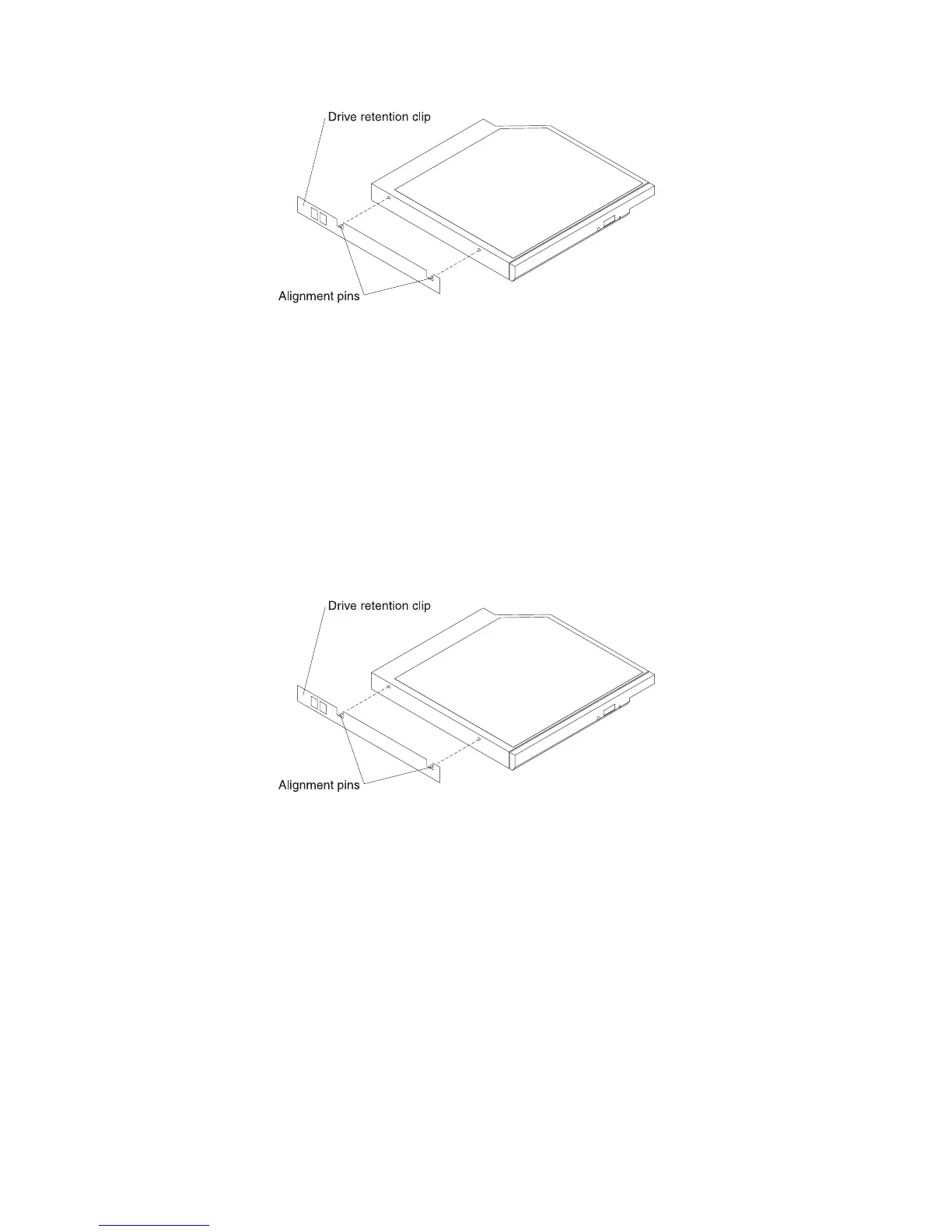

4. Attach the drive-retention clip that you removed in “Removing a CD or CD/DVD
combination drive” on page 77 to the side of the drive.
5. Slide the drive into the CD/DVD drive bay until the drive clicks into place.
6. Replace the cover (see “Installing the cover” on page 69).
7. Slide the server into the rack.
8. Connect the cables and power cords.
9. Turn on all attached devices and the server.
78 IBM System x3250 Types 4364 and 4365: Problem Determination and Service Guide
