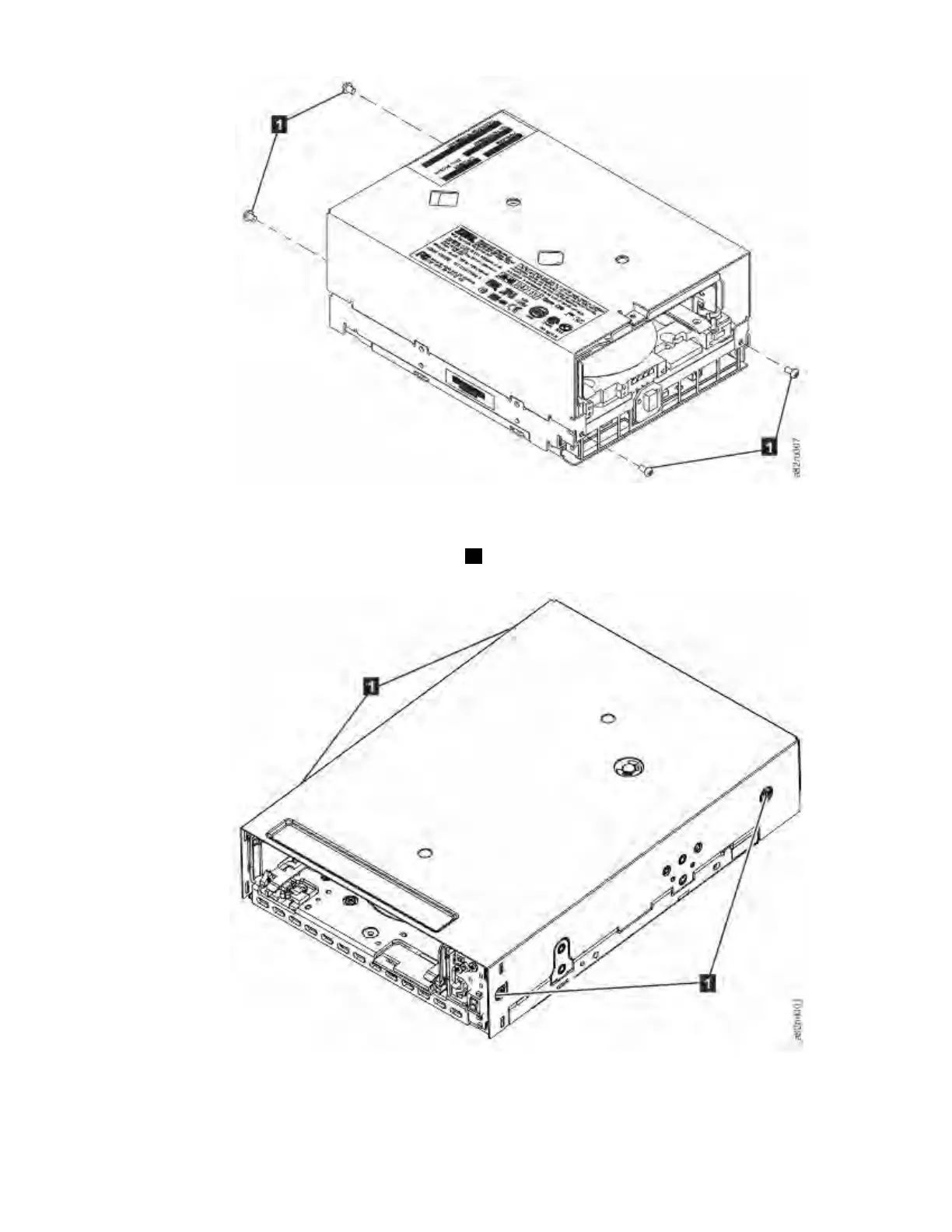

Figure 112. Removing the cover from the full height drive
3. Remove the cover of the half height drive by completing these steps:
a. Remove the four cover-mounting screws (1). Two screws are on each side of the drive.
b. Remove the cover by lifting it up.
Figure 113. Removing the cover from the half height drive
4. Inspect the drive to decide which of the following conditions most closely matches the symptom on
the drive:
IBM Condential
Appendix I. Manual cartridge removal procedure201

IBM TS4300 Specifications

General

Product Type	Tape Library
Form Factor	Rack-mountable
Host Interface	8 Gb Fibre Channel, 6 Gb SAS
Humidity	20% to 80% non-condensing
Number of Drives Supported	Up to 3
Drive Type Supported	LTO Ultrium 8, LTO Ultrium 7
Encryption	Yes
Remote Management	Yes (web-based interface)
Supported Media	LTO Ultrium 8, LTO Ultrium 7
Power Supply	100-240 VAC, 50/60 Hz
