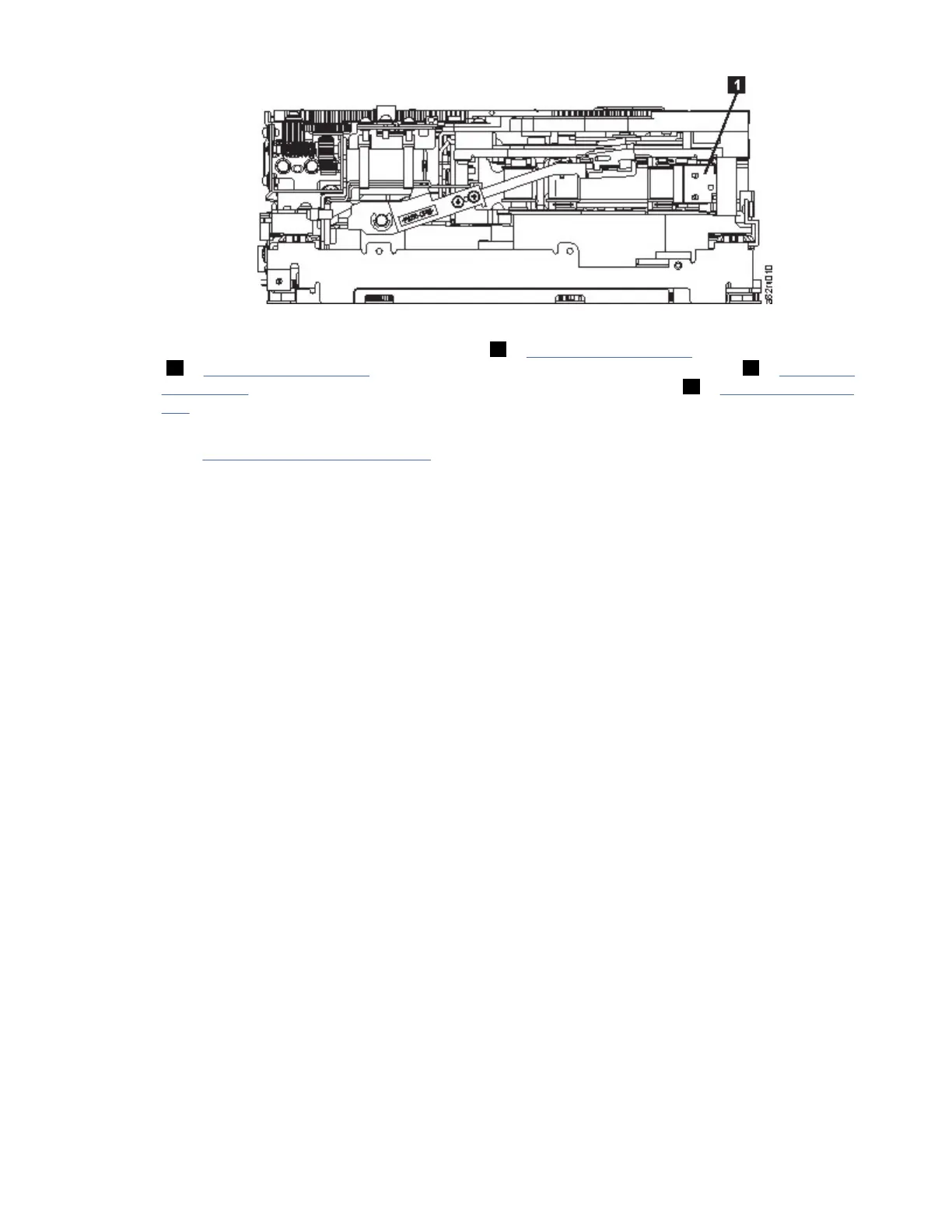

Figure 128. Leader Block Assembly (LBA)
10. Continue rotating the loader motor worm gear (1 in Figure 127 on page 216) until the rotator stub
(3 in Figure 127 on page 216) is positioned as shown. Notice that the rotator stub (3 in Figure 127
on page 216) is nearly aligned with the cartridge loader tray guide bearing (2 in Figure 127 on page
216).
11. Remove the cartridge from the cartridge loader tray.
12. Go to “Ending procedure” on page 220.
Half height drive: No apparent failure or damage to tape
About this task
Note: If the cartridge in the drive is an INPUT tape that contains ACTIVE or 'ONLY COPY' data (there is no
backup), eject commands that are issued at the host fail to unload the tape, and power-cycling the drive
fails to eject the cartridge, make no further attempts to unload this tape. Call Technical Support and open
a PMR if one is not already open, to initiate the process of sending the drive with the loaded cartridge in
for recovery.
Procedure
1. Set the drive on its left side with the head and tape path facing up.
IBM Condential
Appendix I. Manual cartridge removal procedure217
