Attention:
v Do not press the microprocessor into the socket.
v Make sure that the microprocessor is oriented and aligned correctly in
the socket before you try to close the microprocessor retainer.
v Do not touch the thermal material on the bottom of the heat sink or on
top of the microprocessor. Touching the thermal material will
contaminate it.
8. Remove the microprocessor socket cover, tape, or label from the surface of the
microprocessor socket, if one is present. Store the socket cover in a safe place.
E5-x6xx
E5-x6xx v2
H
L

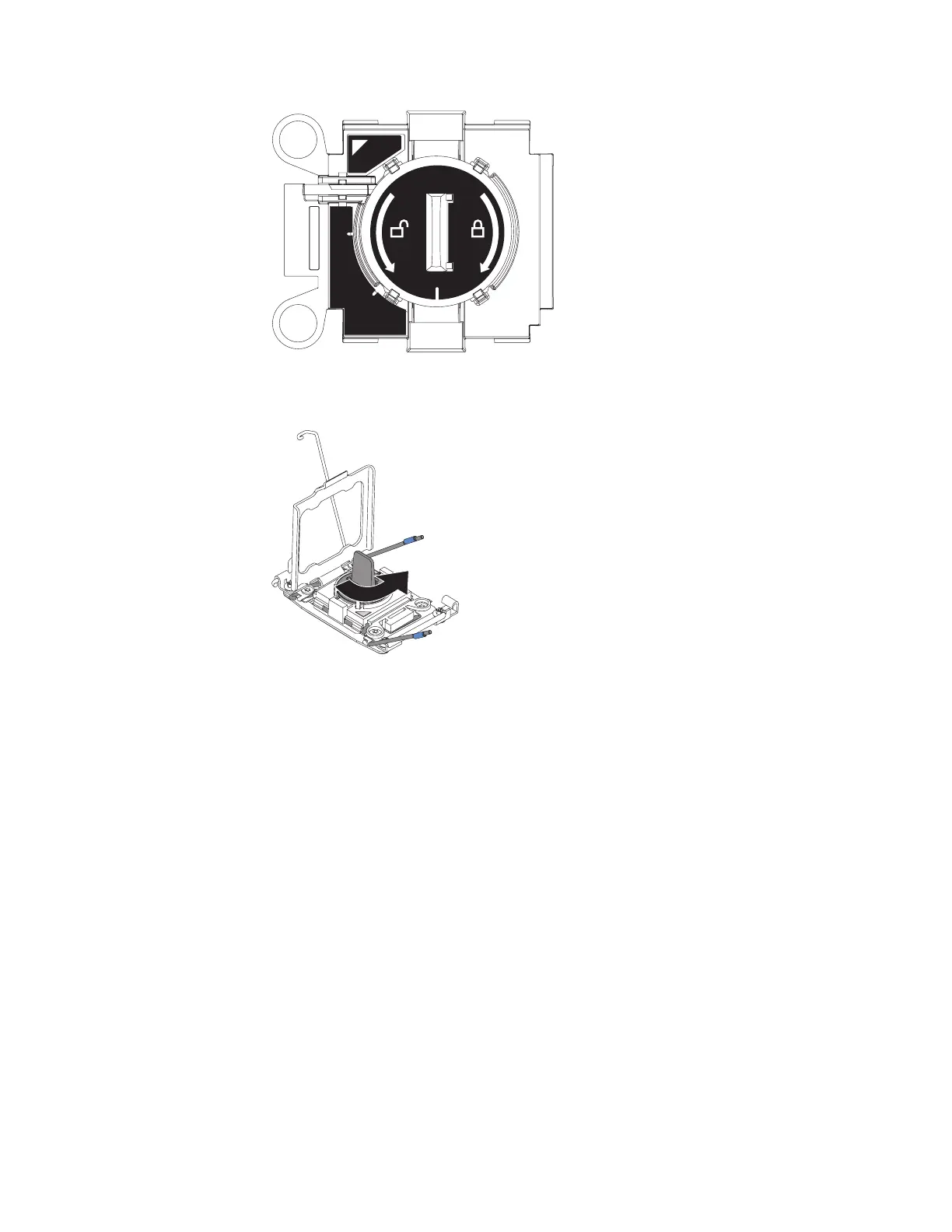

Figure 68. Installation Tool B
Figure 69. Installation tool handle adjustment
Chapter 2. Installing optional devices 89
