Cabling RAID adapter battery or flash power module
Use this information to cable the RAID adapter battery or flash power module.
The following illustration shows the internal routing and connectors for the RAID
adapter battery or flash power module cable with the RAID adapter memory
module installed.

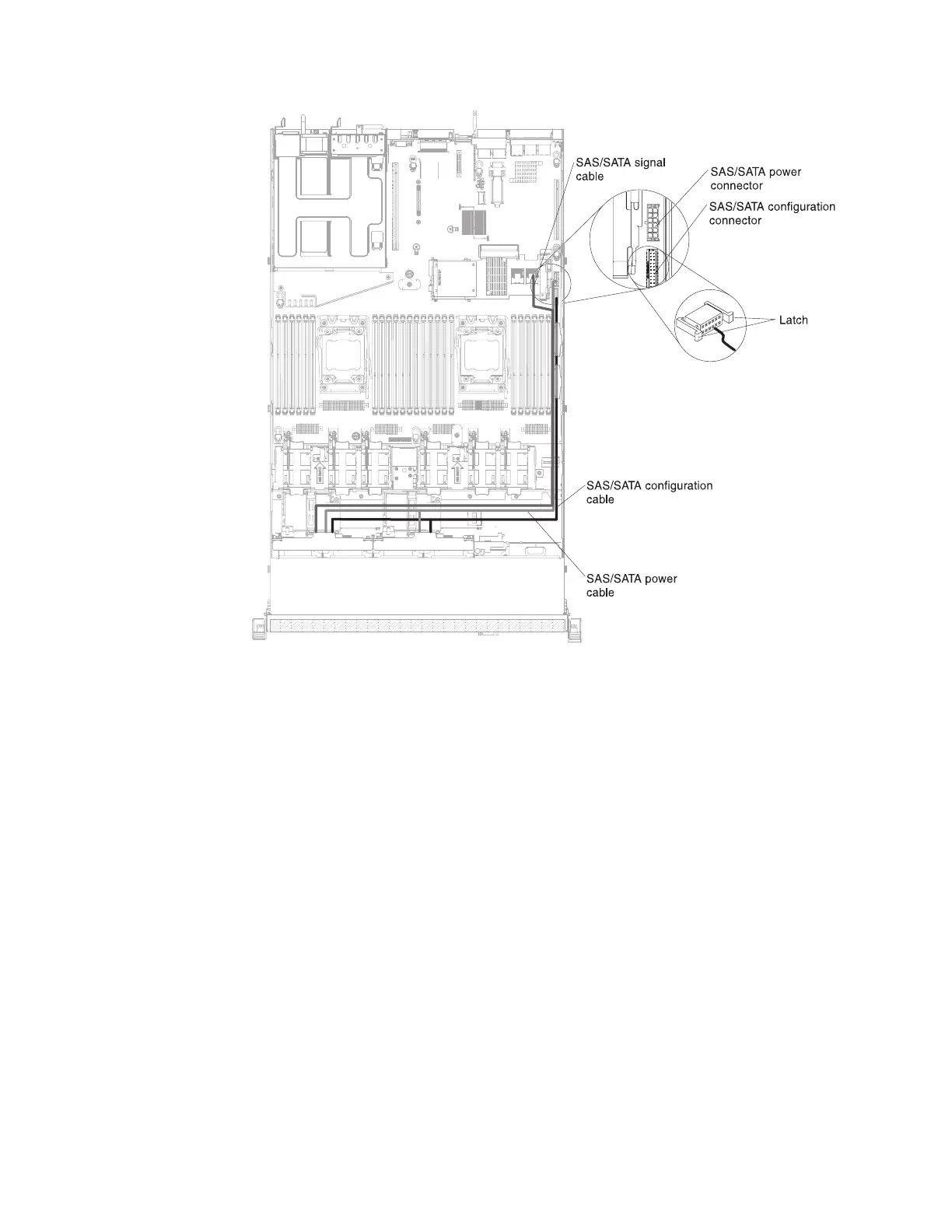

Figure 100. 2.5-inch hot-swap backplane cable connection
202 IBM System x3550 M4 Type 7914: Installation and Service Guide

IBM x3550 M4 Type 7914 Specifications

General

Form Factor	1U Rack
Memory Slots	24 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 or E5-2600 v2 series processors
Chipset	Intel C600 Series Chipset
Memory	Up to 768GB DDR3
RAID Support	RAID 0, 1, 10
Network Interface	4 x 1GbE (embedded)
Power Supply	Dual hot-swap power supplies (550W, 750W, or 900W)
Expansion Slots	Up to 3 PCIe 3.0 slots
Storage	Up to 8 x 2.5" or 4 x 3.5" hot-swap drives
