Replacing the front USB connector assembly
Use this information to replace the front USB connector assembly.
About this task
To install the front USB connector assembly, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect the power cords
and all external cables, if necessary.
3. Insert the tabs on the bottom of the front USB connector assembly into the
holes on the chassis.
4. Rotate the front USB connector assembly upward to the server.
5. Reinstall the USB cage screw to the chassis.

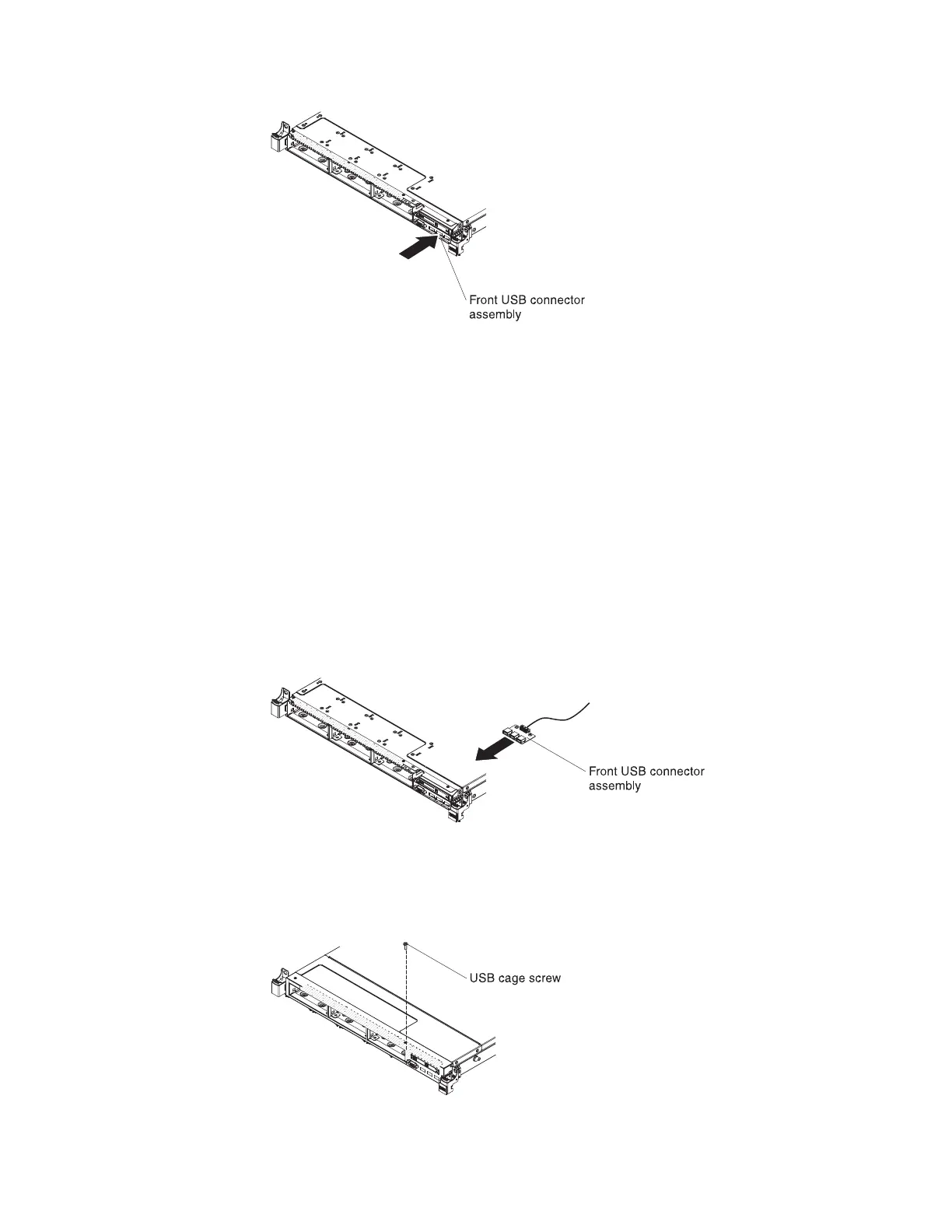

Figure 200. Front USB connector assembly removal
Figure 201. Front USB connector assembly installation
Figure 202. USB cage screw installation
Chapter 6. Removing and replacing components 303
