Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 96.
Installing a memory module
The following notes describe the types of DIMMs that the server supports and
other information that you must consider when you install DIMMs.
v When you install or remove DIMMs, the server configuration information
changes. When you restart the server, the system displays a message that
indicates that the memory configuration has changed.
v The server supports only industry-standard double-data-rate 3 (DDR3), 1066,
1333, 1600, or 1866 MHz, PC3-8500, PC3-10600, PC3-12800, or PC3-14900
registered or unbuffered, synchronous dynamic random-access memory
(SDRAM) dual inline memory modules (DIMMs) with error correcting code
(ECC). See http://www.ibm.com/systems/info/x86servers/serverproven/
compat/us/ for a list of supported memory modules for the server.
– The specifications of a DDR3 DIMM are on a label on the DIMM, in the
following format.
ggggg eRxff PC3v-wwwwwm-aa-bb-ccd
where:

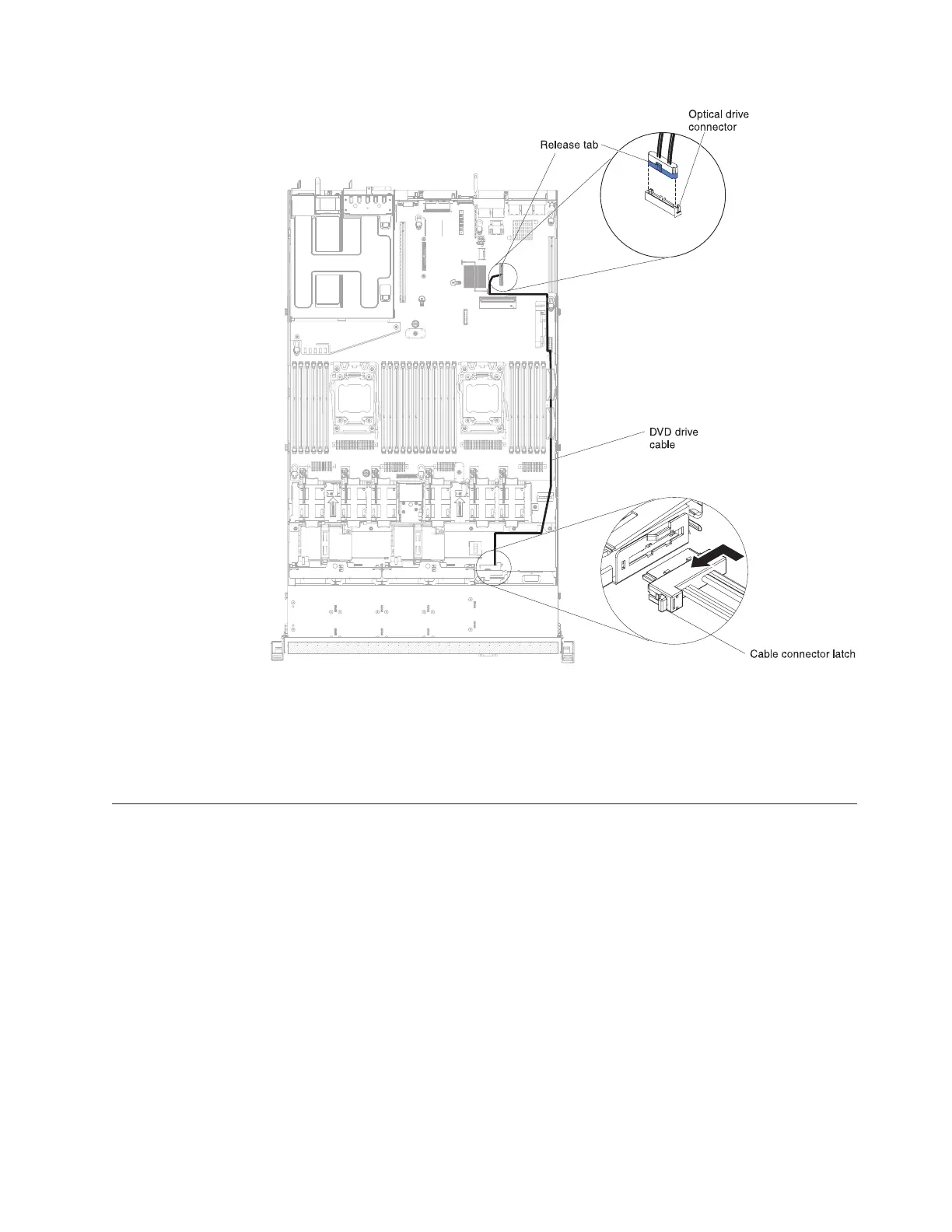

Figure 34. DVD drive cable routing
Chapter 2. Installing optional devices 49
