9. Turn on the peripheral devices and the server.
Removing a USB embedded hypervisor flash device
Use this information to remove a USB embedded hypervisor flash device.
About this task
To remove a USB hypervisor flash device, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect the power cords.
3. Remove the cover (see “Removing the cover” on page 36).
4. Remove the flash device:
a. Unlock the retention latch on the USB connector by squeezing the two
retention clips toward each other.
b. Open the retention latch.
c. Grasp the flash device and pull to remove it from the connector.
Results
If you are instructed to return the flash device, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.

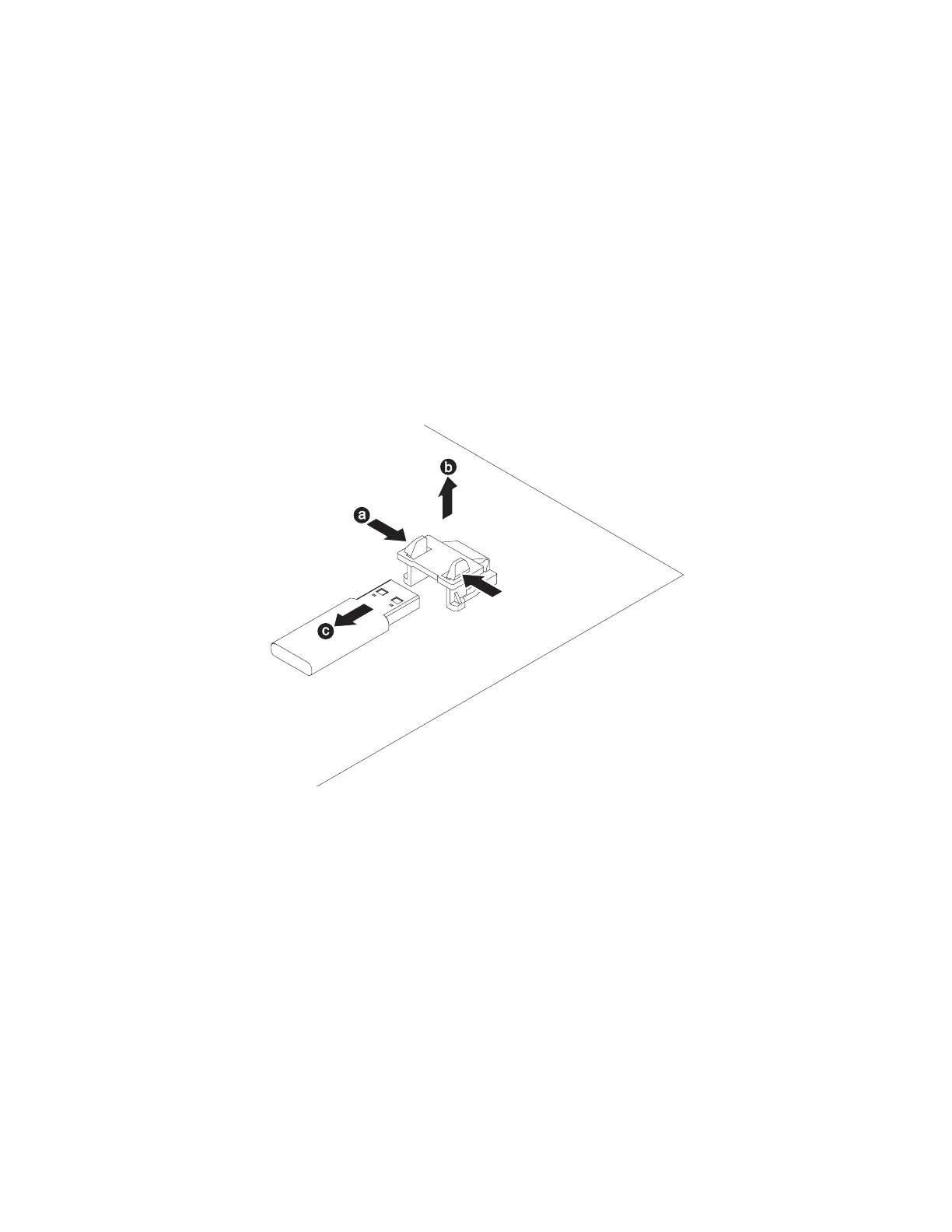

Figure 186. USB hypervisor flash device removal
Chapter 6. Removing and replacing components 293

IBM x3550 M4 Type 7914 Specifications

General

Form Factor	1U Rack
Memory Slots	24 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 or E5-2600 v2 series processors
Chipset	Intel C600 Series Chipset
Memory	Up to 768GB DDR3
RAID Support	RAID 0, 1, 10
Network Interface	4 x 1GbE (embedded)
Power Supply	Dual hot-swap power supplies (550W, 750W, or 900W)
Expansion Slots	Up to 3 PCIe 3.0 slots
Storage	Up to 8 x 2.5" or 4 x 3.5" hot-swap drives
