IBM x3550 M4 Type 7914 User Manual

Removing a RAID adapter battery or flash power module holder
Use this information to remove a RAID adapter battery or flash power module
holder.
About this task
If a RAID adapter battery or flash power module is installed remotely near the fan
cage and you need to replace it, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect all power cords;
then, remove the cover (see “Removing the cover” on page 36).
3. Remove the RAID adapter battery or flash power module (see “Removing a
RAID adapter battery or flash power module” on page 212).
4. Loosen the two screws from the system tray.
5. Lift the holder up to remove it from the system tray.
Results
If you are instructed to return the RAID adapter battery or flash power module
holder, follow all packaging instructions, and use any packaging materials for
shipping that are supplied to you.

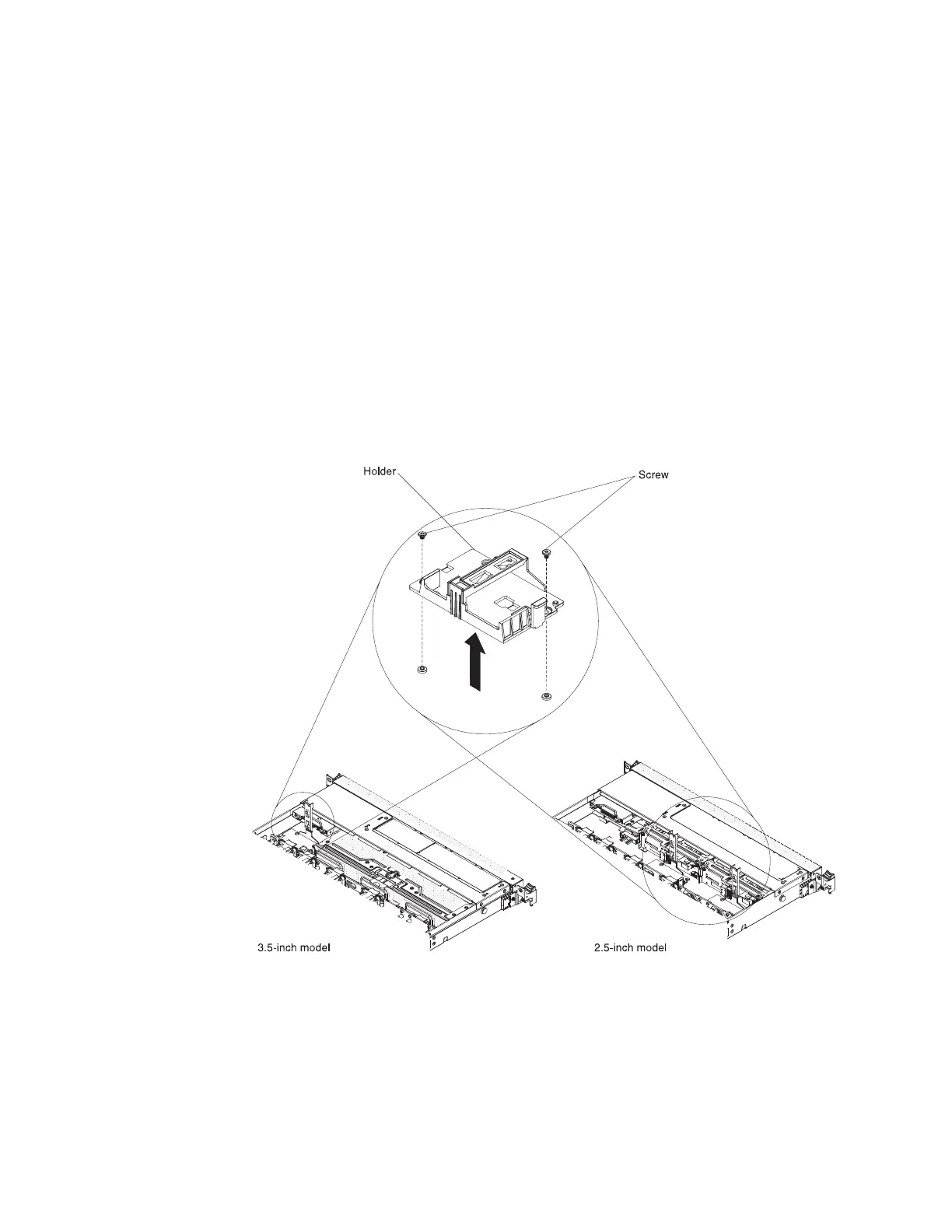

Figure 113. RAID adapter battery or flash power module holder removal
216 IBM System x3550 M4 Type 7914: Installation and Service Guide

IBM x3550 M4 Type 7914 Specifications

General

Form Factor	1U Rack
Memory Slots	24 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 or E5-2600 v2 series processors
Chipset	Intel C600 Series Chipset
Memory	Up to 768GB DDR3
RAID Support	RAID 0, 1, 10
Network Interface	4 x 1GbE (embedded)
Power Supply	Dual hot-swap power supplies (550W, 750W, or 900W)
Expansion Slots	Up to 3 PCIe 3.0 slots
Storage	Up to 8 x 2.5" or 4 x 3.5" hot-swap drives
