Note: The positioning of the battery or flash power module depends on
the type of the battery or flash power module that you install.
c. Connect the other end of the cable to the battery or flash power module.
d. Lower and press down on the retention clip until it snaps in place to hold
the battery or flash power module firmly in place.
9. Reinstall the cover (see “Replacing the cover” on page 209).
10. Slide the server into the rack.
11. Reconnect the power cords and all external cables, and turn on the server and
peripheral devices.

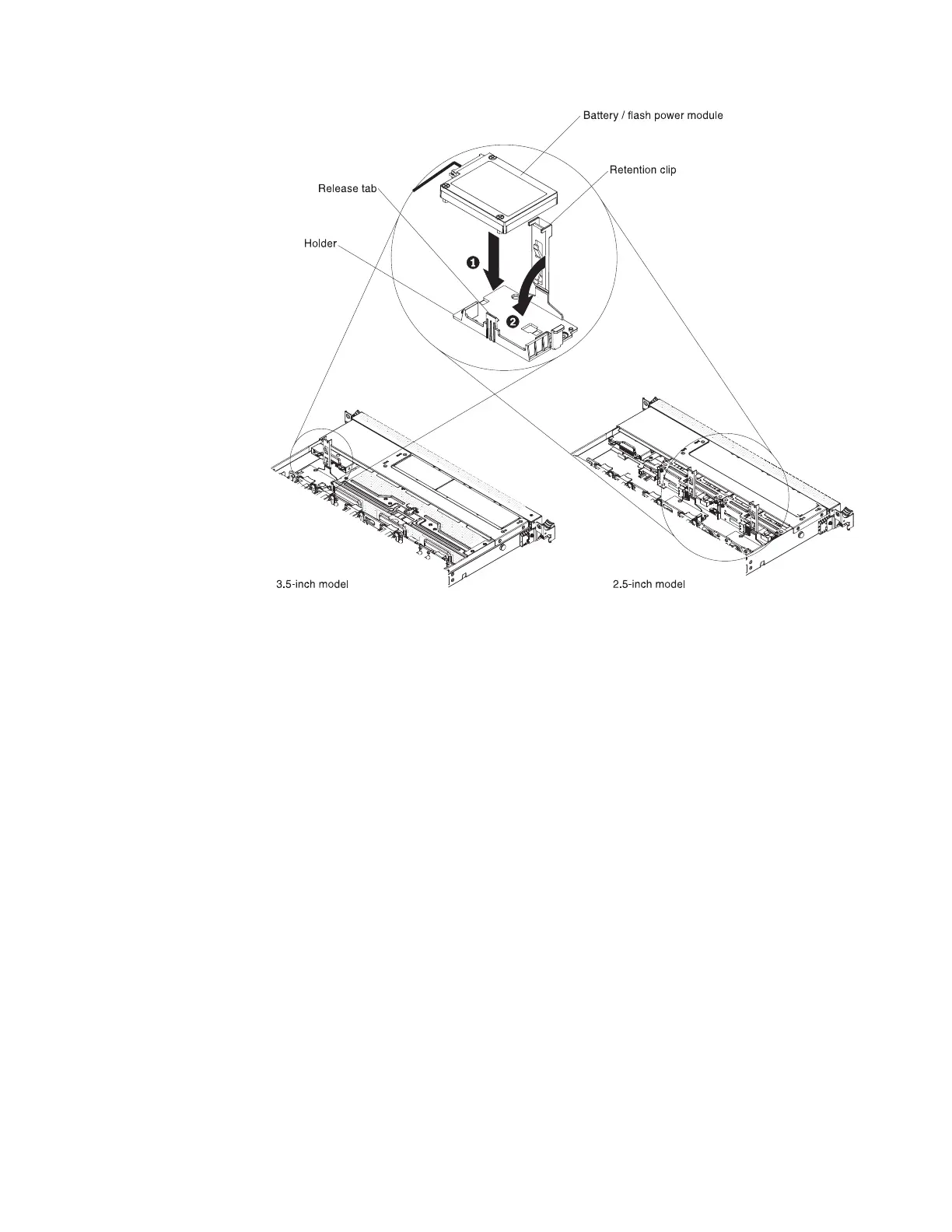

Figure 112. RAID adapter battery or flash power module installation
Chapter 6. Removing and replacing components 215
