Cabling SAS/SATA ServeRAID Controller
Use this information to cable the SAS/SATA ServeRAID controller.
The following illustrations show the internal routing and connectors for the
SAS/SATA signal cables.
Notes:
1. To connect the SAS/SATA signal cables, make sure that you first connect the
signal cable, and then the power cable and configuration cable.
2. To disconnect the SAS/SATA signal cables, make sure that you first disconnect
the power cable, and then the signal cable and configuration cable.

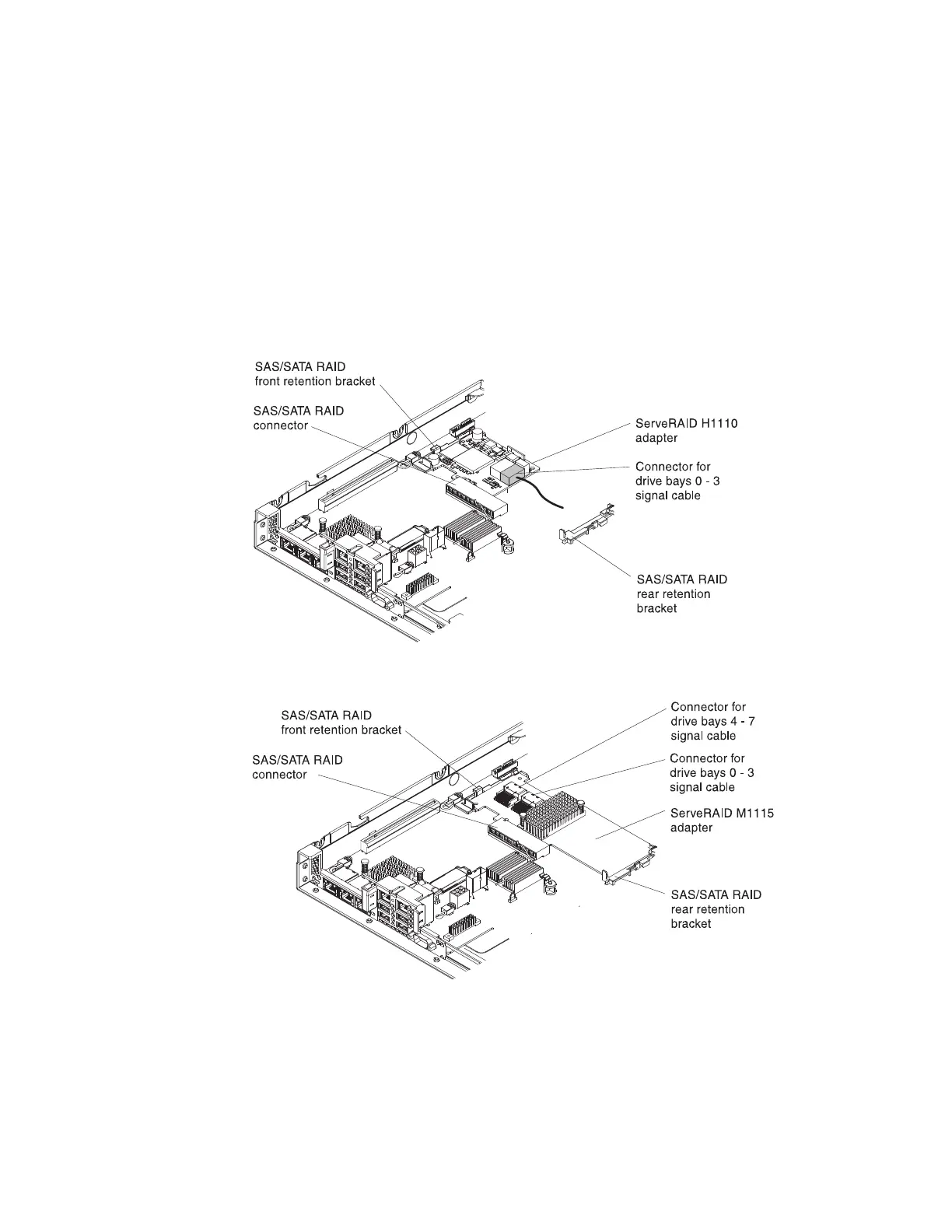

Figure 95. ServeRAID-H1110 cable connection
Figure 96. ServeRAID-M1115 cable connection
198 IBM System x3550 M4 Type 7914: Installation and Service Guide

IBM x3550 M4 Type 7914 Specifications

General

Form Factor	1U Rack
Memory Slots	24 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 or E5-2600 v2 series processors
Chipset	Intel C600 Series Chipset
Memory	Up to 768GB DDR3
RAID Support	RAID 0, 1, 10
Network Interface	4 x 1GbE (embedded)
Power Supply	Dual hot-swap power supplies (550W, 750W, or 900W)
Expansion Slots	Up to 3 PCIe 3.0 slots
Storage	Up to 8 x 2.5" or 4 x 3.5" hot-swap drives
