The following illustration shows the internal routing and connectors for the
SAS/SATA signal, power and configuration cables with the SAS/SATA adapter
installed.

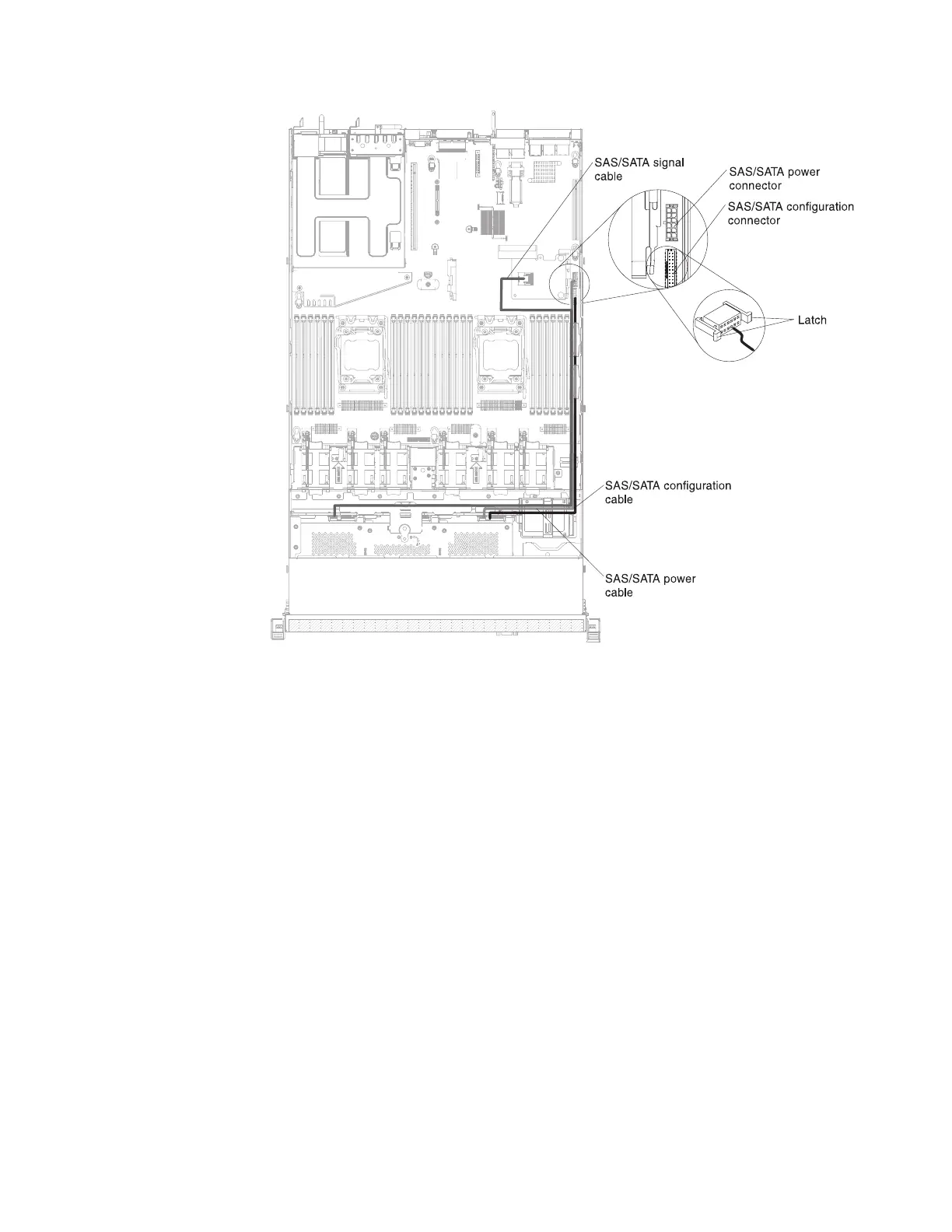

Figure 99. 3.5-inch hot-swap backplane cable connection
Chapter 6. Removing and replacing components 201
