IBM x3550 M4 Type 7914 User Manual

5. Slide the drive retention clip from the side of the drive. Save the clip to use
when you install the replacement drive or replace the DVD drive filler panel.
6. Attach the drive retention clip to the side of the DVD drive filler panel that you
removed in step 4 on page 228.
7. Slide the DVD drive filler panel into the DVD drive bay until the DVD drive
filler panel clicks into place.

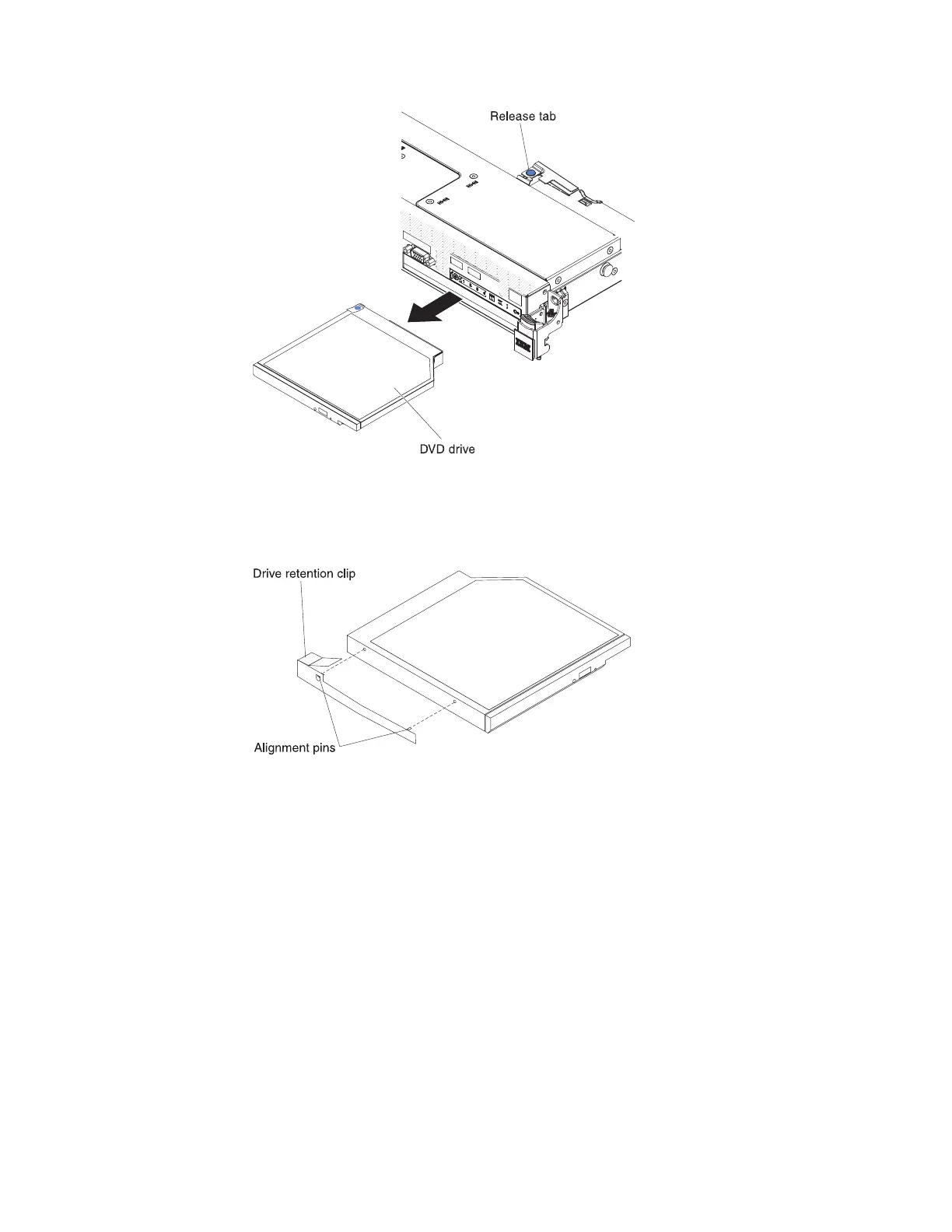

Figure 125. DVD drive removal
Figure 126. DVD drive retention clip removal
226 IBM System x3550 M4 Type 7914: Installation and Service Guide
