Attention: When you install an adapter, make sure that the adapter is
correctly seated in the riser-card assembly and that the riser-card assembly is
securely seated in the riser-card connector on the system board before you
turn on the server. An incorrectly seated adapter might cause damage to the
system board, the riser-card assembly, or the adapter.
6. Install the PCI riser-card assembly in the server (see “Replacing a PCI
riser-card assembly” on page 245).
7. Connect the cable to the newly-installed adapter.
Note: You might need to remove the blue latch from PCI riser-card assembly
2 to easily connect the cables.
8. Perform any configuration tasks that are required for the adapter.
9. Reinstall the cover (see “Replacing the cover” on page 209).
10. Slide the server into the rack.
11. Reconnect the power cords and any cables that you removed.
12. Turn on the peripheral devices and the server.

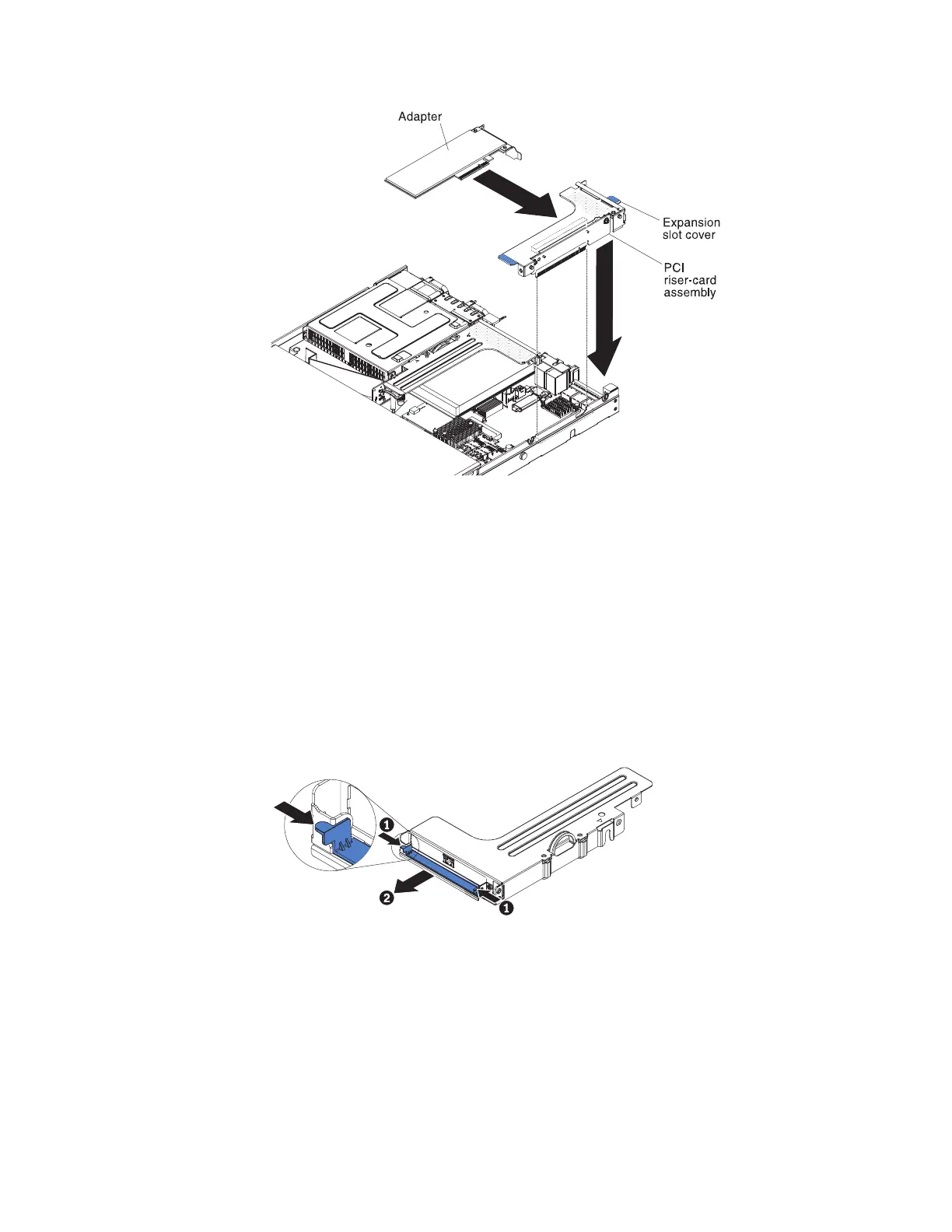

Figure 148. Adapter installation
Figure 149. Latch removal
Chapter 6. Removing and replacing components 253
