b. ServeRAID M1115 adapter: Take the signal cable that is attached to the
drive backplane for drive bays 4 through 7 and connect it to the
ServeRAID adapter connector for drive bays 4 through 7 (port 1). Connect
the other signal cable that is attached to the drive backplane for drive bays
0 through 3 and connect it to the other connector (port 0) on the adapter.
c. ServeRAID M5110 adapter: Take the signal cable that is attached to the
drive backplane for drive bays 4 through 7 and connect it to the
ServeRAID adapter connector for drive bays 4 through 7 (port 1). Connect
the other signal cable that is attached to the drive backplane for drive bays
0 through 3 and connect it to the other connector (port 0) on the adapter.
10. Reconnect the power cords and any cables that you removed.
11. Replace PCI riser-card assembly 1 if you have removed it earlier (see
“Replacing a PCI riser-card assembly” on page 245).
12. Replace the cover (see “Replacing the cover” on page 209).
13. Turn on the peripheral devices and the server.

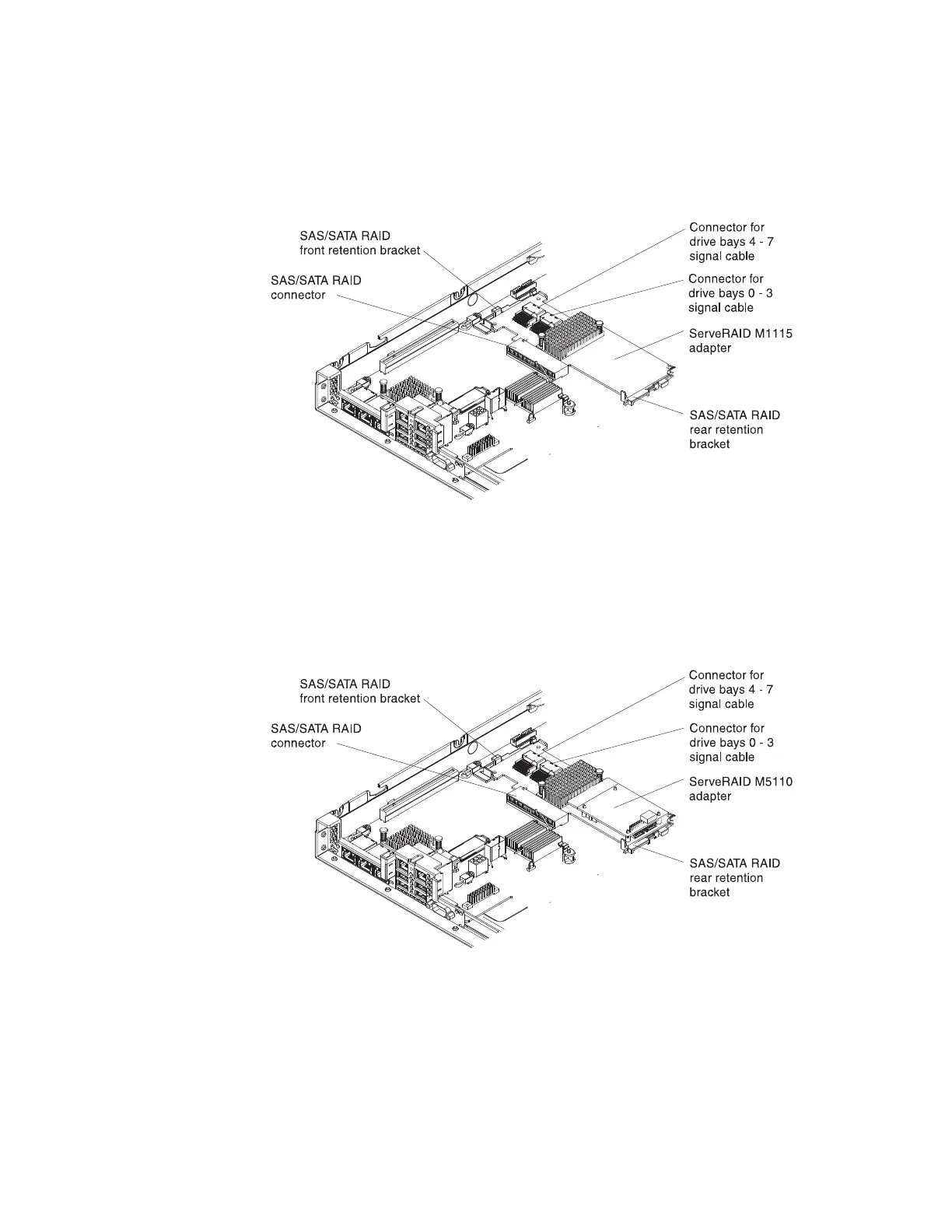

Figure 155. ServeRAID M1115 adapter cable routing
Figure 156. ServeRAID M5110 adapter cable routing
Chapter 6. Removing and replacing components 259
