8. Press the adapter firmly until the pin, and retention brackets engage the

adapter. Make sure the adapter is securely seated on the connector on the

system board.

Attention: Make sure the port connectors on the adapter are aligned

properly with the chassis on the rear of the server. An incorrectly seated

adapter might cause damage to the system board or the adapter.

9. Fasten the thumbscrew on the rear side of the chassis.

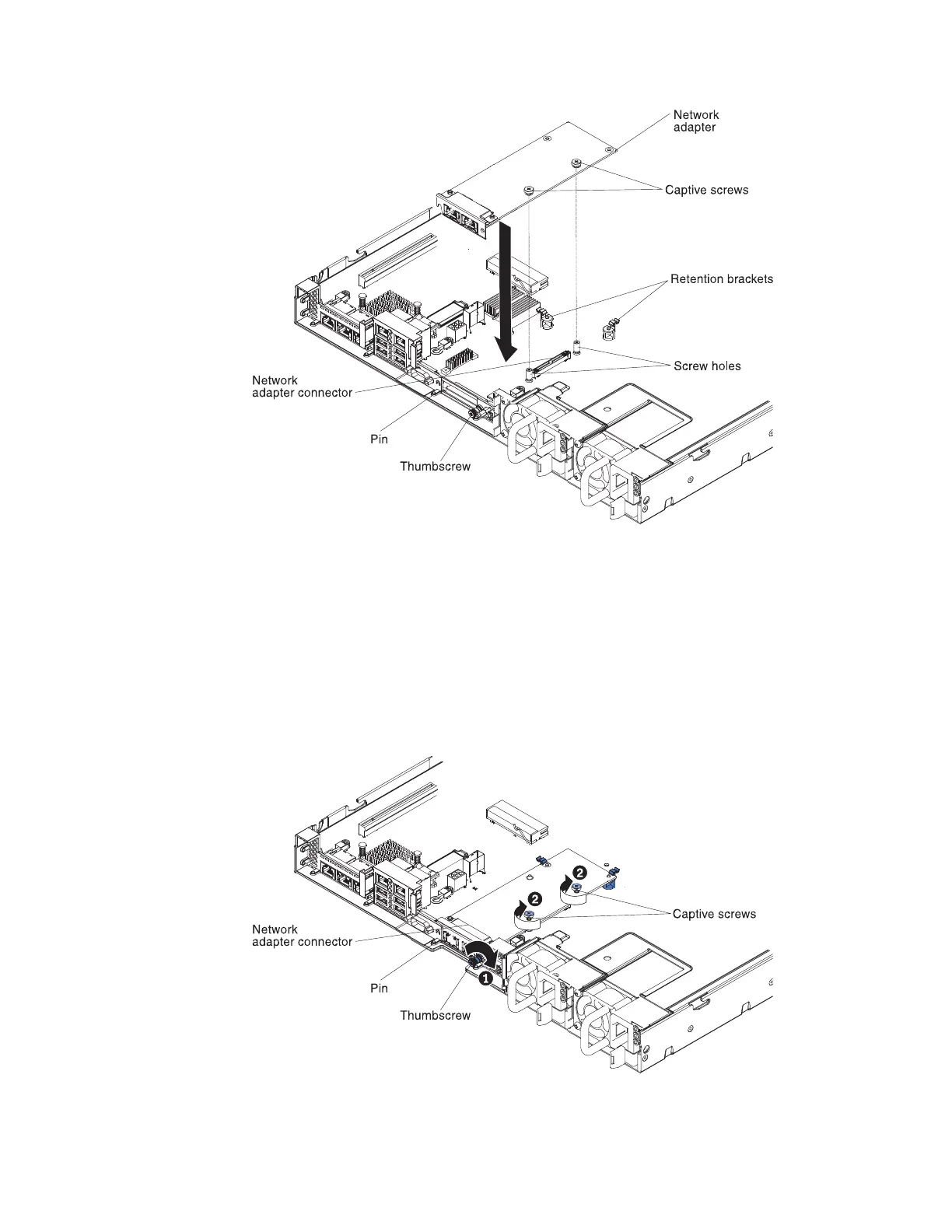

Figure 162. Network adapter installation

Figure 163. Screws engagement
