b. Lift the hard disk drive backplane up to remove it from the server.
If you would like to remove the 2.5-inch drive backplane.
a. Lift the hard disk drive backplane up to remove it from the server.

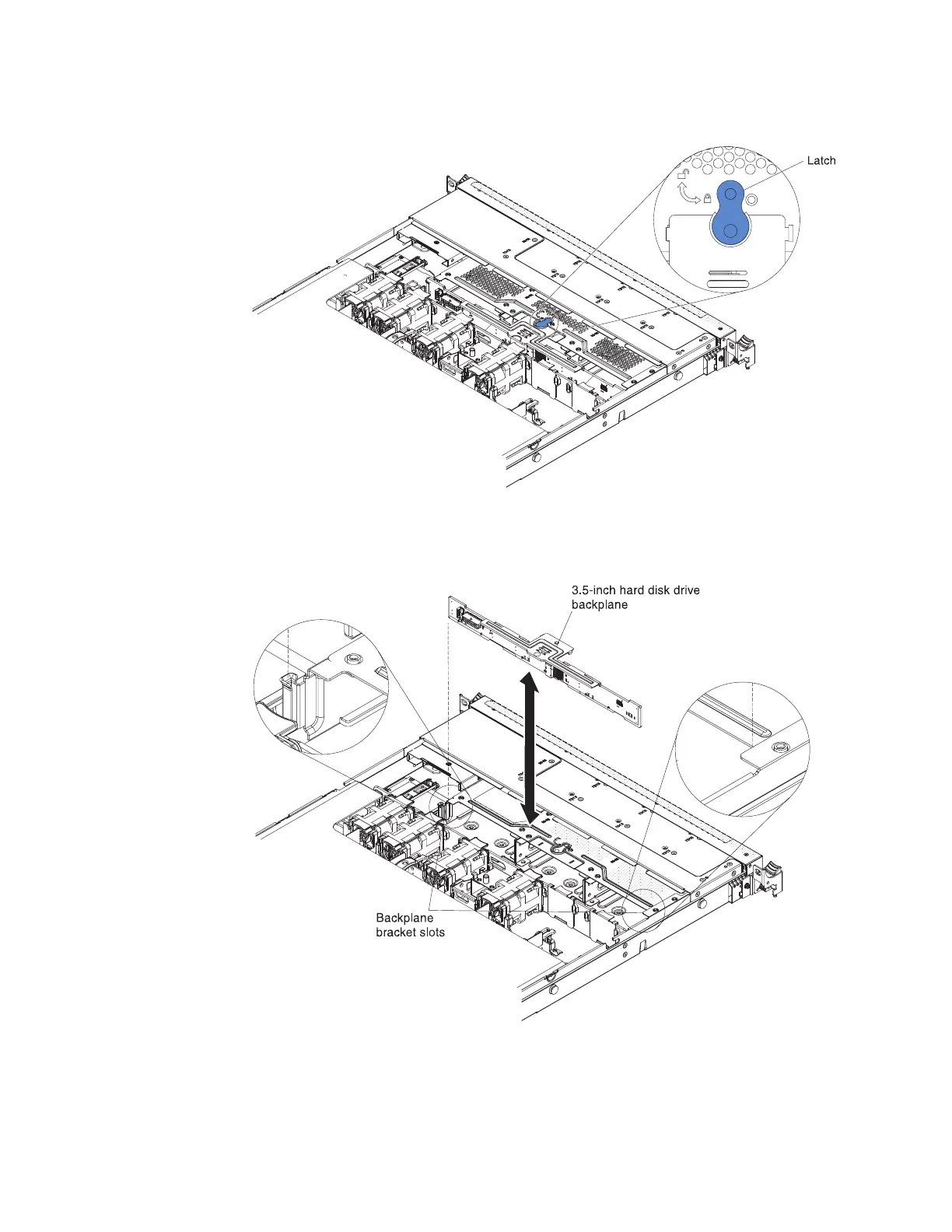

Figure 176. Latch adjustment
Figure 177. Backplane removal
286 IBM System x3550 M4 Type 7914: Installation and Service Guide
