is fully seated.
b. Adjust the latch to the locked position.
If you would like to install the 2.5-inch drive backplane.

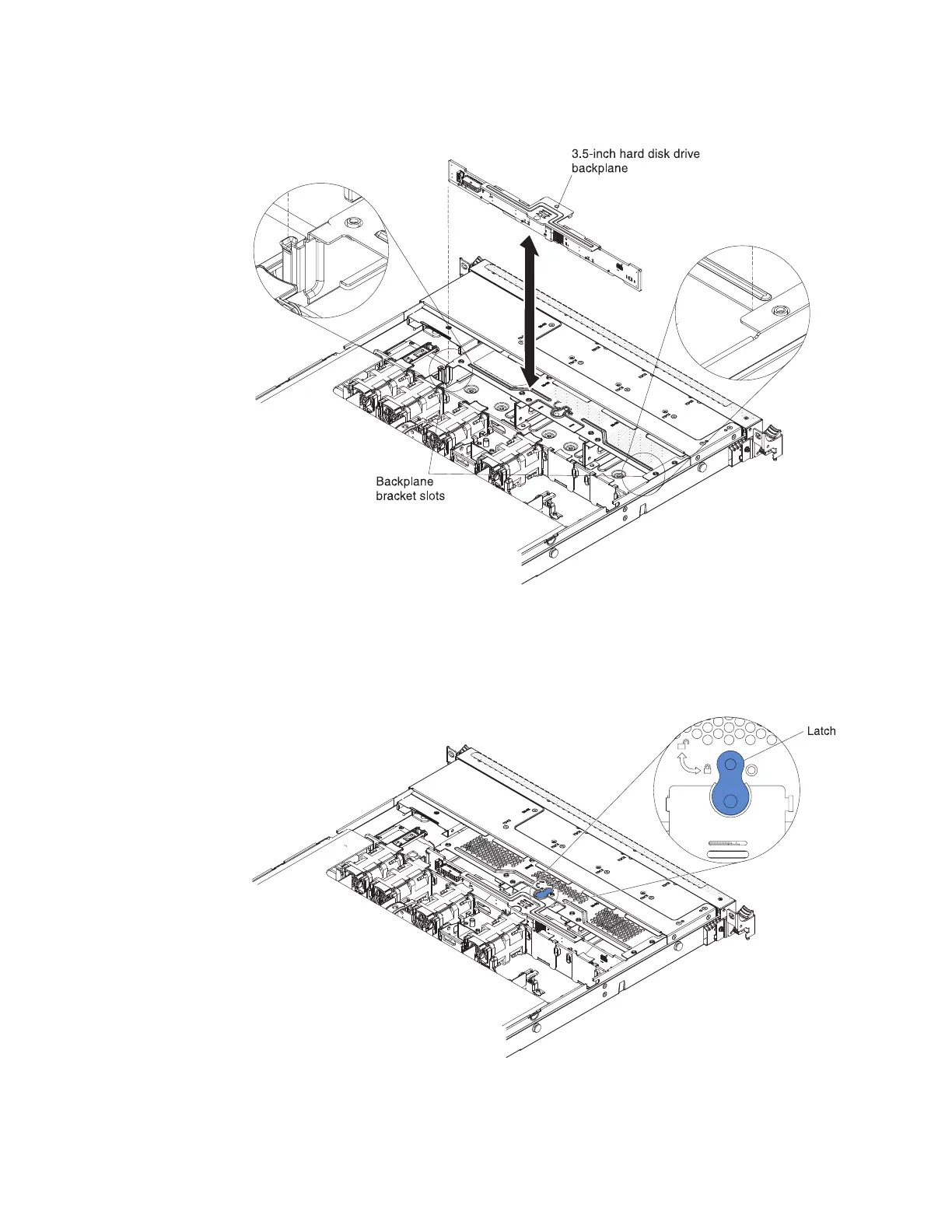

Figure 179. Backplane installation
Figure 180. Latch adjustment
288 IBM System x3550 M4 Type 7914: Installation and Service Guide
