a. Tilt the battery so that you can insert it into the socket on the side opposite
the battery clip.
b. Press the battery down into the socket until it clicks into place. Make sure
that the battery clip holds the battery securely.
c. If you removed a rubber cover from the battery holder, use your fingers to
install the battery cover on top of the battery connector.
7. Reinstall the PCI riser-card assembly 2 (see “Replacing a PCI riser-card
assembly” on page 245), if necessary.
8. Install the cover (see “Replacing the cover” on page 209).
9. Slide the server into the rack.
10. Reconnect the external cables; then, reconnect the power cords and turn on
the peripheral devices and the server.
11. Start the Setup utility and reset the configuration.
v Set the system date and time.
v Set the power-on password.
v Reconfigure the server.
See “Using the Setup utility” on page 106 for details.

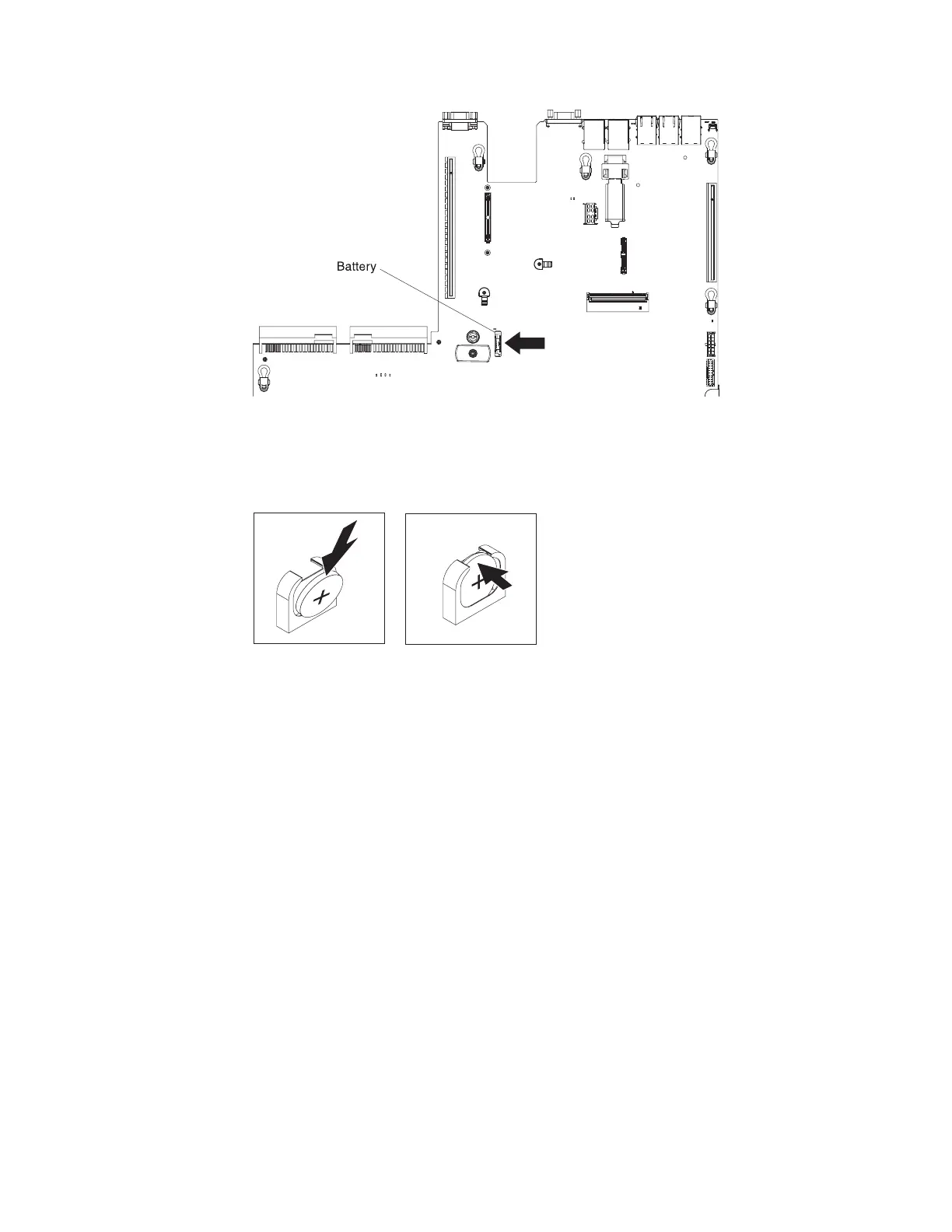

Figure 190. System battery installation
Figure 191. System battery installation
298 IBM System x3550 M4 Type 7914: Installation and Service Guide
