4. Reinstall the video connector assembly screws.
5. Reconnect the front video cable to the front video connector on the system
board.
6. Install the cover (see “Replacing the cover” on page 209).
7. Reconnect the power cords and any cables that you removed.
8. Slide the server into the rack.
9. Turn on the peripheral devices and the server.

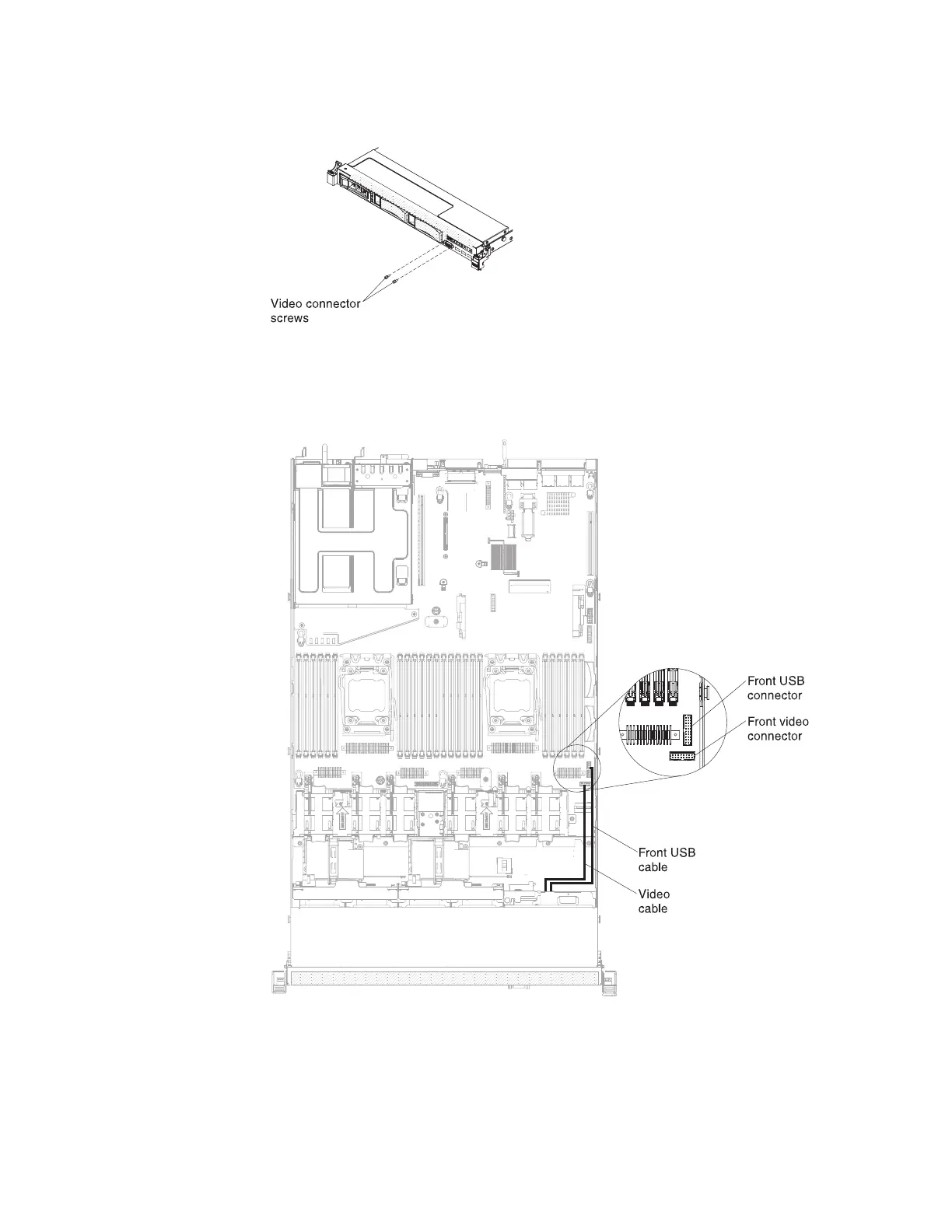

Figure 208. Video connector assembly screws installation
Figure 209. Front USB and video cables connection
Chapter 6. Removing and replacing components 307
