v If using Installation Tool B,1lift the interlock latch and hold it up
while you2twist the microprocessor installation tool handle
counterclockwise to the open position, and then release the interlock

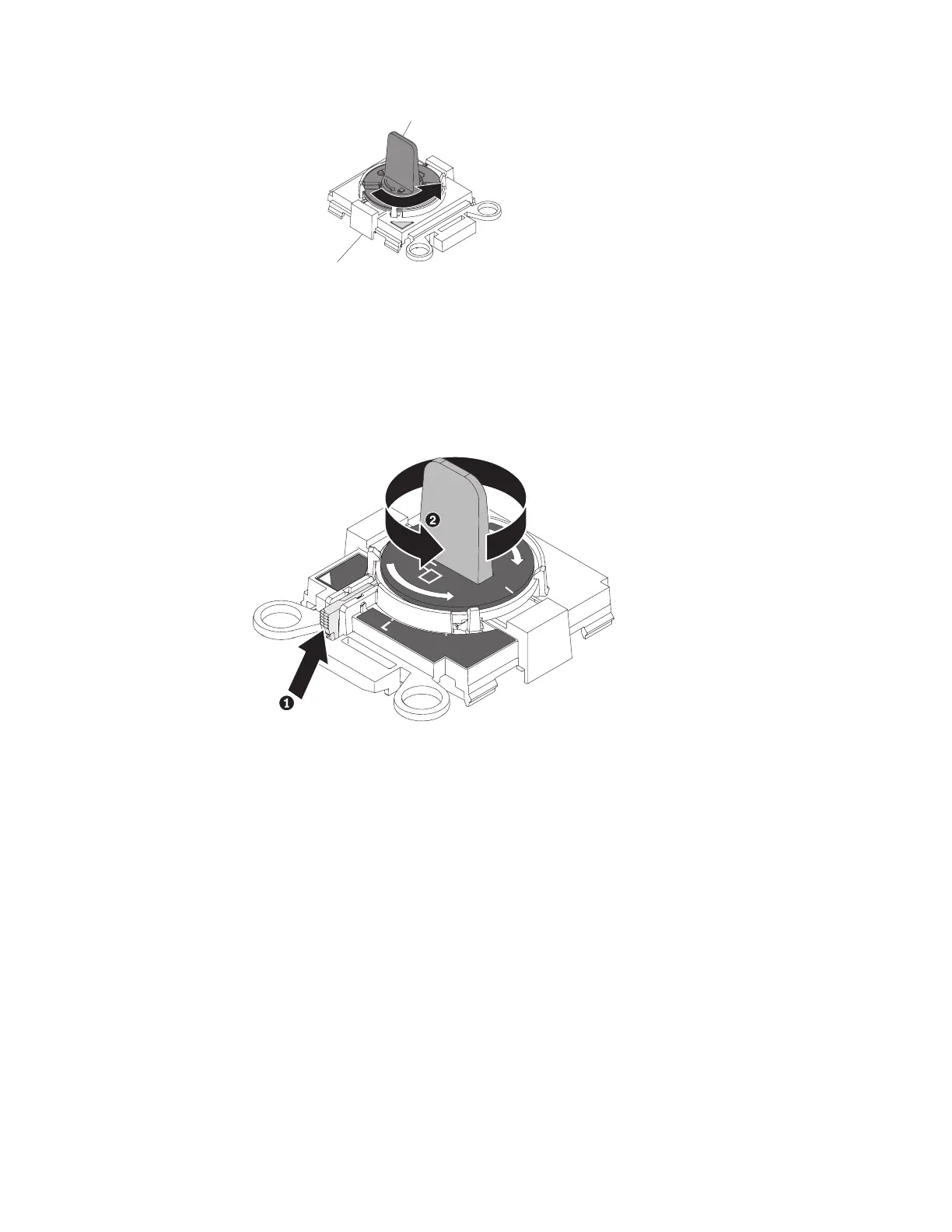

latch. The following illustration of the installation tool shows the
location of the interlock latch and counterclockwise rotation of the
handle before loading the microprocessor.
b. Align the installation tool with the screws, as shown in the following
graphic, and lower the installation tool on the microprocessor. The
installation tool rests flush on the socket only when it is aligned correctly.
Handle
Installation tool
Figure 216. Installation tool handle adjustment
H
Figure 217. Installation tool handle adjustment
314 IBM System x3550 M4 Type 7914: Installation and Service Guide

IBM x3550 M4 Type 7914 Specifications

General

Form Factor	1U Rack
Memory Slots	24 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 or E5-2600 v2 series processors
Chipset	Intel C600 Series Chipset
Memory	Up to 768GB DDR3
RAID Support	RAID 0, 1, 10
Network Interface	4 x 1GbE (embedded)
Power Supply	Dual hot-swap power supplies (550W, 750W, or 900W)
Expansion Slots	Up to 3 PCIe 3.0 slots
Storage	Up to 8 x 2.5" or 4 x 3.5" hot-swap drives
