v To order an additional optional microprocessor, contact your IBM sales
representative or IBM reseller.
v There are two types of microprocessor installation tools. The tools are similar in
function and design, however Tool A has one setting for installing one size of
microprocessor, and supports the following families of microprocessors: E5-26xx,
E5-46xx. Installation Tool B has two settings for installing two different sizes of
microprocessors. The settings that are marked on Tool B are “L” for smaller low
core microprocessors, and “H” for larger high core microprocessors. Installation
Tool B supports the following families of microprocessors: E5-26xx, E5-46xx,
E5-26xx v2, E5-46xx v2.

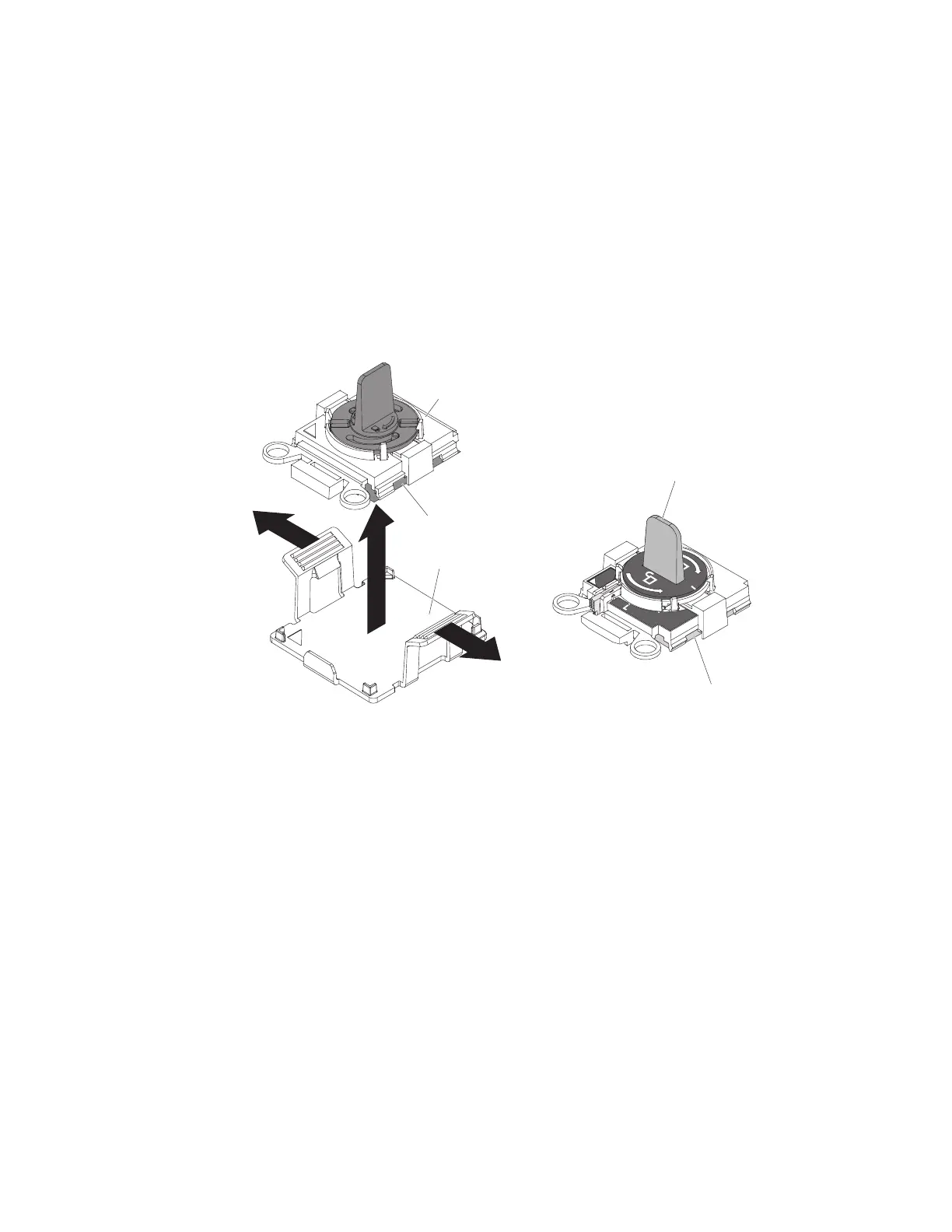

Microprocessor Installation Tools A and B are shown in the following
illustration.
To replace a microprocessor and heat sink, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect the power cords
and all external cables.
Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these devices,
see “Handling static-sensitive devices” on page 36.
3. Remove the cover (see “Removing the cover” on page 36).
4. Remove the air baffle (see “Removing the air baffle” on page 37).
5. Rotate the heat sink retention module release lever to the open position.
H
Microprocessor Installation Tool A Microprocessor Installation Tool B
Installation tool
Microprocessor
Installation tool
Microprocessor
Cover
Figure 221. Microprocessor installation tools
318 IBM System x3550 M4 Type 7914: Installation and Service Guide
