IBM x3550 M4 Type 7914 User Manual

a. Remove the plastic protective cover from the bottom of the heat sink.
b. Position the heat sink over the microprocessor. The heat sink is keyed to
assist with proper alignment.
c. Align and place the heat sink on top of the microprocessor in the retention
bracket, thermal material side down.
d. Press firmly on the heat sink.
e. Rotate the heat sink retention module release lever to the closed position
and hook it underneath the lock tab.
11. Reinstall the air baffle (see “Replacing the air baffle” on page 211).
12. Install the cover (see “Replacing the cover” on page 209).
13. Slide the server into the rack.
14. Reconnect the power cords and any cables that you removed.
15. Turn on the peripheral devices and the server.

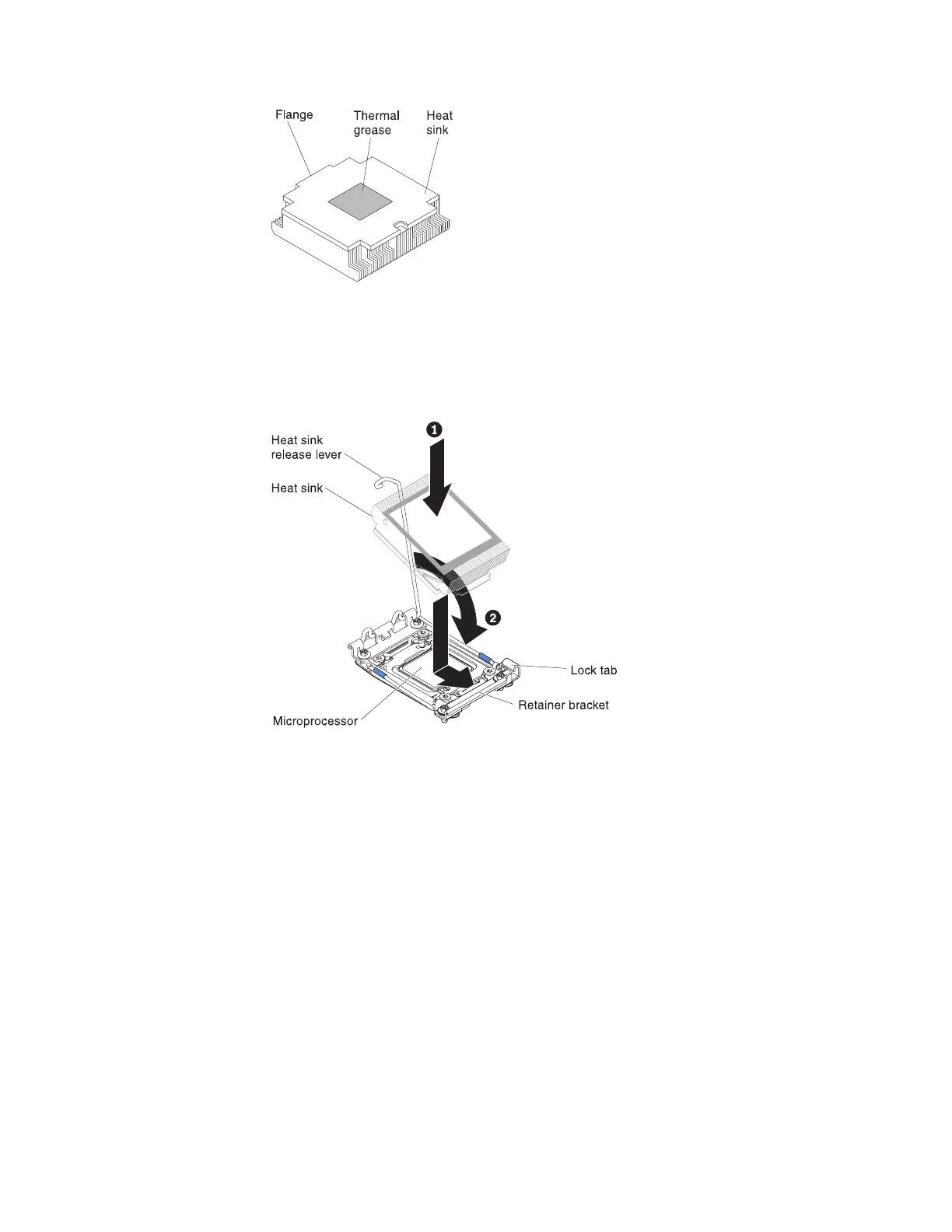

Figure 230. Thermal grease
Figure 231. Heat sink installation
Chapter 6. Removing and replacing components 323

IBM x3550 M4 Type 7914 Specifications

General

Form Factor	1U Rack
Memory Slots	24 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 or E5-2600 v2 series processors
Chipset	Intel C600 Series Chipset
Memory	Up to 768GB DDR3
RAID Support	RAID 0, 1, 10
Network Interface	4 x 1GbE (embedded)
Power Supply	Dual hot-swap power supplies (550W, 750W, or 900W)
Expansion Slots	Up to 3 PCIe 3.0 slots
Storage	Up to 8 x 2.5" or 4 x 3.5" hot-swap drives
