17. Grasp the system board handles and slide the system board toward the front
of the server until it stops.
Note: Make sure that the system board disengage from all system-board
standoffs.
18. Grasp the system board handles and lift up the system board and carefully
remove it from the server, being careful not to damage any surrounding
components.

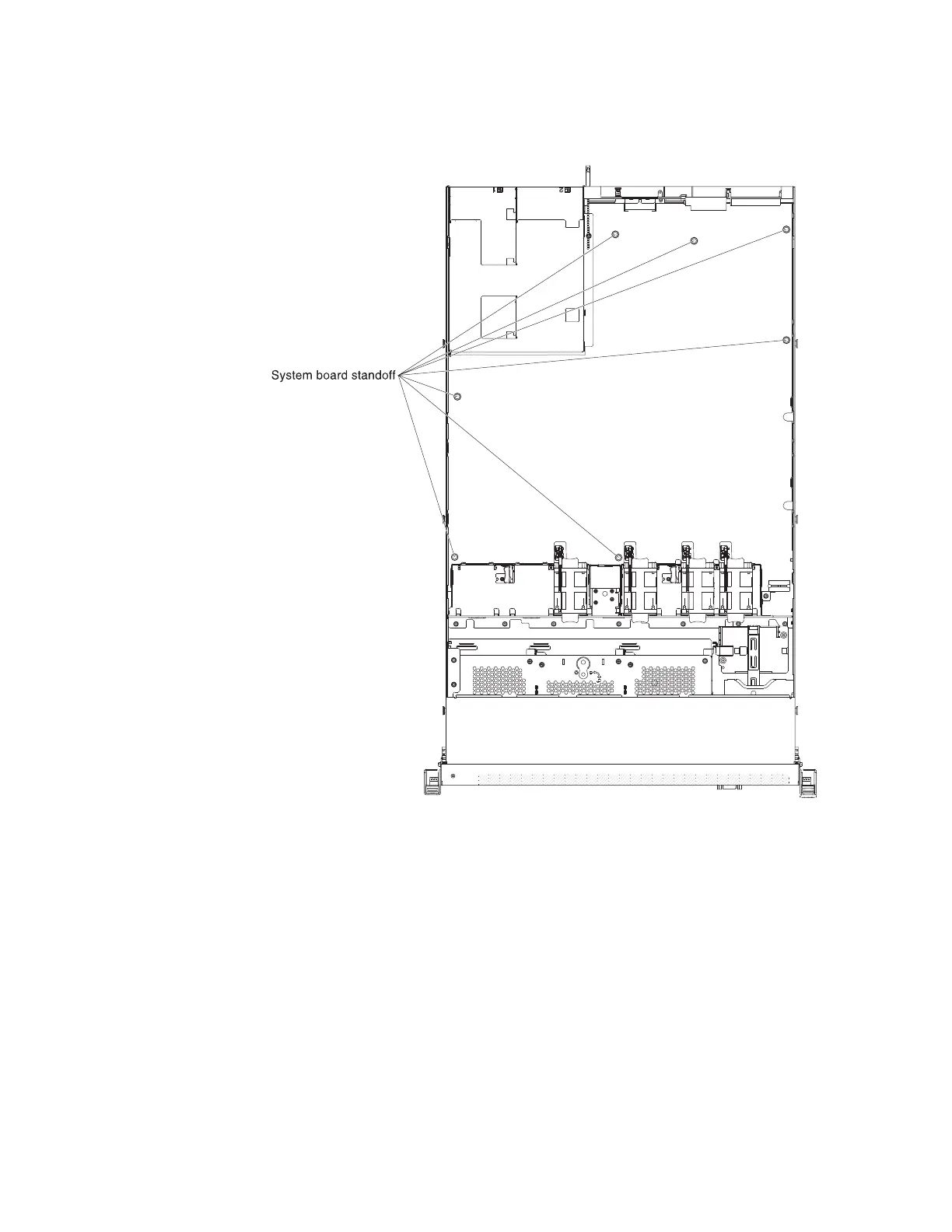

Figure 238. System-board standoffs
Chapter 6. Removing and replacing components 329
