Note: The positioning of the battery or flash power module depends on the
type of the battery or flash power module that you install.
c. Connect the other end of the cable to the battery or flash power module.
d. Lower and press down on the retention clip until it snaps in place to hold
the battery or flash power module firmly in place.
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 96.

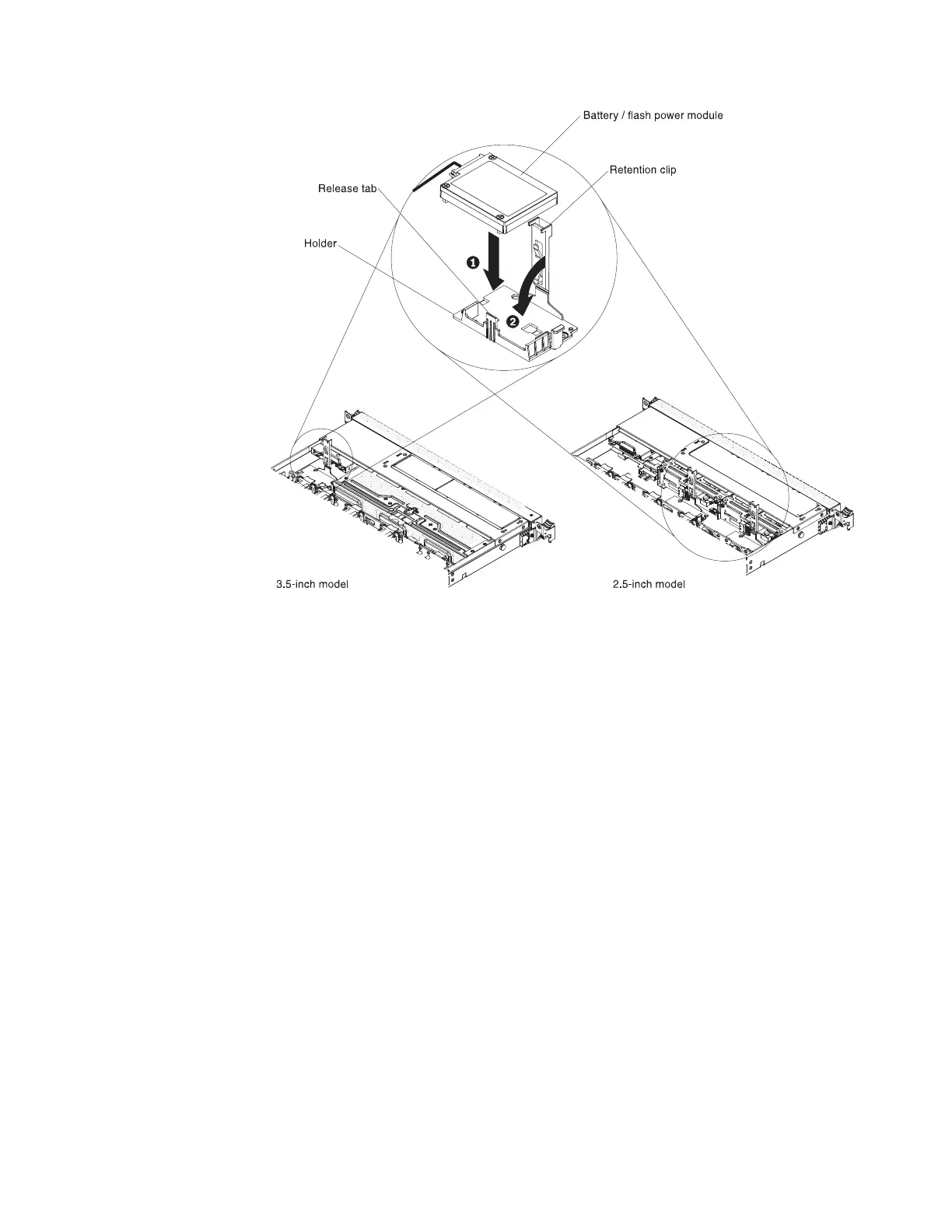

Figure 49. RAID adapter battery or flash power module installation
Chapter 2. Installing optional devices 67

IBM x3550 M4 Type 7914 Specifications

General

Form Factor	1U Rack
Memory Slots	24 DIMM slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 or E5-2600 v2 series processors
Chipset	Intel C600 Series Chipset
Memory	Up to 768GB DDR3
RAID Support	RAID 0, 1, 10
Network Interface	4 x 1GbE (embedded)
Power Supply	Dual hot-swap power supplies (550W, 750W, or 900W)
Expansion Slots	Up to 3 PCIe 3.0 slots
Storage	Up to 8 x 2.5" or 4 x 3.5" hot-swap drives
