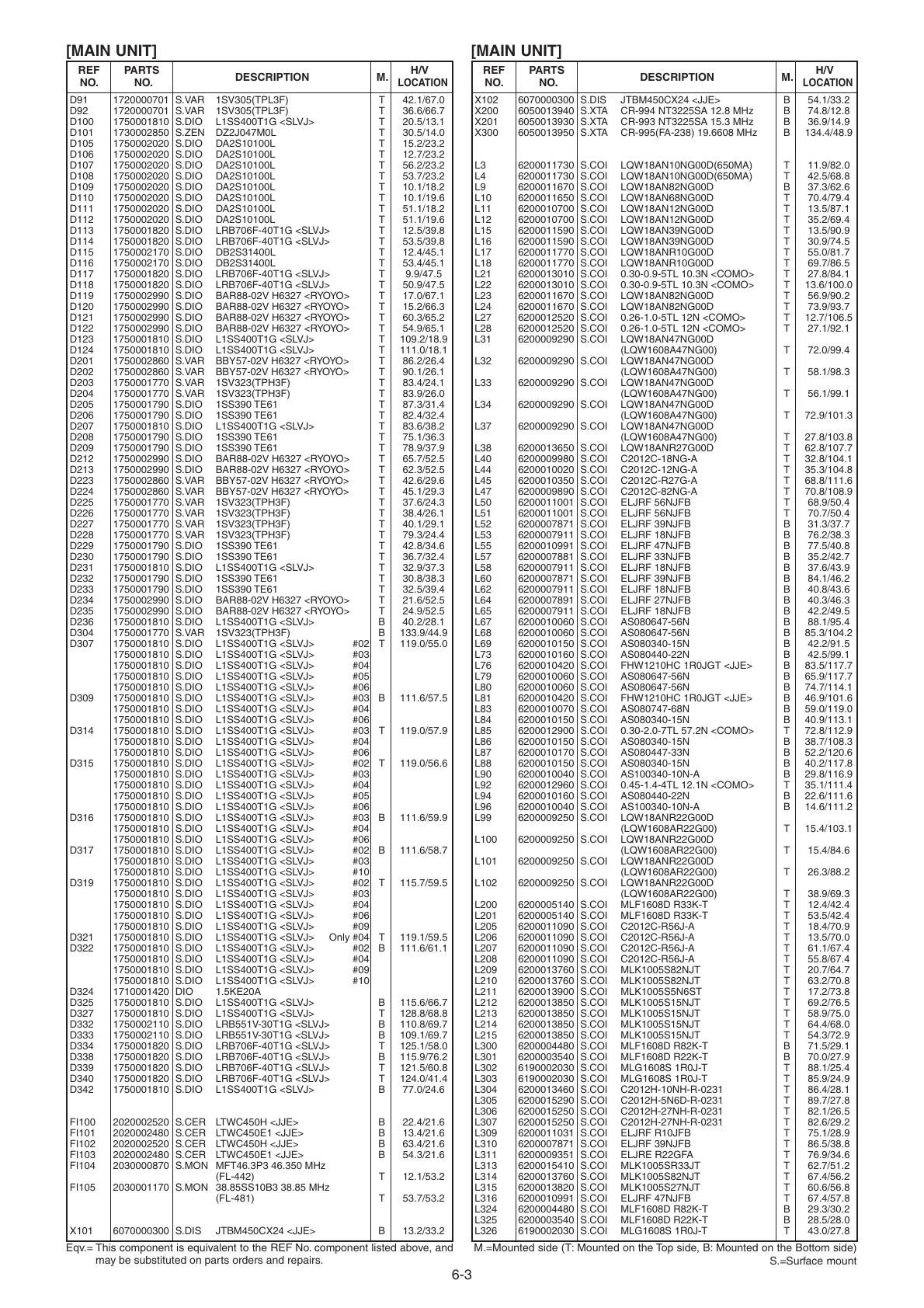

Icom ic-2730A

6-3
Eqv.= This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
X102 6070000300 S.DIS JTBM450CX24 <JJE> B 54.1/33.2
X200 6050013940 S.XTA CR-994 NT3225SA 12.8 MHz B 74.8/12.8
X201 6050013930 S.XTA CR-993 NT3225SA 15.3 MHz B 36.9/14.9
X300 6050013950 S.XTA CR-995(FA-238) 19.6608 MHz B 134.4/48.9
L3 6200011730 S.COI LQW18AN10NG00D(650MA) T 11.9/82.0
L4 6200011730 S.COI LQW18AN10NG00D(650MA) T 42.5/68.8
L9 6200011670 S.COI LQW18AN82NG00D B 37.3/62.6
L10 6200011650 S.COI LQW18AN68NG00D T 70.4/79.4
L11 6200010700 S.COI LQW18AN12NG00D T 13.5/87.1
L12 6200010700 S.COI LQW18AN12NG00D T 35.2/69.4
L15 6200011590 S.COI LQW18AN39NG00D T 13.5/90.9
L16 6200011590 S.COI LQW18AN39NG00D T 30.9/74.5
L17 6200011770 S.COI LQW18ANR10G00D T 55.0/81.7
L18 6200011770 S.COI LQW18ANR10G00D T 69.7/86.5
L21 6200013010 S.COI 0.30-0.9-5TL 10.3N <COMO> T 27.8/84.1
L22 6200013010 S.COI 0.30-0.9-5TL 10.3N <COMO> T 13.6/100.0
L23 6200011670 S.COI LQW18AN82NG00D T 56.9/90.2
L24 6200011670 S.COI LQW18AN82NG00D T 73.9/93.7
L27 6200012520 S.COI 0.26-1.0-5TL 12N <COMO> T 12.7/106.5
L28 6200012520 S.COI 0.26-1.0-5TL 12N <COMO> T 27.1/92.1
L31 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 72.0/99.4
L32 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 58.1/98.3
L33 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 56.1/99.1
L34 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 72.9/101.3
L37 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 27.8/103.8
L38 6200013650 S.COI LQW18ANR27G00D T 62.8/107.7
L40 6200009980 S.COI C2012C-18NG-A T 32.8/104.1
L44 6200010020 S.COI C2012C-12NG-A T 35.3/104.8
L45 6200010350 S.COI C2012C-R27G-A T 68.8/111.6
L47 6200009890 S.COI C2012C-82NG-A T 70.8/108.9
L50 6200011001 S.COI ELJRF 56NJFB T 68.9/50.4
L51 6200011001 S.COI ELJRF 56NJFB T 70.7/50.4
L52 6200007871 S.COI ELJRF 39NJFB B 31.3/37.7
L53 6200007911 S.COI ELJRF 18NJFB B 76.2/38.3
L55 6200010991 S.COI ELJRF 47NJFB B 77.5/40.8
L57 6200007881 S.COI ELJRF 33NJFB B 35.2/42.7
L58 6200007911 S.COI ELJRF 18NJFB B 37.6/43.9
L60 6200007871 S.COI ELJRF 39NJFB B 84.1/46.2
L62 6200007911 S.COI ELJRF 18NJFB B 40.8/43.6
L64 6200007891 S.COI ELJRF 27NJFB B 40.3/46.3
L65 6200007911 S.COI ELJRF 18NJFB B 42.2/49.5
L67 6200010060 S.COI AS080647-56N B 88.1/95.4
L68 6200010060 S.COI AS080647-56N B 85.3/104.2
L69 6200010150 S.COI AS080340-15N B 42.2/91.5
L73 6200010160 S.COI AS080440-22N B 42.5/99.1
L76 6200010420 S.COI FHW1210HC 1R0JGT <JJE> B 83.5/117.7
L79 6200010060 S.COI AS080647-56N B 65.9/117.7
L80 6200010060 S.COI AS080647-56N B 74.7/114.1
L81 6200010420 S.COI FHW1210HC 1R0JGT <JJE> B 46.9/101.6
L83 6200010070 S.COI AS080747-68N B 59.0/119.0
L84 6200010150 S.COI AS080340-15N B 40.9/113.1
L85 6200012900 S.COI 0.30-2.0-7TL 57.2N <COMO> T 72.8/112.9
L86 6200010150 S.COI AS080340-15N B 38.7/108.3
L87 6200010170 S.COI AS080447-33N B 52.2/120.6
L88 6200010150 S.COI AS080340-15N B 40.2/117.8
L90 6200010040 S.COI AS100340-10N-A B 29.8/116.9
L92 6200012960 S.COI 0.45-1.4-4TL 12.1N <COMO> T 35.1/111.4
L94 6200010160 S.COI AS080440-22N B 22.6/111.6
L96 6200010040 S.COI AS100340-10N-A B 14.6/111.2
L99 6200009250 S.COI LQW18ANR22G00D
(LQW1608AR22G00) T 15.4/103.1
L100 6200009250 S.COI LQW18ANR22G00D
(LQW1608AR22G00) T 15.4/84.6
L101 6200009250 S.COI LQW18ANR22G00D
(LQW1608AR22G00) T 26.3/88.2
L102 6200009250 S.COI LQW18ANR22G00D
(LQW1608AR22G00) T 38.9/69.3
L200 6200005140 S.COI MLF1608D R33K-T T 12.4/42.4
L201 6200005140 S.COI MLF1608D R33K-T T 53.5/42.4
L205 6200011090 S.COI C2012C-R56J-A T 18.4/70.9
L206 6200011090 S.COI C2012C-R56J-A T 13.5/70.0
L207 6200011090 S.COI C2012C-R56J-A T 61.1/67.4
L208 6200011090 S.COI C2012C-R56J-A T 55.8/67.4
L209 6200013760 S.COI MLK1005S82NJT T 20.7/64.7
L210 6200013760 S.COI MLK1005S82NJT T 63.2/70.8
L211 6200013900 S.COI MLK1005S5N6ST T 17.2/73.8
L212 6200013850 S.COI MLK1005S15NJT T 69.2/76.5
L213 6200013850 S.COI MLK1005S15NJT T 58.9/75.0
L214 6200013850 S.COI MLK1005S15NJT T 64.4/68.0
L215 6200013850 S.COI MLK1005S15NJT T 54.3/72.9
L300 6200004480 S.COI MLF1608D R82K-T B 71.5/29.1
L301 6200003540 S.COI MLF1608D R22K-T B 70.0/27.9
L302 6190002030 S.COI MLG1608S 1R0J-T T 88.1/25.4
L303 6190002030 S.COI MLG1608S 1R0J-T T 85.9/24.9
L304 6200013460 S.COI C2012H-10NH-R-0231 T 86.4/28.1
L305 6200015290 S.COI C2012H-5N6D-R-0231 T 89.7/27.8
L306 6200015250 S.COI C2012H-27NH-R-0231 T 82.1/26.5
L307 6200015250 S.COI C2012H-27NH-R-0231 T 82.6/29.2
L309 6200011031 S.COI ELJRF R10JFB T 75.1/28.9
L310 6200007871 S.COI ELJRF 39NJFB T 86.5/38.8
L311 6200009351 S.COI ELJRE R22GFA T 76.9/34.6
L313 6200015410 S.COI MLK1005SR33JT T 62.7/51.2
L314 6200013760 S.COI MLK1005S82NJT T 67.4/56.2
L315 6200013820 S.COI MLK1005S27NJT T 60.6/56.8
L316 6200010991 S.COI ELJRF 47NJFB T 67.4/57.8
L324 6200004480 S.COI MLF1608D R82K-T B 29.3/30.2
L325 6200003540 S.COI MLF1608D R22K-T B 28.5/28.0
L326 6190002030 S.COI MLG1608S 1R0J-T T 43.0/27.8
REF PARTS
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
D91 1720000701 S.VAR 1SV305(TPL3F) T 42.1/67.0
D92 1720000701 S.VAR 1SV305(TPL3F) T 36.6/66.7
D100 1750001810 S.DIO L1SS400T1G <SLVJ> T 20.5/13.1
D101 1730002850 S.ZEN DZ2J047M0L T 30.5/14.0
D105 1750002020 S.DIO DA2S10100L T 15.2/23.2
D106 1750002020 S.DIO DA2S10100L T 12.7/23.2
D107 1750002020 S.DIO DA2S10100L T 56.2/23.2
D108 1750002020 S.DIO DA2S10100L T 53.7/23.2
D109 1750002020 S.DIO DA2S10100L T 10.1/18.2
D110 1750002020 S.DIO DA2S10100L T 10.1/19.6
D111 1750002020 S.DIO DA2S10100L T 51.1/18.2
D112 1750002020 S.DIO DA2S10100L T 51.1/19.6
D113 1750001820 S.DIO LRB706F-40T1G <SLVJ> T 12.5/39.8
D114 1750001820 S.DIO LRB706F-40T1G <SLVJ> T 53.5/39.8
D115 1750002170 S.DIO DB2S31400L T 12.4/45.1
D116 1750002170 S.DIO DB2S31400L T 53.4/45.1
D117 1750001820 S.DIO LRB706F-40T1G <SLVJ> T 9.9/47.5
D118 1750001820 S.DIO LRB706F-40T1G <SLVJ> T 50.9/47.5
D119 1750002990 S.DIO BAR88-02V H6327 <RYOYO> T 17.0/67.1
D120 1750002990 S.DIO BAR88-02V H6327 <RYOYO> T 15.2/66.3
D121 1750002990 S.DIO BAR88-02V H6327 <RYOYO> T 60.3/65.2
D122 1750002990 S.DIO BAR88-02V H6327 <RYOYO> T 54.9/65.1
D123 1750001810 S.DIO L1SS400T1G <SLVJ> T 109.2/18.9
D124 1750001810 S.DIO L1SS400T1G <SLVJ> T 111.0/18.1
D201 1750002860 S.VAR BBY57-02V H6327 <RYOYO> T 86.2/26.4
D202 1750002860 S.VAR BBY57-02V H6327 <RYOYO> T 90.1/26.1
D203 1750001770 S.VAR 1SV323(TPH3F) T 83.4/24.1
D204 1750001770 S.VAR 1SV323(TPH3F) T 83.9/26.0
D205 1750001790 S.DIO 1SS390 TE61 T 87.3/31.4
D206 1750001790 S.DIO 1SS390 TE61 T 82.4/32.4
D207 1750001810 S.DIO L1SS400T1G <SLVJ> T 83.6/38.2
D208 1750001790 S.DIO 1SS390 TE61 T 75.1/36.3
D209 1750001790 S.DIO 1SS390 TE61 T 78.9/37.9
D212 1750002990 S.DIO BAR88-02V H6327 <RYOYO> T 65.7/52.5
D213 1750002990 S.DIO BAR88-02V H6327 <RYOYO> T 62.3/52.5
D223 1750002860 S.VAR BBY57-02V H6327 <RYOYO> T 42.6/29.6
D224 1750002860 S.VAR BBY57-02V H6327 <RYOYO> T 45.1/29.3
D225 1750001770 S.VAR 1SV323(TPH3F) T 37.6/24.3
D226 1750001770 S.VAR 1SV323(TPH3F) T 38.4/26.1
D227 1750001770 S.VAR 1SV323(TPH3F) T 40.1/29.1
D228 1750001770 S.VAR 1SV323(TPH3F) T 79.3/24.4
D229 1750001790 S.DIO 1SS390 TE61 T 42.8/34.6
D230 1750001790 S.DIO 1SS390 TE61 T 36.7/32.4
D231 1750001810 S.DIO L1SS400T1G <SLVJ> T 32.9/37.3
D232 1750001790 S.DIO 1SS390 TE61 T 30.8/38.3
D233 1750001790 S.DIO 1SS390 TE61 T 32.5/39.4
D234 1750002990 S.DIO BAR88-02V H6327 <RYOYO> T 21.6/52.5
D235 1750002990 S.DIO BAR88-02V H6327 <RYOYO> T 24.9/52.5
D236 1750001810 S.DIO L1SS400T1G <SLVJ> B 40.2/28.1
D304 1750001770 S.VAR 1SV323(TPH3F) B 133.9/44.9
D307 1750001810 S.DIO L1SS400T1G <SLVJ> #02 T 119.0/55.0
1750001810 S.DIO L1SS400T1G <SLVJ> #03
1750001810 S.DIO L1SS400T1G <SLVJ> #04
1750001810 S.DIO L1SS400T1G <SLVJ> #05
1750001810 S.DIO L1SS400T1G <SLVJ> #06
D309 1750001810 S.DIO L1SS400T1G <SLVJ> #03 B 111.6/57.5
1750001810 S.DIO L1SS400T1G <SLVJ> #04
1750001810 S.DIO L1SS400T1G <SLVJ> #06
D314 1750001810 S.DIO L1SS400T1G <SLVJ> #03 T 119.0/57.9
1750001810 S.DIO L1SS400T1G <SLVJ> #04
1750001810 S.DIO L1SS400T1G <SLVJ> #06
D315 1750001810 S.DIO L1SS400T1G <SLVJ> #02 T 119.0/56.6
1750001810 S.DIO L1SS400T1G <SLVJ> #03
1750001810 S.DIO L1SS400T1G <SLVJ> #04
1750001810 S.DIO L1SS400T1G <SLVJ> #05
1750001810 S.DIO L1SS400T1G <SLVJ> #06
D316 1750001810 S.DIO L1SS400T1G <SLVJ> #03 B 111.6/59.9
1750001810 S.DIO L1SS400T1G <SLVJ> #04
1750001810 S.DIO L1SS400T1G <SLVJ> #06
D317 1750001810 S.DIO L1SS400T1G <SLVJ> #02 B 111.6/58.7
1750001810 S.DIO L1SS400T1G <SLVJ> #03
1750001810 S.DIO L1SS400T1G <SLVJ> #10
D319 1750001810 S.DIO L1SS400T1G <SLVJ> #02 T 115.7/59.5
1750001810 S.DIO L1SS400T1G <SLVJ> #03
1750001810 S.DIO L1SS400T1G <SLVJ> #04
1750001810 S.DIO L1SS400T1G <SLVJ> #06
1750001810 S.DIO L1SS400T1G <SLVJ> #09
D321 1750001810 S.DIO L1SS400T1G <SLVJ> Only #04 T 119.1/59.5
D322 1750001810 S.DIO L1SS400T1G <SLVJ> #02 B 111.6/61.1
1750001810 S.DIO L1SS400T1G <SLVJ> #04
1750001810 S.DIO L1SS400T1G <SLVJ> #09
1750001810 S.DIO L1SS400T1G <SLVJ> #10
D324 1710001420 DIO 1.5KE20A
D325 1750001810 S.DIO L1SS400T1G <SLVJ> B 115.6/66.7
D327 1750001810 S.DIO L1SS400T1G <SLVJ> T 128.8/68.8
D332 1750002110 S.DIO LRB551V-30T1G <SLVJ> B 110.8/69.7
D333 1750002110 S.DIO LRB551V-30T1G <SLVJ> B 109.1/69.7
D334 1750001820 S.DIO LRB706F-40T1G <SLVJ> T 125.1/58.0
D338 1750001820 S.DIO LRB706F-40T1G <SLVJ> B 115.9/76.2
D339 1750001820 S.DIO LRB706F-40T1G <SLVJ> T 121.5/60.8
D340 1750001820 S.DIO LRB706F-40T1G <SLVJ> T 124.0/41.4
D342 1750001810 S.DIO L1SS400T1G <SLVJ> B 77.0/24.6
FI100 2020002520 S.CER LTWC450H <JJE> B 22.4/21.6
FI101 2020002480 S.CER LTWC450E1 <JJE> B 13.4/21.6
FI102 2020002520 S.CER LTWC450H <JJE> B 63.4/21.6
FI103 2020002480 S.CER LTWC450E1 <JJE> B 54.3/21.6
FI104 2030000870 S.MON MFT46.3P3 46.350 MHz
(FL-442) T 12.1/53.2
FI105 2030001170 S.MON 38.85SS10B3 38.85 MHz
(FL-481) T 53.7/53.2
X101 6070000300 S.DIS JTBM450CX24 <JJE> B 13.2/33.2
