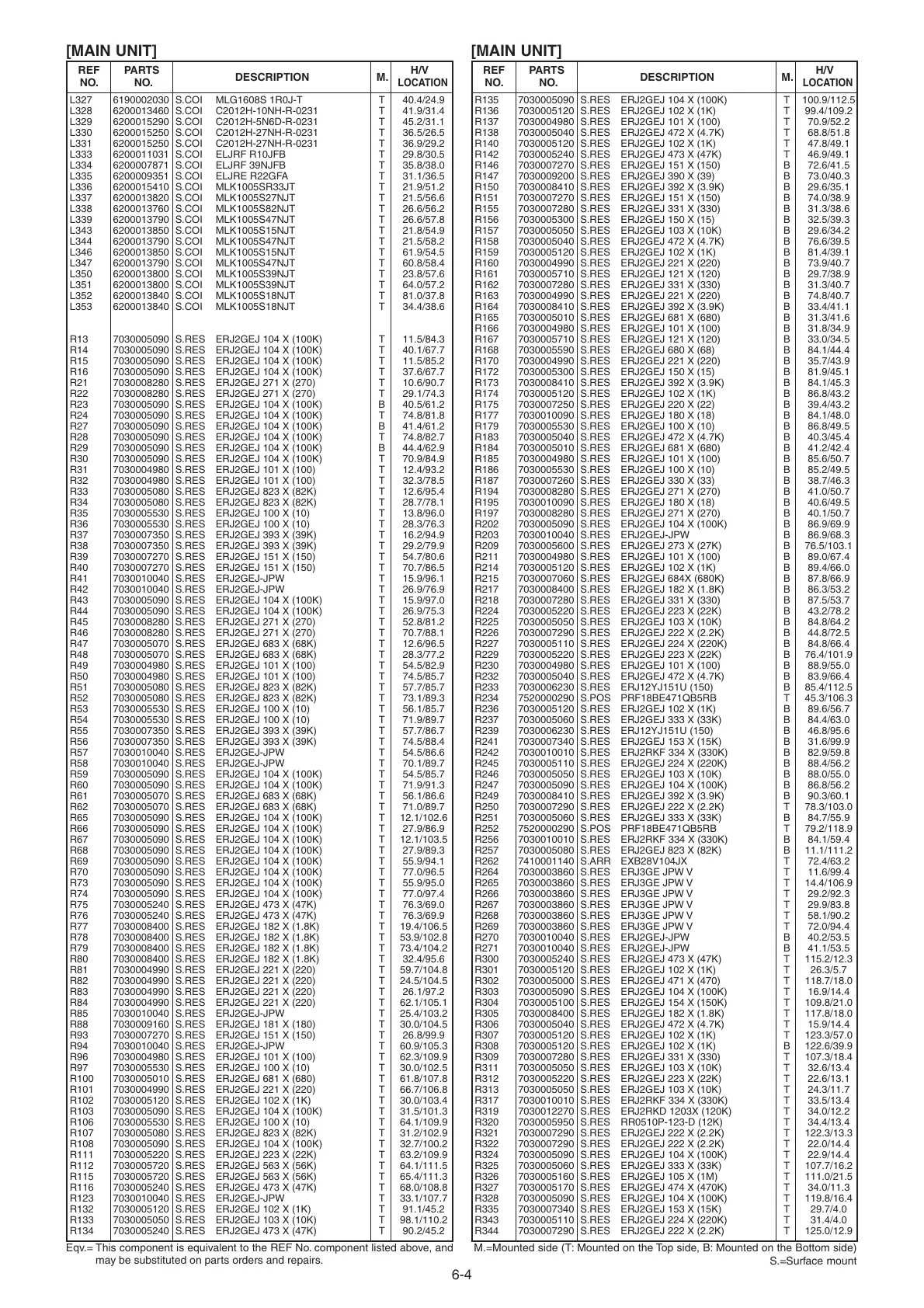

6-4
Eqv.= This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
R135 7030005090 S.RES ERJ2GEJ 104 X (100K) T 100.9/112.5
R136 7030005120 S.RES ERJ2GEJ 102 X (1K) T 99.4/109.2
R137 7030004980 S.RES ERJ2GEJ 101 X (100) T 70.9/52.2
R138 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 68.8/51.8
R140 7030005120 S.RES ERJ2GEJ 102 X (1K) T 47.8/49.1
R142 7030005240 S.RES ERJ2GEJ 473 X (47K) T 46.9/49.1
R146 7030007270 S.RES ERJ2GEJ 151 X (150) B 72.6/41.5
R147 7030009200 S.RES ERJ2GEJ 390 X (39) B 73.0/40.3
R150 7030008410 S.RES ERJ2GEJ 392 X (3.9K) B 29.6/35.1
R151 7030007270 S.RES ERJ2GEJ 151 X (150) B 74.0/38.9
R155 7030007280 S.RES ERJ2GEJ 331 X (330) B 31.3/38.6
R156 7030005300 S.RES ERJ2GEJ 150 X (15) B 32.5/39.3
R157 7030005050 S.RES ERJ2GEJ 103 X (10K) B 29.6/34.2
R158 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 76.6/39.5
R159 7030005120 S.RES ERJ2GEJ 102 X (1K) B 81.4/39.1
R160 7030004990 S.RES ERJ2GEJ 221 X (220) B 73.9/40.7
R161 7030005710 S.RES ERJ2GEJ 121 X (120) B 29.7/38.9
R162 7030007280 S.RES ERJ2GEJ 331 X (330) B 31.3/40.7
R163 7030004990 S.RES ERJ2GEJ 221 X (220) B 74.8/40.7
R164 7030008410 S.RES ERJ2GEJ 392 X (3.9K) B 33.4/41.1
R165 7030005010 S.RES ERJ2GEJ 681 X (680) B 31.3/41.6
R166 7030004980 S.RES ERJ2GEJ 101 X (100) B 31.8/34.9
R167 7030005710 S.RES ERJ2GEJ 121 X (120) B 33.0/34.5
R168 7030005590 S.RES ERJ2GEJ 680 X (68) B 84.1/44.4
R170 7030004990 S.RES ERJ2GEJ 221 X (220) B 35.7/43.9
R172 7030005300 S.RES ERJ2GEJ 150 X (15) B 81.9/45.1
R173 7030008410 S.RES ERJ2GEJ 392 X (3.9K) B 84.1/45.3
R174 7030005120 S.RES ERJ2GEJ 102 X (1K) B 86.8/43.2
R175 7030007250 S.RES ERJ2GEJ 220 X (22) B 39.4/43.2
R177 7030010090 S.RES ERJ2GEJ 180 X (18) B 84.1/48.0
R179 7030005530 S.RES ERJ2GEJ 100 X (10) B 86.8/49.5
R183 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 40.3/45.4
R184 7030005010 S.RES ERJ2GEJ 681 X (680) B 41.2/42.4
R185 7030004980 S.RES ERJ2GEJ 101 X (100) B 85.6/50.7
R186 7030005530 S.RES ERJ2GEJ 100 X (10) B 85.2/49.5
R187 7030007260 S.RES ERJ2GEJ 330 X (33) B 38.7/46.3
R194 7030008280 S.RES ERJ2GEJ 271 X (270) B 41.0/50.7
R195 7030010090 S.RES ERJ2GEJ 180 X (18) B 40.6/49.5
R197 7030008280 S.RES ERJ2GEJ 271 X (270) B 40.1/50.7
R202 7030005090 S.RES ERJ2GEJ 104 X (100K) B 86.9/69.9
R203 7030010040 S.RES ERJ2GEJ-JPW B 86.9/68.3
R209 7030005600 S.RES ERJ2GEJ 273 X (27K) B 76.5/103.1
R211 7030004980 S.RES ERJ2GEJ 101 X (100) B 89.0/67.4
R214 7030005120 S.RES ERJ2GEJ 102 X (1K) B 89.4/66.0
R215 7030007060 S.RES ERJ2GEJ 684X (680K) B 87.8/66.9
R217 7030008400 S.RES ERJ2GEJ 182 X (1.8K) B 86.3/53.2
R218 7030007280 S.RES ERJ2GEJ 331 X (330) B 87.5/53.7
R224 7030005220 S.RES ERJ2GEJ 223 X (22K) B 43.2/78.2
R225 7030005050 S.RES ERJ2GEJ 103 X (10K) B 84.8/64.2
R226 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 44.8/72.5
R227 7030005110 S.RES ERJ2GEJ 224 X (220K) B 84.8/66.4
R229 7030005220 S.RES ERJ2GEJ 223 X (22K) B 76.4/101.9
R230 7030004980 S.RES ERJ2GEJ 101 X (100) B 88.9/55.0
R232 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 83.9/66.4
R233 7030006230 S.RES ERJ12YJ151U (150) B 85.4/112.5
R234 7520000290 S.POS PRF18BE471QB5RB T 45.3/106.3
R236 7030005120 S.RES ERJ2GEJ 102 X (1K) B 89.6/56.7
R237 7030005060 S.RES ERJ2GEJ 333 X (33K) B 84.4/63.0
R239 7030006230 S.RES ERJ12YJ151U (150) B 46.8/95.6
R241 7030007340 S.RES ERJ2GEJ 153 X (15K) B 31.6/99.9
R242 7030010010 S.RES ERJ2RKF 334 X (330K) B 82.9/59.8
R245 7030005110 S.RES ERJ2GEJ 224 X (220K) B 88.4/56.2
R246 7030005050 S.RES ERJ2GEJ 103 X (10K) B 88.0/55.0
R247 7030005090 S.RES ERJ2GEJ 104 X (100K) B 86.8/56.2
R249 7030008410 S.RES ERJ2GEJ 392 X (3.9K) B 90.3/60.1
R250 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 78.3/103.0
R251 7030005060 S.RES ERJ2GEJ 333 X (33K) B 84.7/55.9
R252 7520000290 S.POS PRF18BE471QB5RB T 79.2/118.9
R256 7030010010 S.RES ERJ2RKF 334 X (330K) B 84.1/59.4
R257 7030005080 S.RES ERJ2GEJ 823 X (82K) B 11.1/111.2
R262 7410001140 S.ARR EXB28V104JX T 72.4/63.2
R264 7030003860 S.RES ERJ3GE JPW V T 11.6/99.4
R265 7030003860 S.RES ERJ3GE JPW V T 14.4/106.9
R266 7030003860 S.RES ERJ3GE JPW V T 29.2/92.3
R267 7030003860 S.RES ERJ3GE JPW V T 29.9/83.8
R268 7030003860 S.RES ERJ3GE JPW V T 58.1/90.2
R269 7030003860 S.RES ERJ3GE JPW V T 72.0/94.4
R270 7030010040 S.RES ERJ2GEJ-JPW B 40.2/53.5
R271 7030010040 S.RES ERJ2GEJ-JPW B 41.1/53.5
R300 7030005240 S.RES ERJ2GEJ 473 X (47K) T 115.2/12.3
R301 7030005120 S.RES ERJ2GEJ 102 X (1K) T 26.3/5.7
R302 7030005000 S.RES ERJ2GEJ 471 X (470) T 118.7/18.0
R303 7030005090 S.RES ERJ2GEJ 104 X (100K) T 16.9/14.4
R304 7030005100 S.RES ERJ2GEJ 154 X (150K) T 109.8/21.0
R305 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 117.8/18.0
R306 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 15.9/14.4
R307 7030005120 S.RES ERJ2GEJ 102 X (1K) T 123.3/57.0
R308 7030005120 S.RES ERJ2GEJ 102 X (1K) B 122.6/39.9
R309 7030007280 S.RES ERJ2GEJ 331 X (330) T 107.3/18.4
R311 7030005050 S.RES ERJ2GEJ 103 X (10K) T 32.6/13.4
R312 7030005220 S.RES ERJ2GEJ 223 X (22K) T 22.6/13.1
R313 7030005050 S.RES ERJ2GEJ 103 X (10K) T 24.3/11.7
R317 7030010010 S.RES ERJ2RKF 334 X (330K) T 33.5/13.4
R319 7030012270 S.RES ERJ2RKD 1203X (120K) T 34.0/12.2
R320 7030005950 S.RES RR0510P-123-D (12K) T 34.4/13.4
R321 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 122.3/13.3
R322 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 22.0/14.4
R324 7030005090 S.RES ERJ2GEJ 104 X (100K) T 22.9/14.4
R325 7030005060 S.RES ERJ2GEJ 333 X (33K) T 107.7/16.2
R326 7030005160 S.RES ERJ2GEJ 105 X (1M) T 111.0/21.5
R327 7030005170 S.RES ERJ2GEJ 474 X (470K) T 34.0/11.3
R328 7030005090 S.RES ERJ2GEJ 104 X (100K) T 119.8/16.4
R335 7030007340 S.RES ERJ2GEJ 153 X (15K) T 29.7/4.0
R343 7030005110 S.RES ERJ2GEJ 224 X (220K) T 31.4/4.0
R344 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 125.0/12.9
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
L327 6190002030 S.COI MLG1608S 1R0J-T T 40.4/24.9
L328 6200013460 S.COI C2012H-10NH-R-0231 T 41.9/31.4
L329 6200015290 S.COI C2012H-5N6D-R-0231 T 45.2/31.1
L330 6200015250 S.COI C2012H-27NH-R-0231 T 36.5/26.5
L331 6200015250 S.COI C2012H-27NH-R-0231 T 36.9/29.2
L333 6200011031 S.COI ELJRF R10JFB T 29.8/30.5
L334 6200007871 S.COI ELJRF 39NJFB T 35.8/38.0
L335 6200009351 S.COI ELJRE R22GFA T 31.1/36.5
L336 6200015410 S.COI MLK1005SR33JT T 21.9/51.2
L337 6200013820 S.COI MLK1005S27NJT T 21.5/56.6
L338 6200013760 S.COI MLK1005S82NJT T 26.6/56.2
L339 6200013790 S.COI MLK1005S47NJT T 26.6/57.8
L343 6200013850 S.COI MLK1005S15NJT T 21.8/54.9
L344 6200013790 S.COI MLK1005S47NJT T 21.5/58.2
L346 6200013850 S.COI MLK1005S15NJT T 61.9/54.5
L347 6200013790 S.COI MLK1005S47NJT T 60.8/58.4
L350 6200013800 S.COI MLK1005S39NJT T 23.8/57.6
L351 6200013800 S.COI MLK1005S39NJT T 64.0/57.2
L352 6200013840 S.COI MLK1005S18NJT T 81.0/37.8
L353 6200013840 S.COI MLK1005S18NJT T 34.4/38.6
R13 7030005090 S.RES ERJ2GEJ 104 X (100K) T 11.5/84.3
R14 7030005090 S.RES ERJ2GEJ 104 X (100K) T 40.1/67.7
R15 7030005090 S.RES ERJ2GEJ 104 X (100K) T 11.5/85.2
R16 7030005090 S.RES ERJ2GEJ 104 X (100K) T 37.6/67.7
R21 7030008280 S.RES ERJ2GEJ 271 X (270) T 10.6/90.7
R22 7030008280 S.RES ERJ2GEJ 271 X (270) T 29.1/74.3
R23 7030005090 S.RES ERJ2GEJ 104 X (100K) B 40.5/61.2
R24 7030005090 S.RES ERJ2GEJ 104 X (100K) T 74.8/81.8
R27 7030005090 S.RES ERJ2GEJ 104 X (100K) B 41.4/61.2
R28 7030005090 S.RES ERJ2GEJ 104 X (100K) T 74.8/82.7
R29 7030005090 S.RES ERJ2GEJ 104 X (100K) B 44.4/62.9
R30 7030005090 S.RES ERJ2GEJ 104 X (100K) T 70.9/84.9
R31 7030004980 S.RES ERJ2GEJ 101 X (100) T 12.4/93.2
R32 7030004980 S.RES ERJ2GEJ 101 X (100) T 32.3/78.5
R33 7030005080 S.RES ERJ2GEJ 823 X (82K) T 12.6/95.4
R34 7030005080 S.RES ERJ2GEJ 823 X (82K) T 28.7/78.1
R35 7030005530 S.RES ERJ2GEJ 100 X (10) T 13.8/96.0
R36 7030005530 S.RES ERJ2GEJ 100 X (10) T 28.3/76.3
R37 7030007350 S.RES ERJ2GEJ 393 X (39K) T 16.2/94.9
R38 7030007350 S.RES ERJ2GEJ 393 X (39K) T 29.2/79.9
R39 7030007270 S.RES ERJ2GEJ 151 X (150) T 54.7/80.6
R40 7030007270 S.RES ERJ2GEJ 151 X (150) T 70.7/86.5
R41 7030010040 S.RES ERJ2GEJ-JPW T 15.9/96.1
R42 7030010040 S.RES ERJ2GEJ-JPW T 26.9/76.9
R43 7030005090 S.RES ERJ2GEJ 104 X (100K) T 15.9/97.0
R44 7030005090 S.RES ERJ2GEJ 104 X (100K) T 26.9/75.3
R45 7030008280 S.RES ERJ2GEJ 271 X (270) T 52.8/81.2
R46 7030008280 S.RES ERJ2GEJ 271 X (270) T 70.7/88.1
R47 7030005070 S.RES ERJ2GEJ 683 X (68K) T 12.6/96.5
R48 7030005070 S.RES ERJ2GEJ 683 X (68K) T 28.3/77.2
R49 7030004980 S.RES ERJ2GEJ 101 X (100) T 54.5/82.9
R50 7030004980 S.RES ERJ2GEJ 101 X (100) T 74.5/85.7
R51 7030005080 S.RES ERJ2GEJ 823 X (82K) T 57.7/85.7
R52 7030005080 S.RES ERJ2GEJ 823 X (82K) T 73.1/89.3
R53 7030005530 S.RES ERJ2GEJ 100 X (10) T 56.1/85.7
R54 7030005530 S.RES ERJ2GEJ 100 X (10) T 71.9/89.7
R55 7030007350 S.RES ERJ2GEJ 393 X (39K) T 57.7/86.7
R56 7030007350 S.RES ERJ2GEJ 393 X (39K) T 74.5/88.4
R57 7030010040 S.RES ERJ2GEJ-JPW T 54.5/86.6
R58 7030010040 S.RES ERJ2GEJ-JPW T 70.1/89.7
R59 7030005090 S.RES ERJ2GEJ 104 X (100K) T 54.5/85.7
R60 7030005090 S.RES ERJ2GEJ 104 X (100K) T 71.9/91.3
R61 7030005070 S.RES ERJ2GEJ 683 X (68K) T 56.1/86.6
R62 7030005070 S.RES ERJ2GEJ 683 X (68K) T 71.0/89.7
R65 7030005090 S.RES ERJ2GEJ 104 X (100K) T 12.1/102.6
R66 7030005090 S.RES ERJ2GEJ 104 X (100K) T 27.9/86.9
R67 7030005090 S.RES ERJ2GEJ 104 X (100K) T 12.1/103.5
R68 7030005090 S.RES ERJ2GEJ 104 X (100K) T 27.9/89.3
R69 7030005090 S.RES ERJ2GEJ 104 X (100K) T 55.9/94.1
R70 7030005090 S.RES ERJ2GEJ 104 X (100K) T 77.0/96.5
R73 7030005090 S.RES ERJ2GEJ 104 X (100K) T 55.9/95.0
R74 7030005090 S.RES ERJ2GEJ 104 X (100K) T 77.0/97.4
R75 7030005240 S.RES ERJ2GEJ 473 X (47K) T 76.3/69.0
R76 7030005240 S.RES ERJ2GEJ 473 X (47K) T 76.3/69.9
R77 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 19.4/106.5
R78 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 53.9/102.8
R79 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 73.4/104.2
R80 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 32.4/95.6
R81 7030004990 S.RES ERJ2GEJ 221 X (220) T 59.7/104.8
R82 7030004990 S.RES ERJ2GEJ 221 X (220) T 24.5/104.5
R83 7030004990 S.RES ERJ2GEJ 221 X (220) T 26.1/97.2
R84 7030004990 S.RES ERJ2GEJ 221 X (220) T 62.1/105.1
R85 7030010040 S.RES ERJ2GEJ-JPW T 25.4/103.2
R88 7030009160 S.RES ERJ2GEJ 181 X (180) T 30.0/104.5
R93 7030007270 S.RES ERJ2GEJ 151 X (150) T 26.8/99.9
R94 7030010040 S.RES ERJ2GEJ-JPW T 60.9/105.3
R96 7030004980 S.RES ERJ2GEJ 101 X (100) T 62.3/109.9
R97 7030005530 S.RES ERJ2GEJ 100 X (10) T 30.0/102.5
R100 7030005010 S.RES ERJ2GEJ 681 X (680) T 61.8/107.8
R101 7030004990 S.RES ERJ2GEJ 221 X (220) T 66.7/106.8
R102 7030005120 S.RES ERJ2GEJ 102 X (1K) T 30.0/103.4
R103 7030005090 S.RES ERJ2GEJ 104 X (100K) T 31.5/101.3
R106 7030005530 S.RES ERJ2GEJ 100 X (10) T 64.1/109.9
R107 7030005080 S.RES ERJ2GEJ 823 X (82K) T 31.2/102.9
R108 7030005090 S.RES ERJ2GEJ 104 X (100K) T 32.7/100.2
R111 7030005220 S.RES ERJ2GEJ 223 X (22K) T 63.2/109.9
R112 7030005720 S.RES ERJ2GEJ 563 X (56K) T 64.1/111.5
R115 7030005720 S.RES ERJ2GEJ 563 X (56K) T 65.4/111.3
R116 7030005240 S.RES ERJ2GEJ 473 X (47K) T 68.0/108.8
R123 7030010040 S.RES ERJ2GEJ-JPW T 33.1/107.7
R132 7030005120 S.RES ERJ2GEJ 102 X (1K) T 91.1/45.2
R133 7030005050 S.RES ERJ2GEJ 103 X (10K) T 98.1/110.2
R134 7030005240 S.RES ERJ2GEJ 473 X (47K) T 90.2/45.2
To Next Page
Loading...
