PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

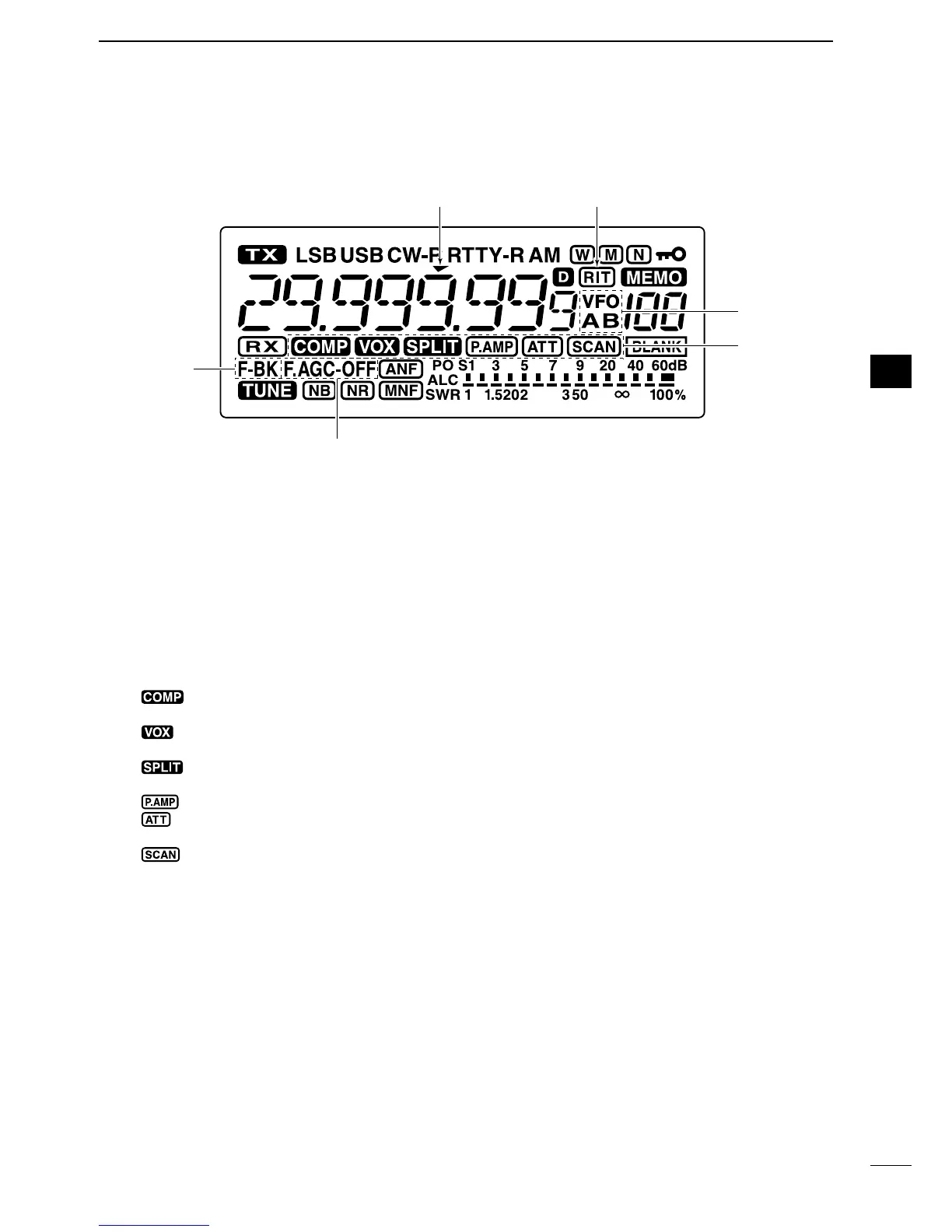

!5 PROGRAMMABLE TUNING STEP INDICATOR
Appears when the programmable tuning step is
selected. (p. 26)
!6 RIT INDICATOR (p. 44)
Appears when the RIT function is activated.
!7 VFO INDICATORS (p. 22)
“
VFO A” or “VFO B” appears when VFO mode is
selected.
!8 FUNCTION INDICATORS
➥ “ ” appears when the speech compressor
is activated in SSB mode.
➥ “ ” appears when the VOX function is acti-
vated.
➥ “ ” appears during split frequency opera-
tion.
➥ “ ” appears when preamp is activated.
➥ “ ” appears when the attenuator function is
activated.
➥ “ ” appears during scan.
• Blinks when scan is paused.
!9 AGC INDICATORS (p. 45)
Shows the selected AGC time constant.
• “F.AGC” for AGC fast; “AGC-OFF” for AGC OFF; no in-
dicator; for AGC slow.
@0 BREAK-IN INDICATORS (p. 55)
➥ “BK” appears when the semi break-in function is
activated.
➥ “F-BK” appears when the full break-in function
is activated.
!5 !6
!7
!8
!9
@0
