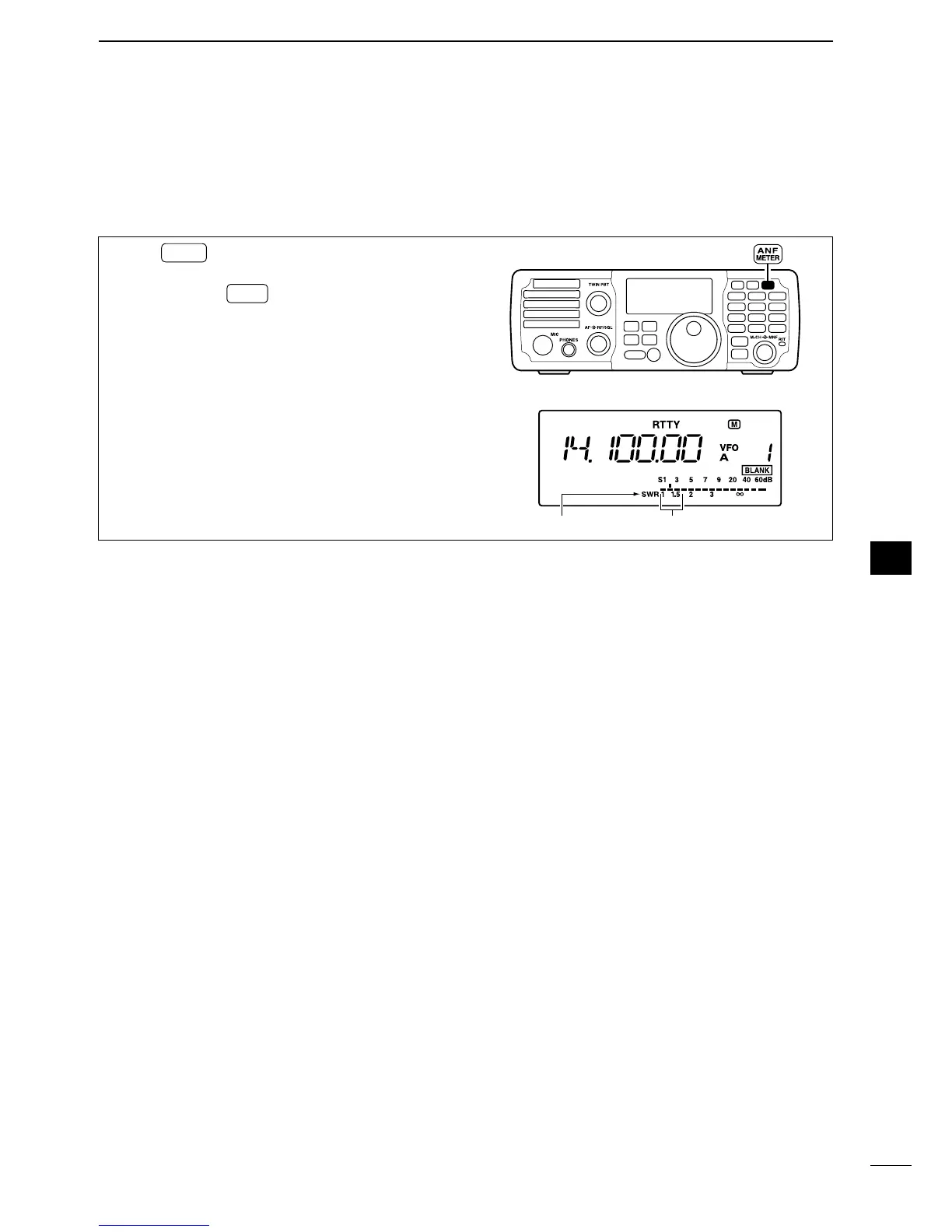

■Measuring SWR
The IC-7200 has a built-in circuit for measuring an-
tenna SWR—no external equipment is necessary.
q Push
MODE
to select CW or RTTY mode.
w Confirm that the output power is over 30 W.
e Push and hold
ANF
METER
for 1 sec. several times to
select the SWR meter.
r Push [PTT] to transmit; then read the actual SWR
from the meter.
• ≤ 1.5 well-matched antenna
• > 1.5 may indicate an antenna out of its well-matched
frequency range. If much larger than 2.0, check an-
tenna and cable connections, etc.
