Icom IC-7200

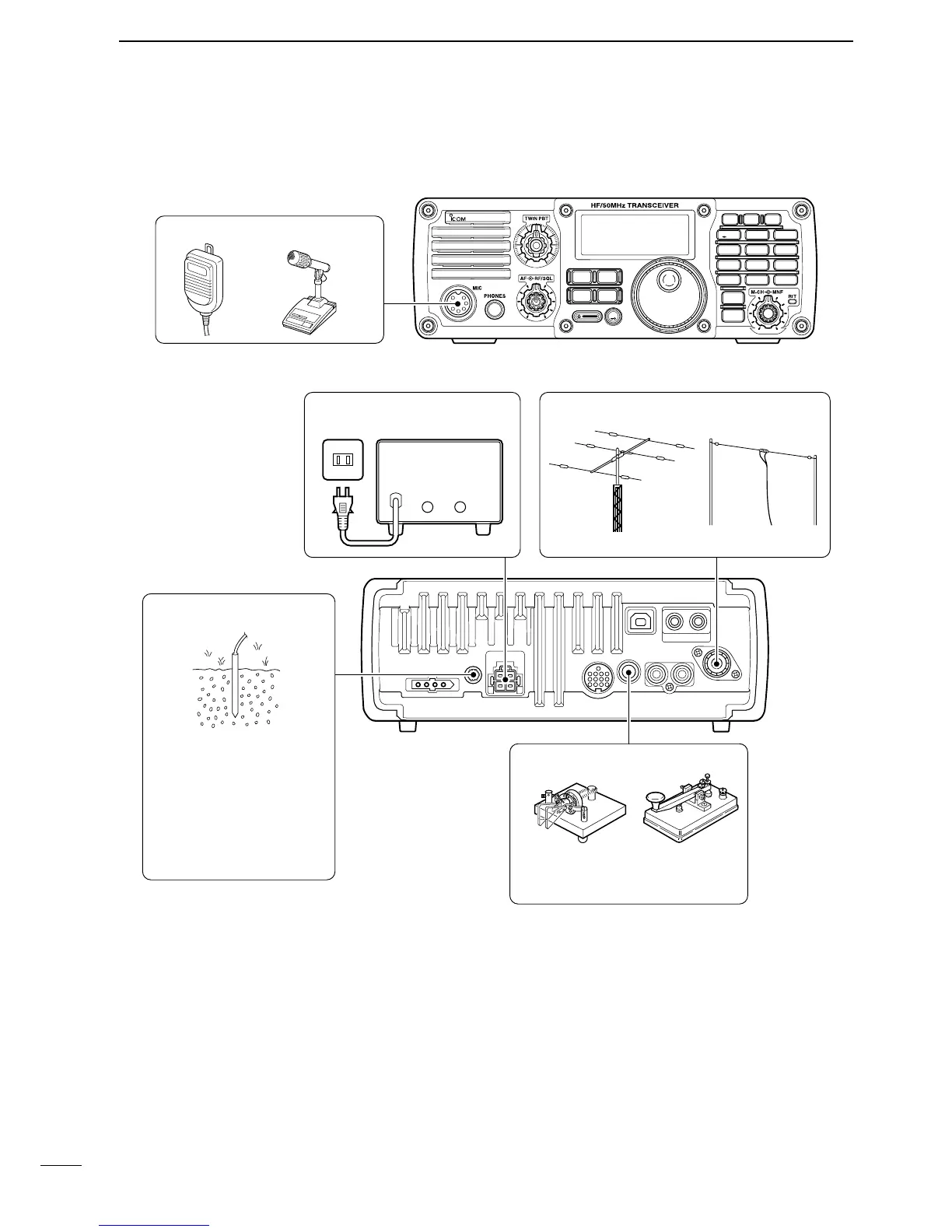

■ Required connections
• Front panel
i7200
MODE
TUNER
TS
FILTER
SPCH
V/M A/B
SPLIT
M-CL
SCAN
SET
ATT
P . AMP
COMP VOX
MNF
RIT
1
2 3
4 5 6
7
8
0
50
28
1814
10
21
24
=
7
3.5
1.8
F-INP
M-CH/ RIT
ENT
BAND
GENE
9
.
AGC
MW
ANF
METER
NRNB
MICROPHONES (p. 11)
SM-20HM-36
• Rear panel
GROUND (p. 12)
Use the heaviest gauge wire
or strap available and make
the connection as short and
straight as possible.
Grounding prevents electrical
shocks, TVI and other prob-
lems.
CW KEY
A straight key can be used when the
internal electronic keyer is turned
OFF in initial set mode. (p. 80)
HF/50 MHz ANTENNADC POWER SUPPLY
(p.15)
A DC power supplyAC outlet
13.8 V; at least 22 A
Black
_
Red
+
13
2
INSTALLATION AND CONNECTIONS
