Icom IC-7610

13

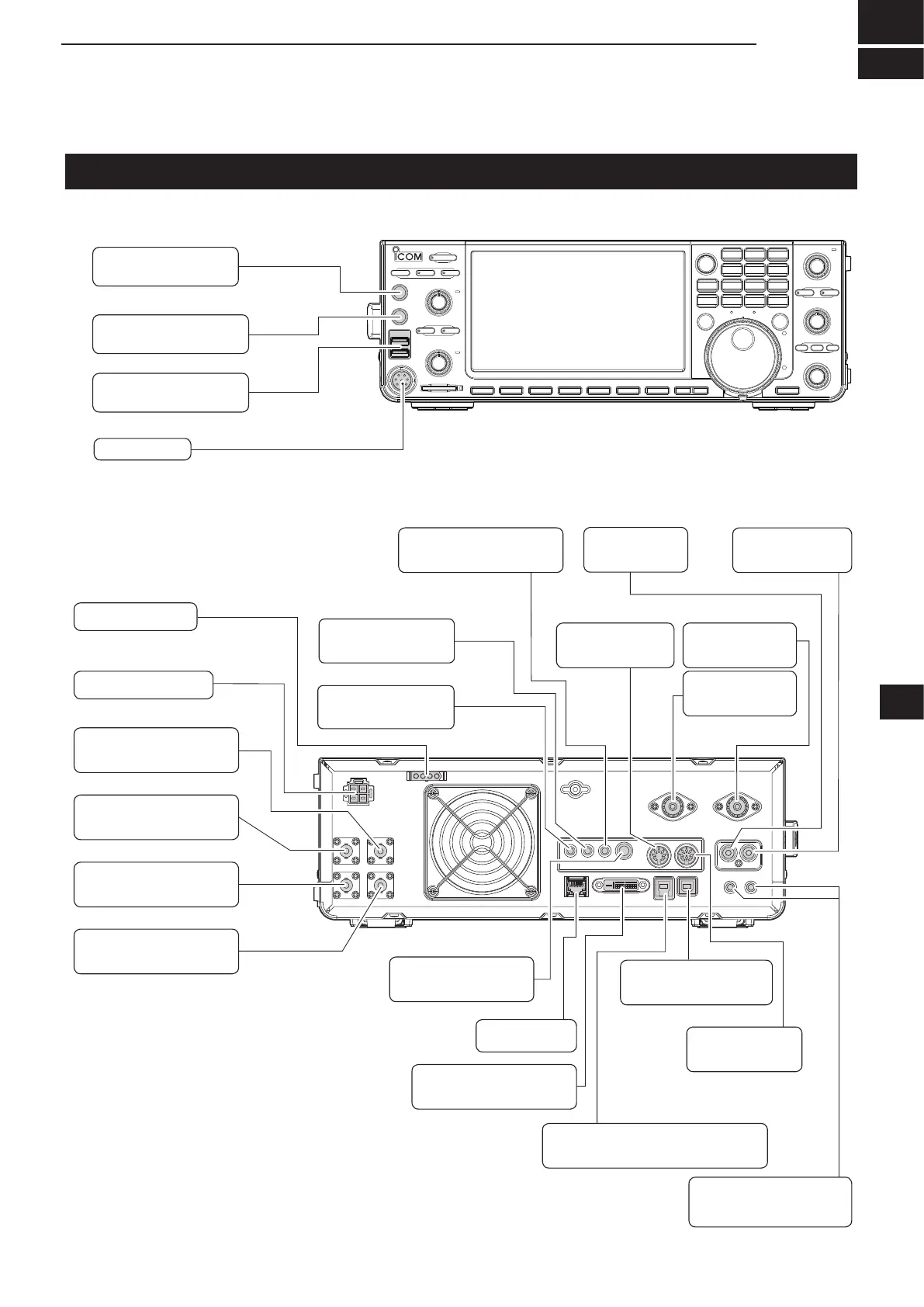

CONNECTOR INFORMATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
13-1
PHONES (p. 13-3)
• 6.35 mm (¼ in) (d)
ELEC-KEY (p. 13-3)
• 6.35 mm (¼ in) (d)
USB ports (p. 13-4)
• A type
MIC (p. 13-3)
SEND (p. 13-4)
• RCA plug
ALC (p. 13-4)
• RCA plug
EXT KEYPAD (p. 13-4)
• 3.5 mm (⅛ in) (d)
DC 13.8 V (p. 13-3)
RX-ANT OUT (p. 13-6)
• BNC connector: 50 Ω
RX-ANT IN (p. 13-6)
• BNC connector: 50 Ω
X-VERTER (p. 13-6)
• BNC connector: 50 Ω
REF IN (p. 13-5)
• BNC connector: 50 Ω
REMOTE (p. 13-4)
• 3.5 mm (⅛ in) (d)
METER (p. 13-4)
• 3.5 mm (⅛ in) (d)
ACC 2 (p. 13-2)
• 7-pin
EXT-DISPLAY (p. 13-5)
• DVI-V (29 pin)
KEY (p. 13-3)
• 6.35 mm (¼ in) (d)
USB 1 port (p. 13-5)
• B type
LAN (p. 13-5)
USB 2 port (p. 13-5)
• USB 3.0 standard port (B type)
EXT-SP A/B (p. 13-5)
• 3.5 mm (⅛ in) (d)
ACC 1 (p. 13-2)
• 8-pin
TUNER (p. 13-3)
Interface information
ANT 2 (p. 13-6)
• 50 Ω
ANT 1 (p. 13-6)
• 50 Ω
