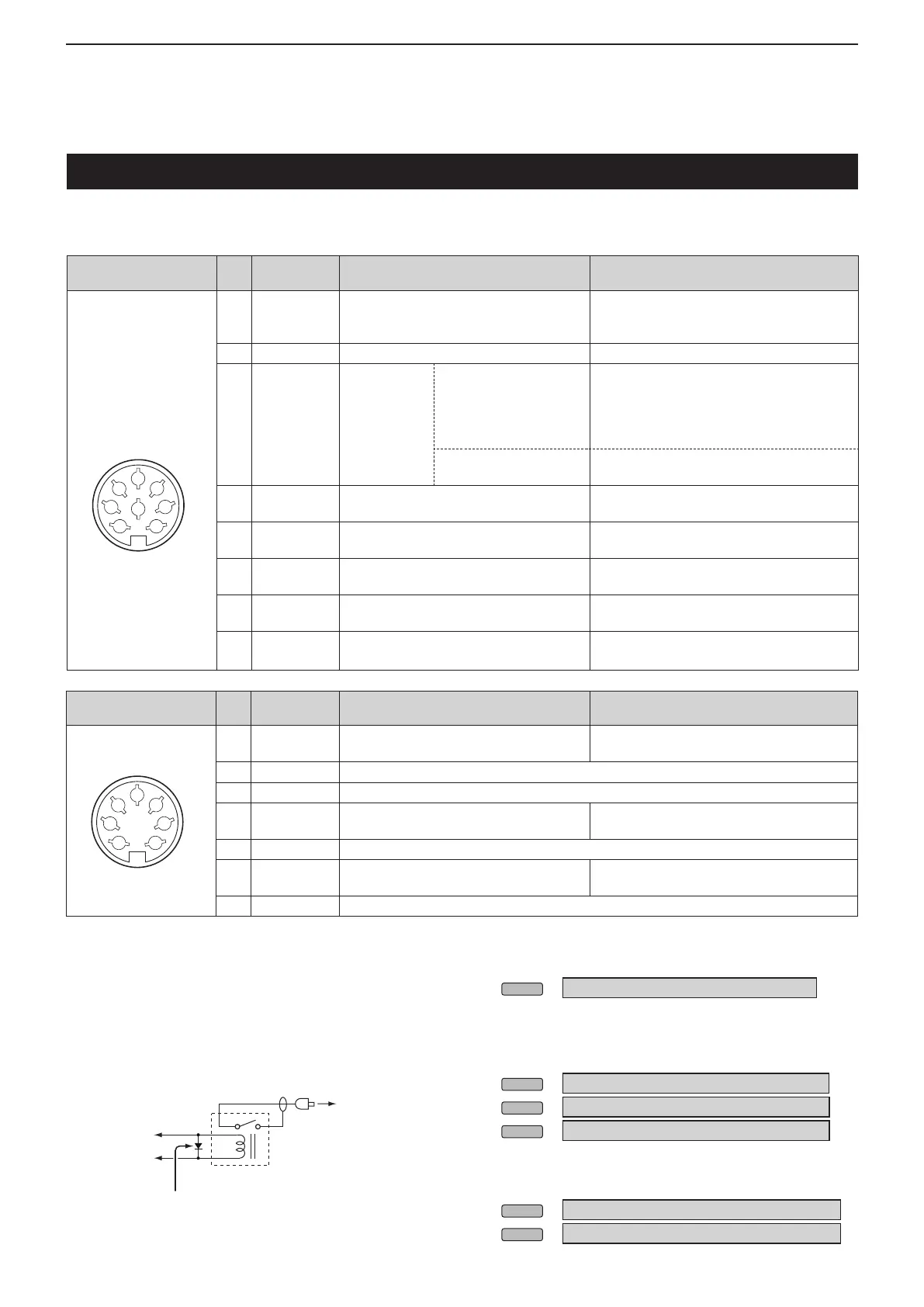

ACC sockets
Connects to external equipment or a PC to control an external unit or the transceiver.
• ACC sockets
*
2
You can change the MOD input level.
L100 mV rms is at 50% as the default.
MENU
»
SET > Connectors > ACC MOD Level
*
3
You can change the AF/IF (IF=12 kHz) settings to output a
12 kHz IF signal. In that case, you can listen to the DRM
broadcast with the application software receiver that is
installed onto your PC.
MENU
»
SET > Connectors > ACC Output Select
MENU
»
SET > Connectors > USB Output Select
MENU
»
SET > Connectors > LAN Output Select
*
4
You can change the AF/IF (IF=12 kHz) output level .
L Approximately 200 mV rms is at the 50% as the
default.
MENU
»
SET > Connectors > ACC IF Output Level
MENU
»
SET > Connectors > USB IF Output Level
*
1
When the SEND terminal controls an inductive load, such
as a relay, a counter-electromotive force can malfunction
or damage the transceiver. To prevent this, we recommend
adding a switching diode, such as an 1SS133, on the load
side of the circuit to absorb the counter-electromotive force.
When the diode is added, a delay in relay switching may
occur. Be sure to check its switching action before operating.
(Example) ACC 1/2 socket
To a non-Icom
linear amplier
Relay
Switching diode
e SEND
u 13.8 V
ACC 1
PIN
No.
NAME DESCRIPTION SPECIFICATIONS
1 RTTY Controls RTTY keying.
High level:
Low level:
Output current:
More than 2.4 V
Less than 0.6 V
Less than 2 mA
2 GND Connects to ground. Connected in parallel with ACC 2 pin 2.
3 SEND*
1
Input/output
pin.
Connected in
parallel with
ACC 2 pin 3.
An external unit controls
the transceiver.
When this pin goes to
ground, the transceiver
transmits.
Input voltage (RX):
Input voltage (TX):
Current ow:
2.0 ~ 20.0 V
–0.5 ~ +0.8 V
Maximum 20 mA
The pin goes low when
the transceiver transmits.
Output voltage (TX):
Current ow:
Less than 0.1 V
Maximum 200 mA
4 MOD
Modulator input.
Connects to the internal modulator circuit.
Input impedance:
Output level:
10 kΩ
Approx. 100 mV rms*
2
5
AF/IF
(IF=12 kHz)*
3
Fixed AF detector or receive IF (12 kHz)
signal output.
Output impedance:
Output level:
4.7 kΩ
100 ~ 300 mV rms *
4
6 SQL S
Squelch output.
Grounded when the squelch opens.
SQL open:
SQL closed:
Less than 0.3 V/5 mA
More than 6.0 V/100 μA
7 13.8 V
13.8 V output when power is ON.
Connected in parallel with ACC 2 pin 7.
Output current: Maximum 1A
8 ALC
ALC voltage input.
Connected in parallel with ACC 2 pin 5.
Input level:
Input impedance:
–4 ~ 0 V
More than 10 kΩ
8-pin
Rear panel view
1
2
3
4
5
6
7
8
ACC 2
PIN
No.
NAME DESCRIPTION SPECIFICATIONS
1 8 V Regulated 8 V output.
Output voltage:
Output current:
8 V ±0.3 V
Less than 10 mA
2 GND Connects to ground (Same as ACC 1 pin 2).
3 SEND*
1
Same as ACC 1 pin 3.
4 BAND
Band voltage output.
(Varies with the selected amateur band)
Output voltage: 0 ~ 8.0 V
5 ALC Same as ACC 1 pin 8.
6 TRV
Activates [X-VERTER] input/output when
“HIGH” voltage is applied.
Input impedance:
Input voltage:
More than 10 kΩ
2 ~ 13.8 V
7 13.8 V Same as ACC 1 pin 7.
1
2
3
4
5
6
7
7-pin
Rear panel view
