Icom IC-7610

13

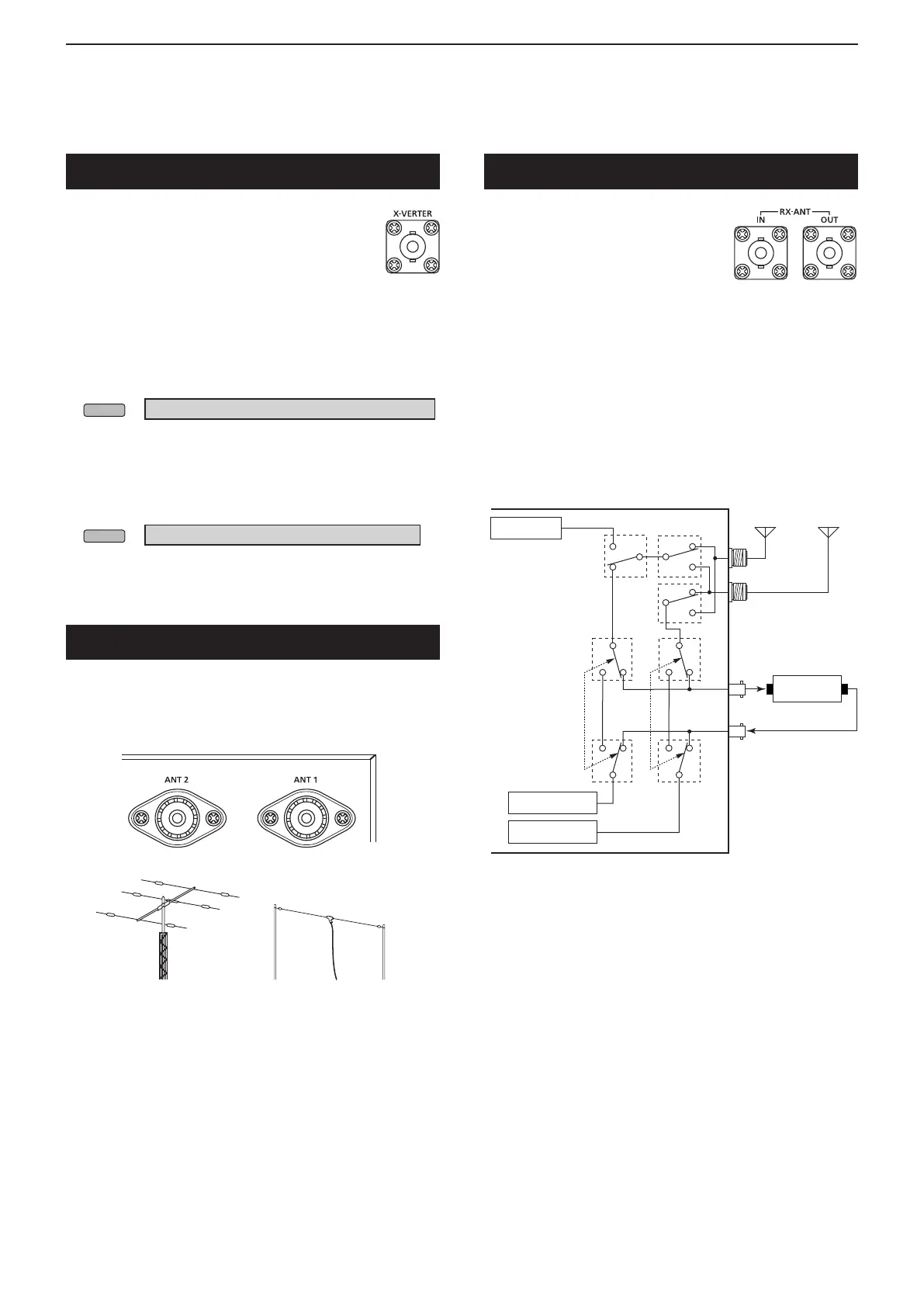

CONNECTOR INFORMATION
13-6
X-VERTER
Outputs HF frequency signals for the
Transverter operation.
• Input/Output impedance: 50 Ω (unbalanced)
• Output signal level: More than –20 dBm
L Set the “Transverter Function” item to ON to use the
transverter operating mode.
MENU
» SET > Function > Transverter Function
• You cannot select the antenna or use the internal
antenna tuner while the Transverter function is
ON.
L Set the offset frequency for the transverter
operation.
MENU
» SET > Function > Transverter Offset
ANT 1 / ANT 2
Connect a 50 Ω antenna for the HF to 50 MHz
frequency band.
• Input/Output impedance: 50 Ω (unbalanced)
LIf you are using the AH-4, connect it to [ANT 1].
RX-ANT IN/OUT
Connect a receive antenna to
[RX-ANT IN], and a receiver to
[RX-ANT OUT].
• Input/Output impedance: 50 Ω (unbalanced)
• Connector type: BNC
L Signal is directly received through [RX-ANT IN],
instead of the antenna connector.
You can also connect an external preamp or lter, as
shown below.
L In this case, set the antenna connector to “ANT 1/R”
or “ANT 2/R.” (p. 7-1)
IN
[RX-ANT]
[ANT 2][ANT 1]
OUT
TX
RX
Filter
MAIN receiver
SUB receiver
Transmitter
Example
