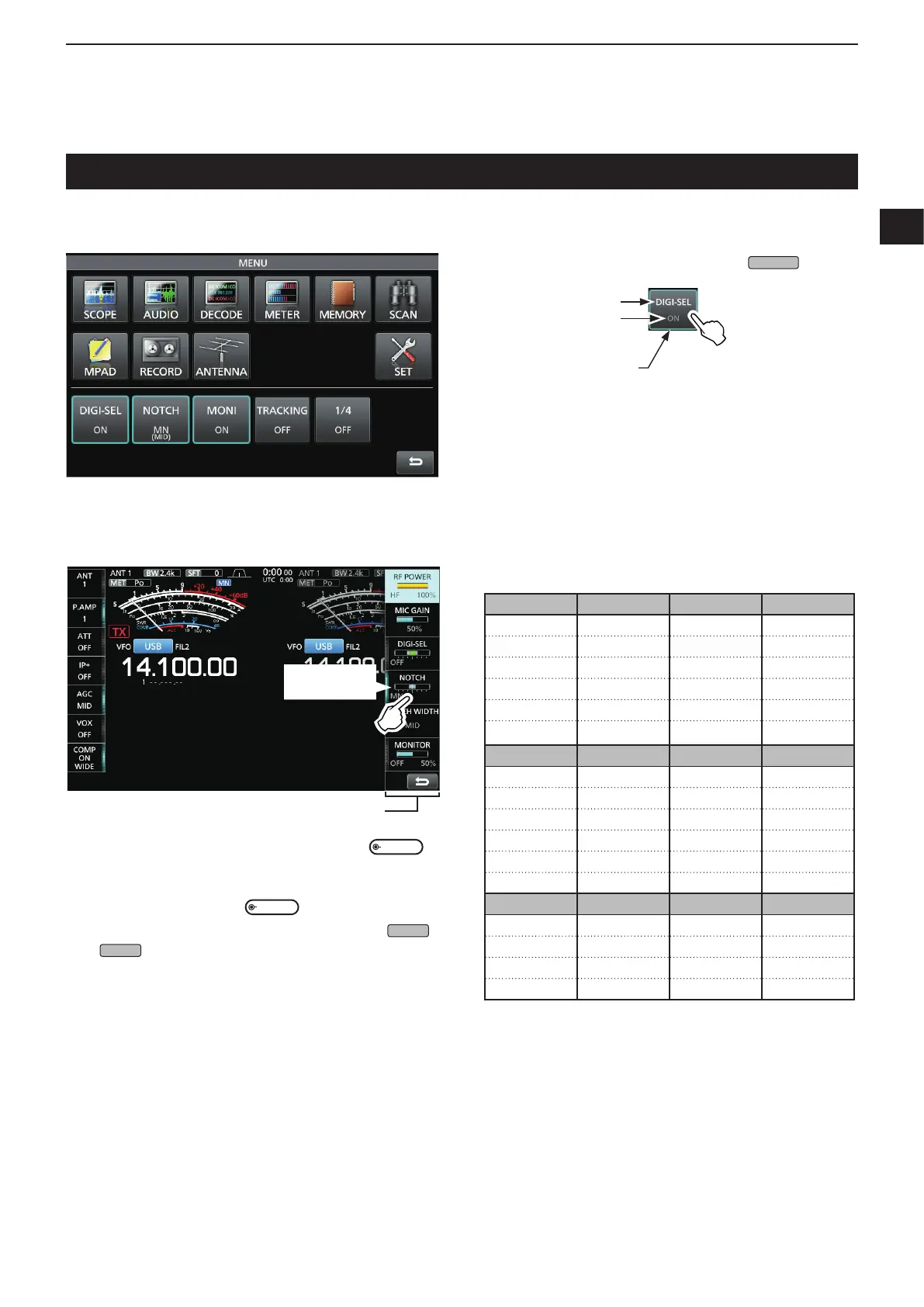

Touch screen display (Continued)
D MENU screen
z Open the MENU screen by pushing
MENU
.
Function name
Status
Lights blue or orange
when in use
LTheitemsdisplayedonthemenudiffer,depending
on the selected operating mode.
D Multi-function menus
z Open the Multi-function menu by pushing
MULTI
(Multi-function control).
z WhiletheMulti-functionmenuisopen,touchthe
desired item and rotate
MULTI
toadjustthevalue.
LYoucanopenothermenusbyholdingdown
NB
or
NR
for1second,ortouching“ATT,”“VOX,”
“BK-IN”or“COMP”intheMulti-functionkeygroup
for 1 second.
Multi-function menu
Touch to turn
ON or OFF
SSB CW RTTY PSK
RF POWER RF POWER RF POWER RF POWER
MICGAIN
DIGI-SEL DIGI-SEL DIGI-SEL DIGI-SEL
NOTCH NOTCH NOTCH NOTCH
NOTCH WIDTH NOTCH WIDTH NOTCH WIDTH NOTCH WIDTH
MONITOR MONITOR MONITOR
AM FM NB NR
RF POWER RF POWER LEVEL LEVEL
MICGAIN MICGAIN DEPTH
DIGI-SEL DIGI-SEL WIDTH
NOTCH NOTCH
NOTCH WIDTH
MONITOR MONITOR
ATT VOX BK-IN COMP
LEVEL GAIN DELAY LEVEL
ANTIVOX TBW
DELAY
VOICEDELAY
Multi-function menu items
