1
PANEL DESCRIPTION
1-1

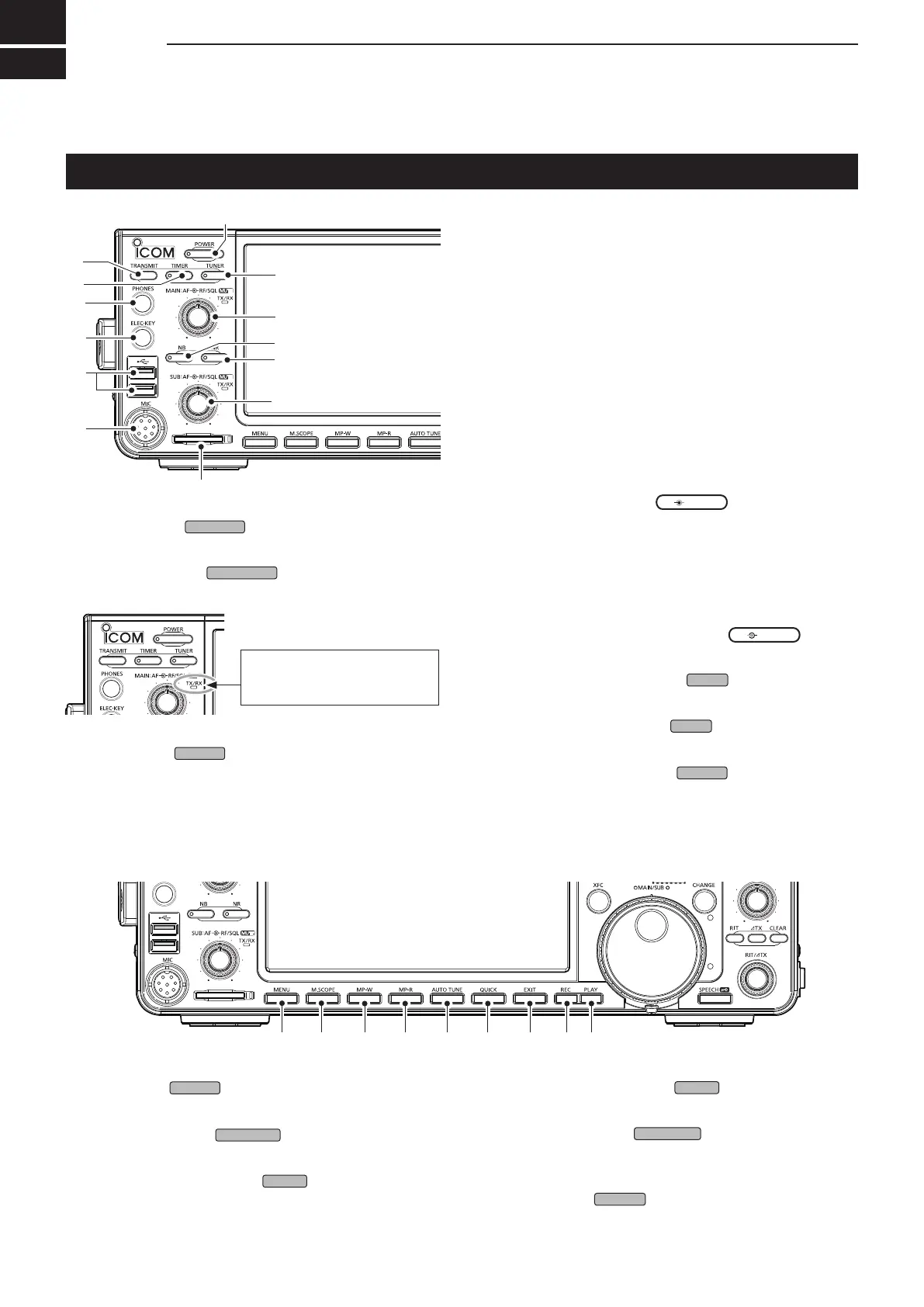

Front panel
q POWER KEY
(p. 3-1)
Turns the transceiver ON or OFF.
w TRANSMIT KEY
(p. 3-9)
Toggles between transmit and receive.
e TIMER KEY
Turns the Sleep Timer or Daily Timer function ON or
OFF.
!3 !4
!5 !6 !7 !8 !9 @0 @1
r
t
y
u
!2
o
!0
w
q
e
!1
o
i
r HEADPHONE JACK [PHONES] (p. 13-3)
Connects to standard stereo headphones.
t ELECTRONIC KEYER JACK [ELEC-KEY] (p. 13-3)
Connects to a paddle to use the internal electronic
keyer for the CW operations.
y USB PORT [USB A] (p. 13-4)
InsertaUSBashdrive,USBAtypekeyboard,
RC-28
remote encoder,mouseorhub.
u MICROPHONE CONNECTOR [MIC] (p. 13-3)
Connects to the supplied or an optional microphone.
i SD CARD SLOT [SD CARD] (p. 6-1)
AcceptsanSDcard.Theindicatornexttotheslot
lights blue when inserted.
o VOLUME CONTROL
(p. 3-1)
LTheuppercontrolisfortheMainband,andthe
lower control is for the Sub band.
• Push to turn the Mute function ON or OFF.
- The TX/RX indicator lights orange when the Mute
function is ON.
•Adjuststheaudiooutputlevel.
RF GAIN/SQUELCH CONTROL
(p. 3-7)
AdjuststheRFgainandsquelchthresholdlevels.
!0 NOISE REDUCTION KEY
(p. 4-5)
Turns the Noise Reduction function ON or OFF.
!1 NOISE BLANKER KEY
(p. 4-5)
Turns the Noise Blanker ON or OFF.
!2 ANTENNA TUNER KEY
(p. 7-3)
TurnstheantennatunerONorOFF,oractivates
the tuner.
The TX/RX indicator
• Lights green while receiving.
• Lights red while transmitting.
!3 MENU KEY
(p. 8-1)
Displays the MENU screen.
!4 MINI SCOPE KEY
(p. 5-2)
Displays the Mini Scope or Spectrum Scope.
!5 MEMO PAD WRITE KEY
Saves the displayed contents into the Memo Pad.
!6 MEMO PAD READ KEY
SequentiallycallsupthecontentsintheMemoPad.
!7 AUTO TUNE KEY
(p. 4-8)
Automaticallytunestheoperatingfrequencytoa
received CW signal.
!8 QUICK KEY
(p. 1-7)
Displays the QUICK MENU.
