30

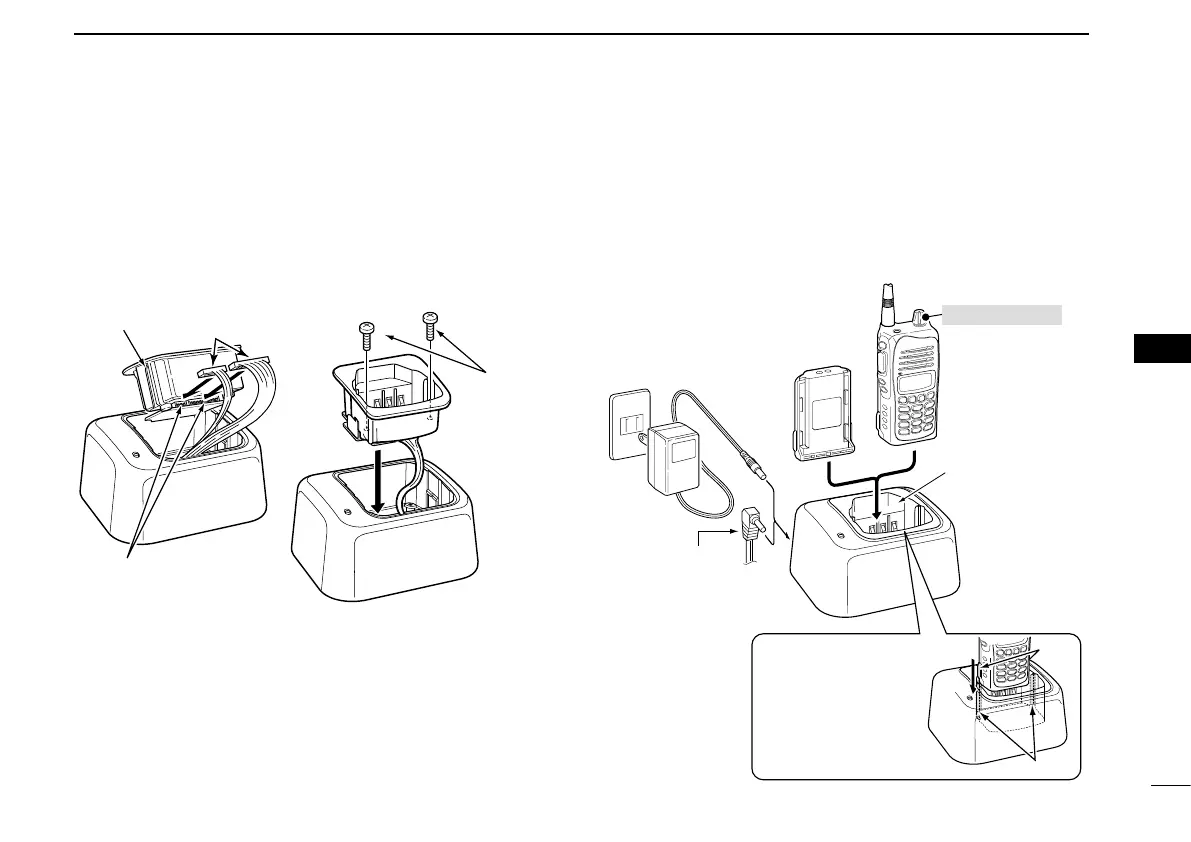

D Installing AD-106
➥ Connect the AD-106 charger adapter and the BC-119N or
BC-121N as shown below (q). Then install the AD-106
into the holder space of the BC-119N or BC-121N with the
supplied screws (w).
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs. The following accessories are additionally required.
• AD-106 charger adapter.
• A power adapter (may be supplied with BC-119N depending on the
charger versions) or the OPC-515L DC power cable.
7
BATTERY PACKS AND CASE
Screws
(supplied with
AD-106)
Connectors
Plugs
q
w
The AD-106 charger
adapter is installed
in the BC-119N.
Power adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) can be used
instead of the power
adapter.
Battery
pack
Tu rn power OFF
IMPORTANT!:
Ensure the guide tabs
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Tabs
Guide rails
