34
ADVANCED OPERATION
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
TLL function
Using the TLL (Target Latitude and Longitude)
function, you can mark up a place on the screen. You
can also output the TLL information to an external
device through the NMEA 2 connector.
D Marking up a place
You can make up to 20 TLL marks.
1. Move the cross-line cursor onto a place where
you want to mark up.
2. Hold down [ACQ]/[ ] for 1 second ([TLL]).
The TLL icon and a number is displayed.

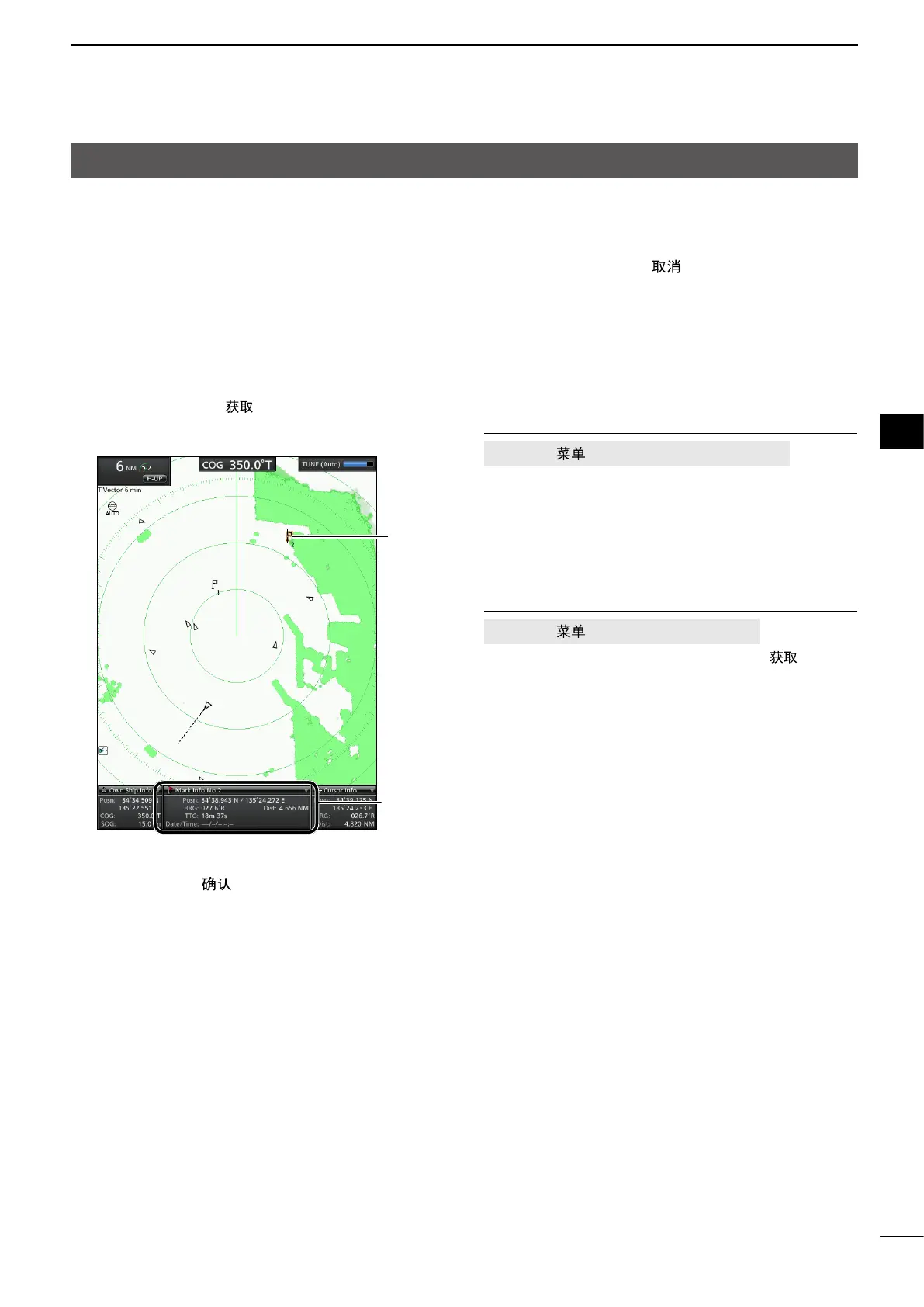

Information
box
TLL mark
L Details on the TLL mark can be displayed in the
Information box by moving the cursor to the TLL mark and
pushing [ENTER]/[
] to select the target.
D Clearing a TLL mark
1. Move the cross-line cursor onto a TLL mark you
want to clear.
2. Hold down [CLEAR]/[ ] for 1 second to clear the
TLL mark.
The TLL mark and the number disappears.
D Customizing the TLL settings
You can customize the TLL mark settings in the Menu
screen.
Display Marks
[MENU]/[
] > Display > Display Marks
Selects the TLL mark display type.
OFF: Does not display TLL marks.
Symbol: Displays only TLL marks.
Symbol & Number:
Displays both the Symbols and
the Number.
TLL Mode
[MENU]/[
] > System > TLL Mode
Selects the action when the [ACQ (TLL)]/[
(TLL)]
key is held down for 1 second, in the Menu screen.
Output: Outputs the position information
where the cursor is positioned, to
the NMEA output terminals.
Symbol: Marks with an icon and number
on the screen where the cursor is
positioned.
Output & Symbol: Outputs the position information
and marks on the screen where
the cursor is positioned.
