Icom MR-1220 Series User Manual

38
MENU SCREEN
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Menu items
■ Brilliance & Color
Number of Echo Steps
Sets the number of echo gradation steps to 8 or 32.
Brilliance of Heading Line
Sets the brilliance of the heading line to 1 (weak), 2,
or 3 (strong).
Brilliance of Rings
Sets the brilliance of the xed range rings to 1 (weak),
2, 3 (strong), or OFF (hidden).
Brilliance of ARPA/AIS
Sets the brilliance of the ARPA and AIS symbols to 1
(weak), 2, or 3 (strong).
Brilliance of EBL/VRM/PI
Sets the brilliance of the EBL, VRM, PI lines to 1
(weak), 2, or 3 (strong).
Brilliance of Other Symbols
Sets the brilliance of other symbols inside the bearing
scale to 1 (weak), 2, or 3 (strong).
Brilliance of Characters
Sets the brilliance of the items outside the bearing
scale to 1 (weak), 2, or 3 (strong).
Day Time Display (Back: White)
Night Time Display (Back: Black)
Selects the Day Time or Night Time display color from
4 patterns.
User Custom Display
Selects the User color setting from 12 patterns.
TIP: You can change the Display color between
Day, Night, and User color in the “Brilliance/Color”
window. See the Basic operation section for details.
[BRILL]/[
] > Color
■ Trail
See the Basic operation section (p.14).
■ Display
Display Own Vector
Displays or hides your own ship’s vector.
L Requires the Bearing and Ship Speed data input.

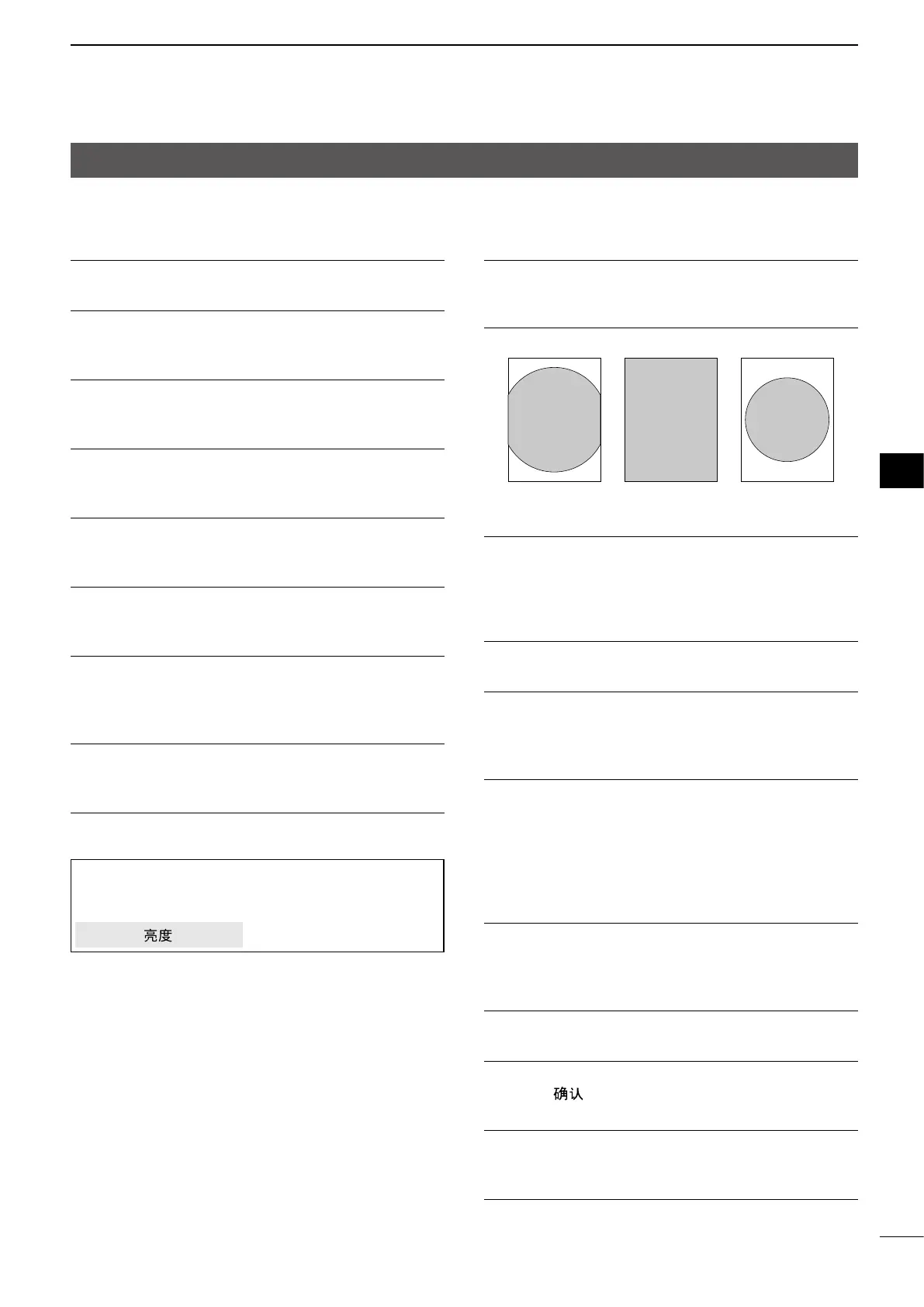

PPI Area Setting
Sets the size of the Plain Position Indicator (PPI) area.
Normal Wide Circle
Auto Hide Information
L For only when the PPI Area Setting is “Wide.”
Sets whether or not to hide the information outside
the scale ring 10 seconds after the last operation.
Information is resumed by any operation.
Display Waypoints
Sets whether or not to display Waypoints.
Display Marks
Selects the TLL mark display type from OFF, Symbol,
or Symbol & Number. Set also “TLL Mode” in the
System menu to display TLL marks. (p. 42)
Display DSC Info
Selects the DSC information display type.
• OFF: Hides DSC information.
• Symbol: Displays only DSC icons.
• Pop-up:
Displays only a DSC pop-up window.
• Symbol & Pop-up: Displays both the Symbols and the
pop-up window.
Cursor Information
Selects the location format in the Cursor Information box.
• Lat/Lon: Latitude and Longitude
• TTG: Time to Go
Display Own Track
Sets whether or not to display your vessel’s track.
Clear Own Track
Clears the your vessel’s track. Select <OK> and push
[ENTER]/[
] to clear the track.
Interval (Own Track)
Selects the interval of your vessel’s track from 30
seconds, or between 1 ~ 15 minutes.
Color (Own Track)
Selects the color of your vessel’s track from Blue,
Yellow, Green, Red, Orange, or White.
