Icom MR-1220 Series User Manual

35
7
ADVANCED OPERATION

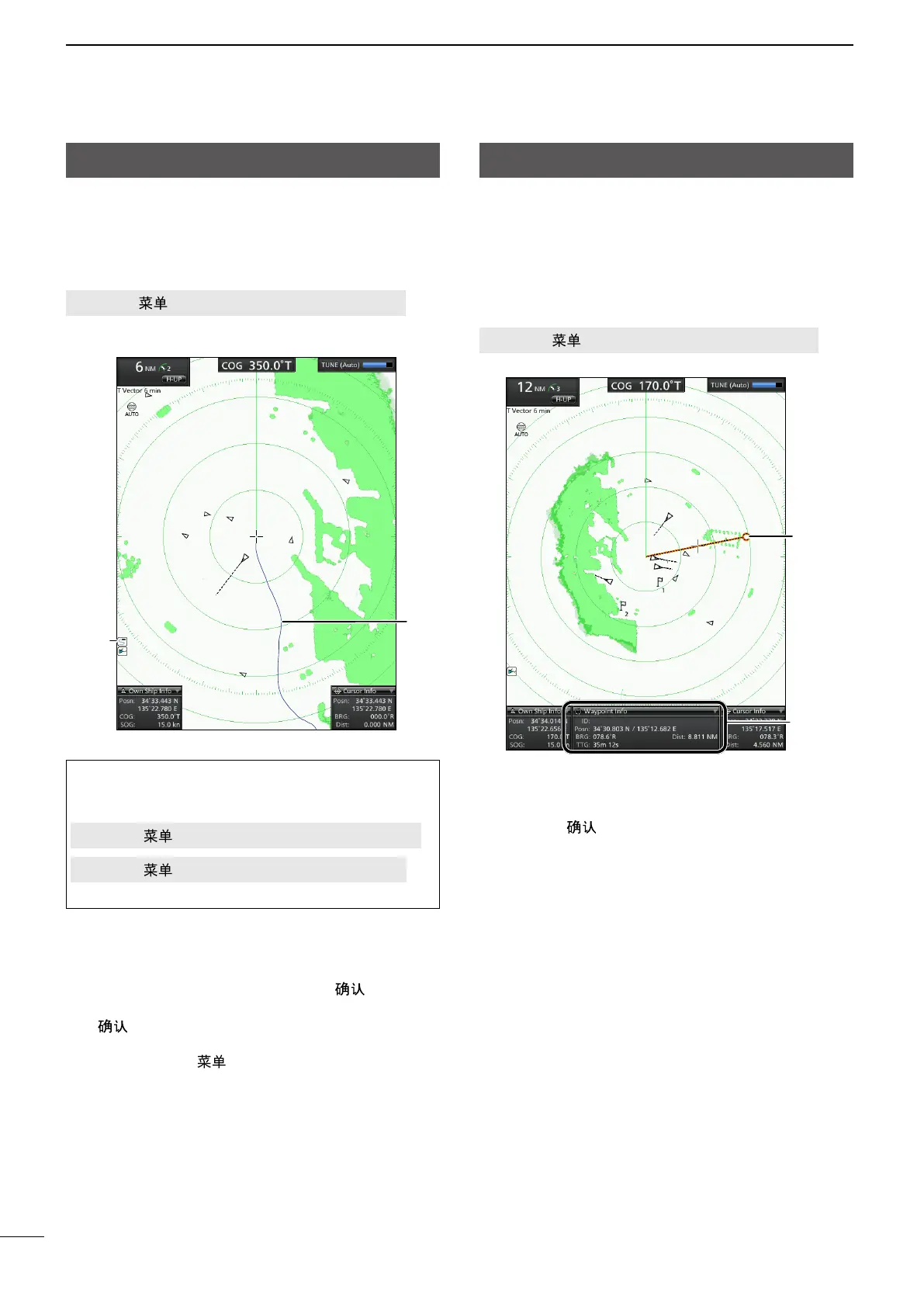

Waypoint indicationDisplaying your tracks
The Plot function tracks your route on the screen.
D Displaying your track
To display your vessel’s track, turn ON the “Display
Own Track” setting in the Display menu.
[MENU]/[
] > Display > Display Own Track
• When this function is on, the Own track icon is displayed.
Your
track
Own
track
icon
TIP: You can customize your own track settings,
such as track interval or track color in the Display
menu.
[MENU]/[
] > Display > Interval (Own Track)
[MENU]/[
] > Display > Color (Own Track)
Refer to the Menu screen section for the details.
D Resetting your track
1. Select the “Clear Own Track” setting in the
Display menu, and push [ENTER]/[ ].
2. Push [◄] to select <OK>, and then push [ENTER]/
[ ] to apply.
• Your track is cleared.
3. Push [MENU]/[ ] to exit the Menu screen.
If the received NMEA 0183 data through the NMEA 2
connector includes the Waypoint data, the radar can
plot the Waypoint marker on the screen.
D Displaying the Waypoints
To display the Waypoint marker, turn ON the “Display
Waypoints” setting in the Display menu.
[MENU]/[
] > Display > Display Waypoints
Waypoint
marker
Information
box
L The details on the Waypoint can be displayed in
the Information box. Move the cross-line cursor
onto the line of the Waypoint marker, and then push
[ENTER]/[ ] to select the Waypoint marker.
