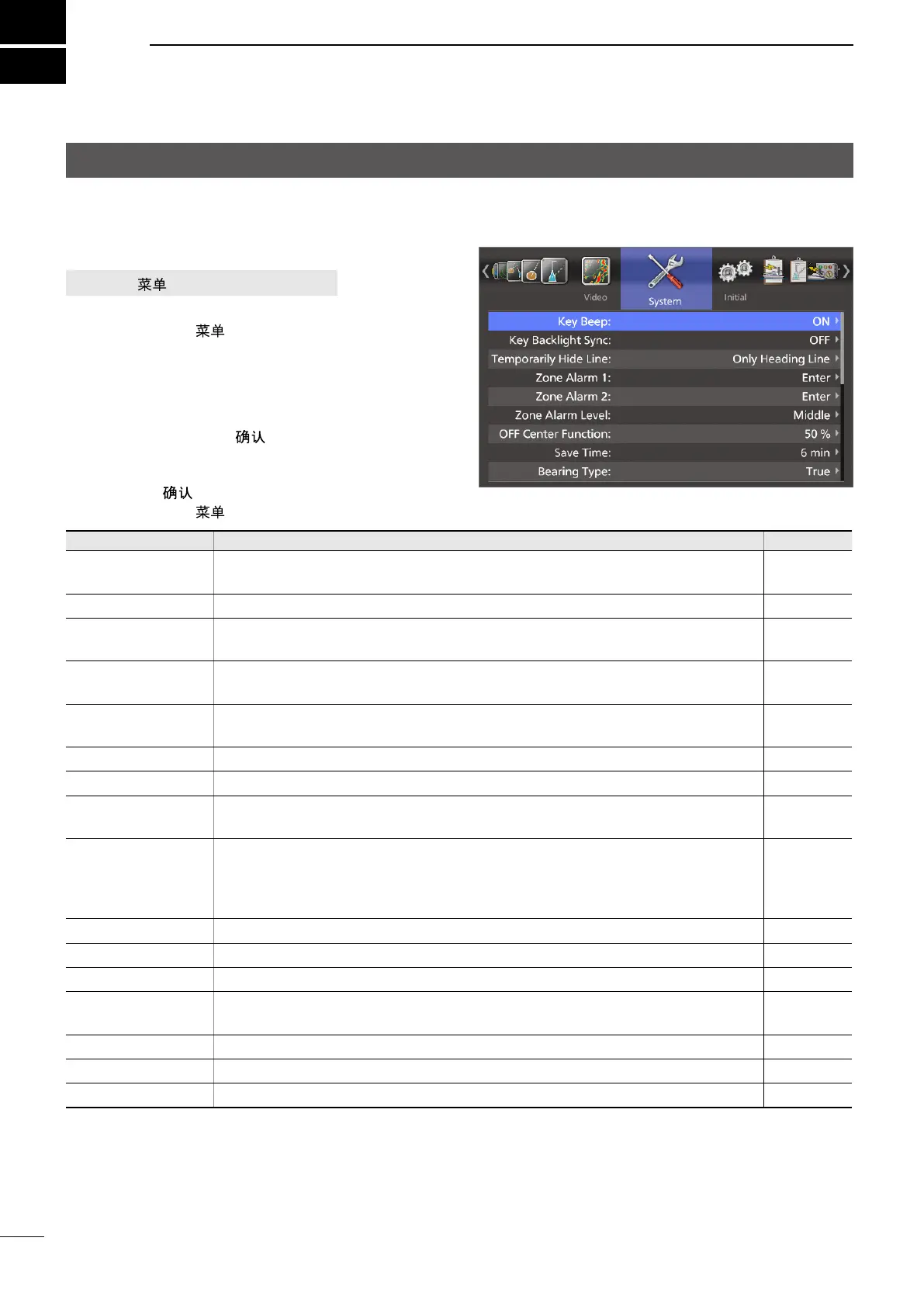

You can customize the radar settings infrequently
changed values or function settings.
Example: Turning the Key Beep ON or OFF
[MENU]/[
] > System > Key Beep
1. Push [MENU]/[
].
L The menu screen is displayed.
The Menu screen disappears 10 seconds after the
last operation.
2. Push [◄] or [] to select the “System” menu.
3. Push [] or [▼] to select the “Key Beep” item, and
then push [ENTER]/[ ].
4. Push [] or [▼] to select “ON” or “OFF,” to
turn the key beeps ON or OFF, and then push
[ENTER]/[ ] to apply.
5. Push [MENU]/[ ] to exit the menu screen.
Using the Menu screen
MENU SCREEN
Menu Description Reference
Brilliance & Color
Customizes the display color and brilliance such as the background, range
rings, displayed symbols.
p. 38
Trail The detailed settings on trails or resets the trail. p. 14
Display
Selects the displayed information in the PPI area, such as waypoint, marks,
DSC information, or customizes your own track.
p. 38
Target
Settings for the AIS or ARPA targets such as CPA/TCPA alarm, entering
favorite or blocking targets.
p. 39
ARPA
Sets details on the simplied ARPA (Automatic Radar Plotting Aids) or resets
the acquired targets.
p. 32
AIS Customizes the AIS (Automatic Identication System) information display. p. 28
Video Scanning and Video tuning settings to get a clear PPI. p. 40
System
Settings for the radar operation basics, such as the Key Beep, Zone Alarms,
Bearing type, Manual Variation, display in the Standby mode.
p. 40
Initial
The initial settings of the radar, such as the distance and speed units, date
format, language, bearing input source, heading adjustment, and so on.
You can also back up or restore the settings, or reset to the factory default in
this menu.
p. 42
DSC List Displays the received DSC (Digital Selective Calling) list and each details. p. 43
AIS List Displays the received AIS information. p. 43
Own AIS Displays AIS information of your vessel. p. 43
Status
Displays the status of the GPS, Heading and AIS inputs, alarm settings, and
CPA/TCPA alarm settings.
p. 43
Port Monitor Displays status of the input/output ports. p. 43
Scanner Monitor Displays the scanner status. p. 43
Safety Message Lists the received AIS messages. p. 43
