Distribution Series 3 Dual Bus
855-314-002_Rev2.0_Instruction Manual

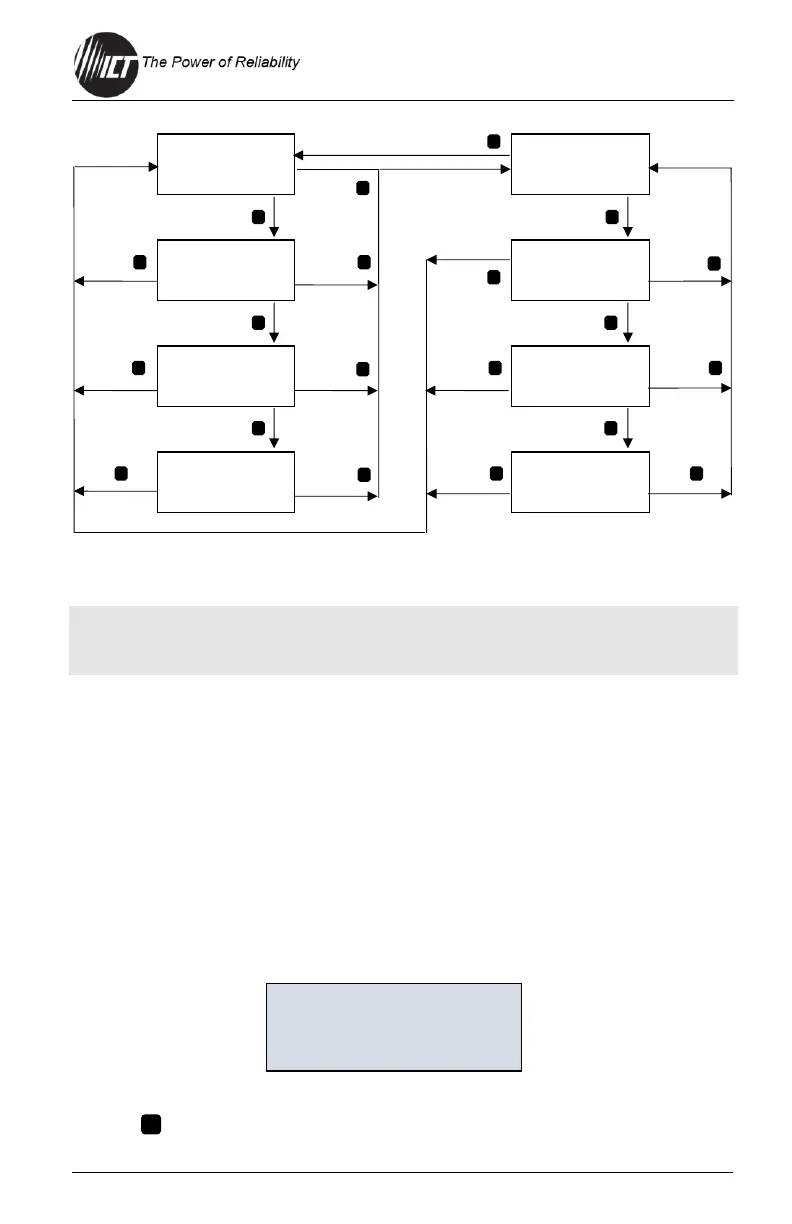

Figure 6. Menu Structure
NOTE: While navigating using the A button, pressing B will take the user to
the Bus B main screen. Similarly pressing A while navigating using
the B button will take the user to the Bus A main screen.
3.2.1 Main Screen
The main screen will show the name of the unit — user configurable through
the graphic user interface (GUI), the bus being monitored (Bus A or Bus B),
the bus voltage, and the total bus current.
Other information will be shown depending on the operating state of the unit:
• The bus voltage will blink if the voltage exceeds the undervoltage
or overvoltage alarm thresholds.
• The total bus current will blink if the current exceeds the
overcurrent alarm threshold.
Press either "Output Select" button to move to the
Network Screen.
ICT Dual Bus Panel PRESS "A" ICT Dual Bus Panel
VOLTAGE: 13.7V
VOLTAGE: −13.7V
CURRENT: 0.0A PRESS "B" CURRENT: 0.0A
Network Connected Network Connected
HOLD "A" 100 Base-Tx PRESS "B" 100 Base-Tx HOLD "B"
192.168.0.68 PRESS "A" 192.168.0.68
e8:eb:1b:e8:6b:99 e8:eb:1b:e8:6b:99
HOLD "A" STATUS: ENABLED PRESS "B" PRESS "A" STATUS: DISABLED HOLD "B"
VOLTAGE: 13.8V VOLTAGE: 13.8V
CURRENT: 0.0A CURRENT: 0.0A
(if enabled) (if enabled)
PRESS/HOLD ALARM INPUT # ALARM INPUT # PRESS/HOLD
"A" PRESS "B" PRESS "A" "B"
STATUS: READY STATUS: ALARM
ICT Dual Bus Panel
BUS: "X"
VOLTAGE: 13.8V
CURRENT: 0.0A
