the mobile web version or use a Virtual Private Network (VPN)
connection.
2. Log into the unit’s built-in server when prompted with the username
and password. The default username is "admin", and no password
is required as the factory default.
5.2 Status & Control

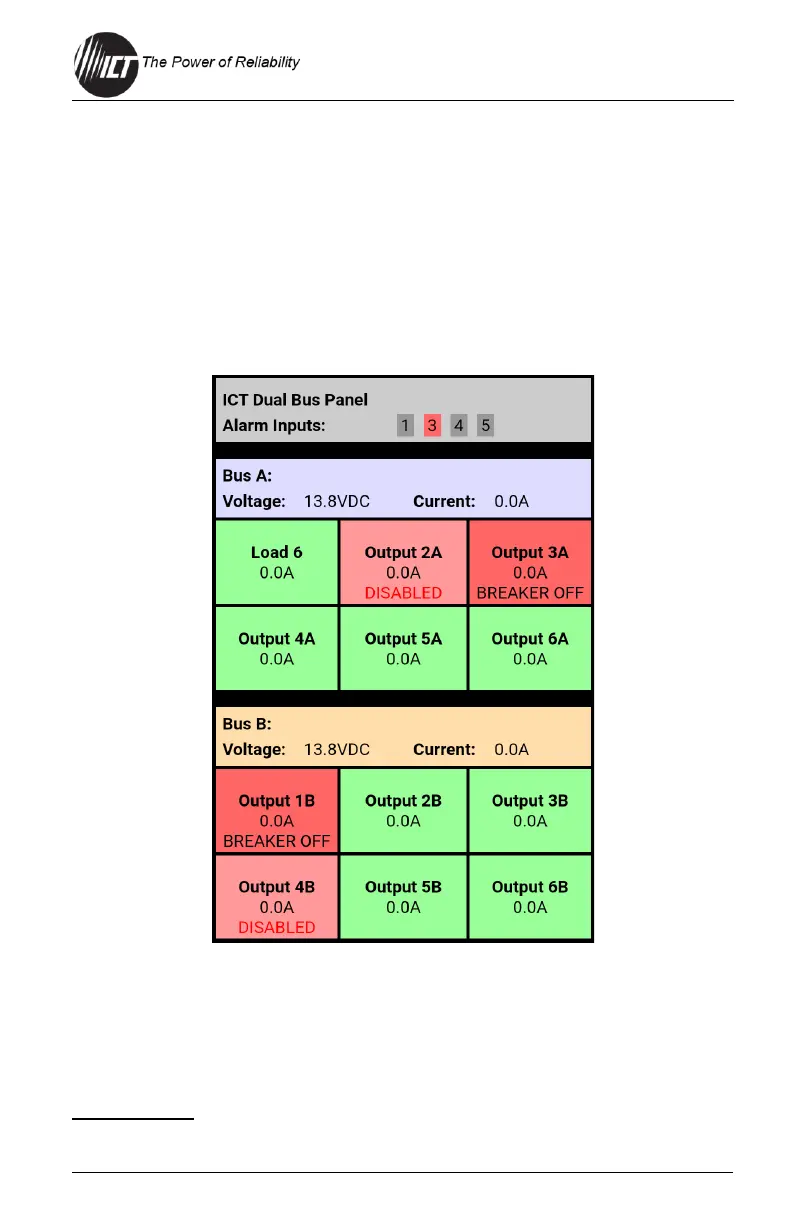

Once successfully logged in, the mobile version of the Status & Control page
will be shown in the smartphone web browser.
The mobile web version page provides information on the bus voltage, bus
current, input alarm status, and the status and current level of each of the
bus output channels. Each individual output may be manually enabled or
disabled by tapping on an output cell (if the user is logged in using the
administrator account).
Alarm Inputs
Shows the status of any of the five Input Alarms for alarms that have
been enabled (see Section 4.9). Will show grey if inactive or red if an
To Next Page
