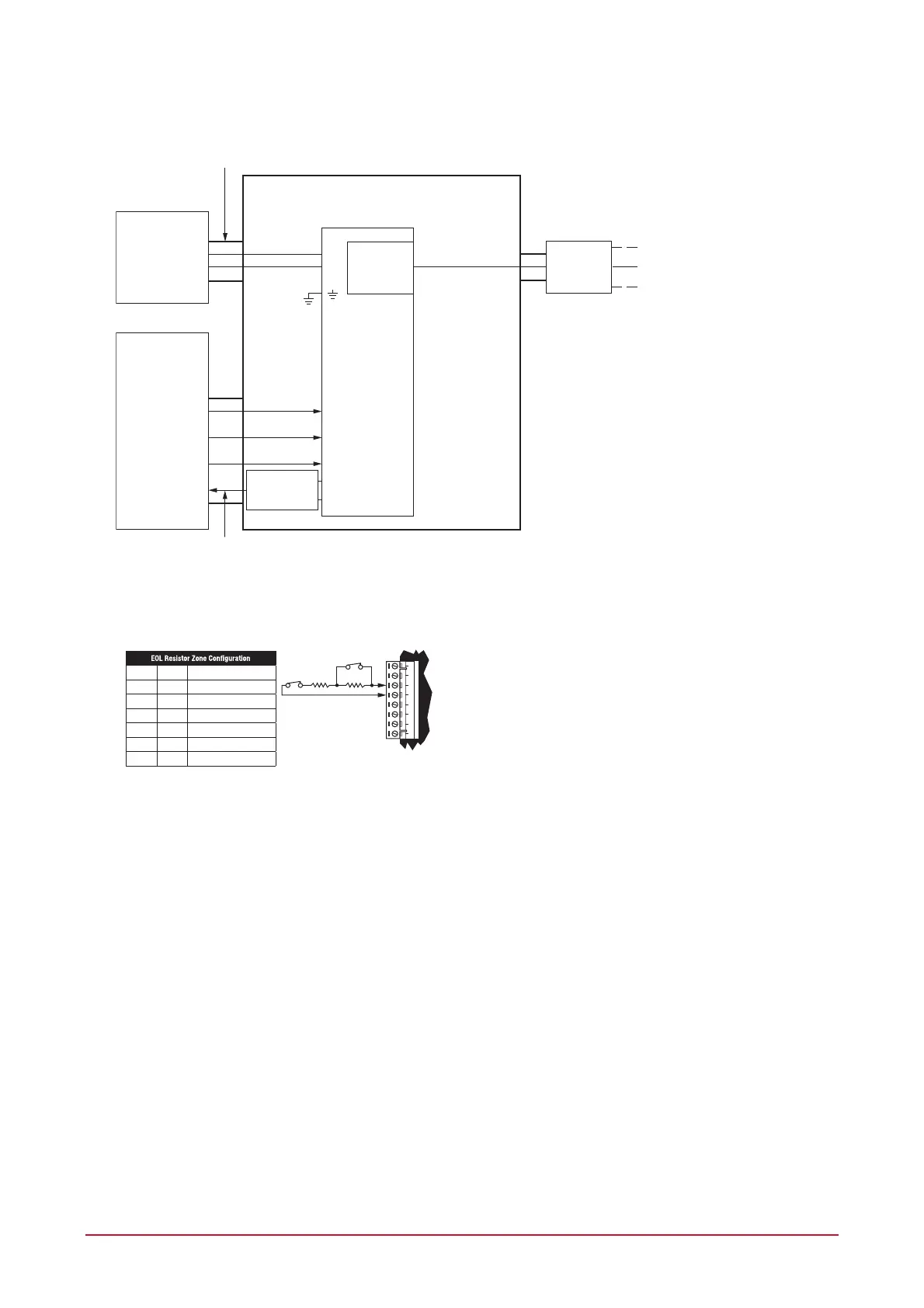

PRT-CTRL-SE Protege SE Integrated System Controller Installation Manual | June 2017 51

ETHERNET
ENCLOSURE
FIRE
SUPERVISORY
TROUBLE
FIRE ALARM PANEL
Z1
Z2
Z3
PRT-CTRL-SE
COM STATUS / FB
MARCUS M4758CT
Hardwire Transformer
AC
AC
CAN/ULC-S559
PRT-CTRL-SE
ACTIVE COMMUNICATION
INTERNET
TELECOM
EQUIPMENT
24h Standby / Backup
Required for Telecom
Equipment
Note: All cables shall be protected within metal conduits.Metal Conduit
* If installation requires Fire Alarm Panel local supervision, a ULC S527 listed relay module (such as the EDWARDS CRCRL RELAY) must be used to trigger input zone on fire alarm control panel.
The relay module must be able to meet supervision requirements of the input zone or be mounted within 18m of the fire alarm control unit in conduit.
* Fire zones shall be separated from burglar zones through area partitioning.
* Fire zones Z1-Z3 shall be used exclusively for fire monitoring and cannot be programmed to activate bell outputs (B1/B2)
* EOL resistor must be installed at the Fire Alarm Control Panel Output.
AUX
P3 or P4
Dry Contacts
EDWARDS
CRCRL
RELAY
POS+
NEG -
Typical Zone Circuits
Value 1 Value 2 Monitored Status
1K 1K Open, Close, Tamper, Short
6K8 2K2 Open, Close, Tamper, Short
10K 10K Open, Close, Tamper, Short
2K2 2K2 Open, Close, Tamper, Short
4K7 2K2 Open, Close, Tamper, Short
4K7 4K7 Open, Close, Tamper, Short
+AUX- Z1 COM COMZ2 Z3 Z4
N.C
Tamper
N.C Zone Contact
Value 2 Value 1
