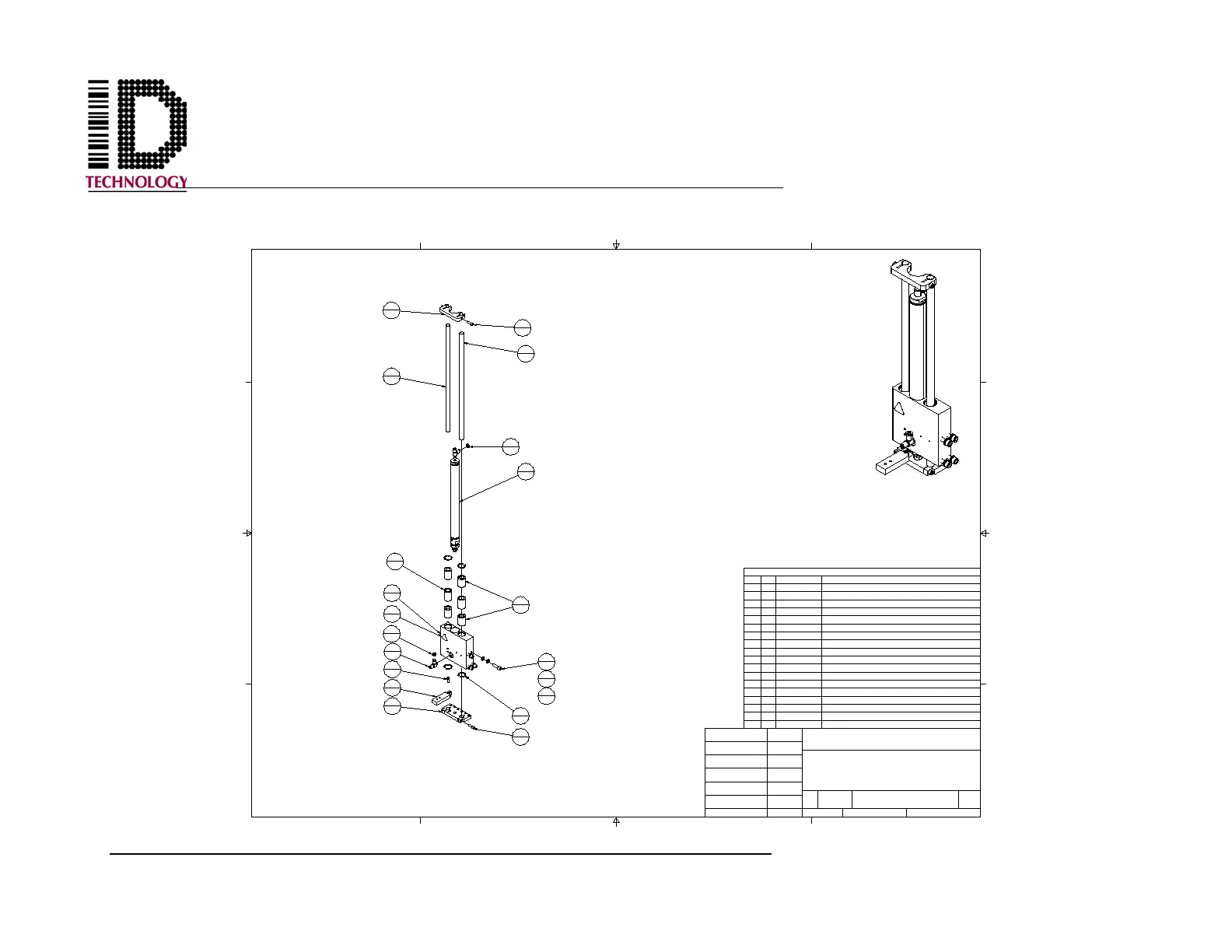

Figure 18: Exploded View, 62260-XX Heavy Duty Tamp Assembly
1
1
2
2
3
3
4
4
A A
B B
C C
D D
TITLE
SIZE
DWG NO
REV
SCALE
SHEET OF
DRAWN
CHECKED
QA
MFG
APPROVED
62260-XX
1
1
C
menmi
1/15/2004
Parts List
DESCRIPTION
PART NUMBERQTY
ITEM
LABEL,HAND CRUSH1143c11
CYLINDER,12" STROKE
62257-XX12
FLOW CONTROL,TAMPER PROOF ELB 1/4Tx1/8UNI6225923
BLOCK,TAMP HEAVY DUTY
6226114
BRACKET,TAMP6226215
STABILIZER,TAMP SHAFT6226316
HEAVY DUTY TAMP SHAFT
62264-XX27
BRACKET, CABLE CARRIER6226618
BEARING,LINEAR 5/8"IDX1-1/8"ODX1-1/2"LG
6226749
SLEEVE,TAMP BLOCK62268210
RING,RETAINING 1-1/8" BORE98409A221411
BLACK CAPKQ2C-07B
112
GREY CAPKQ2C-07GR113
SCREW,PHILLIPS FLAT HEADM5 x 20214
SCREW,SOCKET HEAD CAP
M6 x 20415
WASHER,PLAINM8416
WASHER,SPRING
M8417
SCREW,SOCKET HEAD CAPM8 x 30418
MODEL 250
HEAVY DUTY
TAMP ASSEMBLY
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF ID TECHNOLOGY,CORP. ANY REPRODUCTION IN
PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF ID TECHNOLOGY
IS PROHIBITED.
2
1
7
2
4
1
10
2
1
1
13
1
3
2
6
1
7
2
15
4
12
1
14
2
8
1
5
1
9
4
11
4
18
4
17
4
16
4
15
4
*
*
* REPLACE THE -XX WITH THE
APPROPRIATE TAMP STROKE.
-12, -18, -24, -30
