Model 252
Label Printer/Applicator
Operators/Technical Manual
1
1. General Specifications
1.1 Standard Features
• Choice of printers to suit every application. The 252 Applicator will
accommodate standard Sato, Zebra, and Datamax print engines without
modification.
• Microprocessor driven on a single board
• 4” Tamp stroke standard, capable of conversion to various stroke lengths from 2”
to 8”
• Regulators and air gauges controlling Tamp, Air Assist, and Vacuum Pressures
• Right and Left Hand options for 252 and 252N models

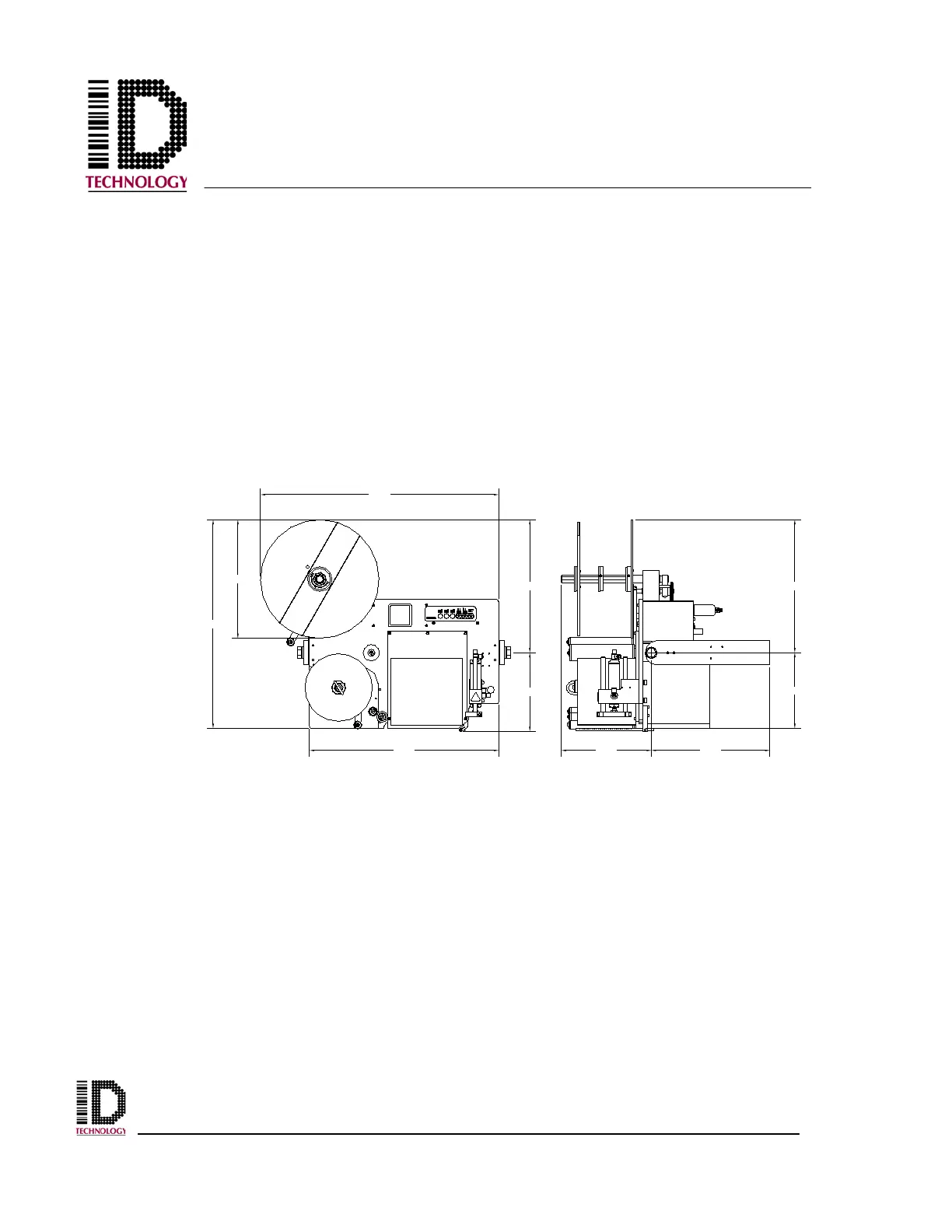

1.2 Overall Dimensions
1.3 Weight
Model 252 Base w/o Print engine: 71 lbs
1.4 Electrical
100-240 VAC, 50-60Hz, Single Phase, 3.0A-1.5A
See the manual for the type of print engine used for individual electrical requirements and
adjustments.
1.5 Air Requirements
Clean, dry air at 80psi minimum to 120psi (approximately 6.1 bar) 3-5 CFM dependant
on the application method and rate.
• The supply pressure must always be greater than the highest pressure being used
on the applicator
• The applicator has a filter with drain on the plant infeed supply. To ensure
reduced maintenance time, a pre filter upstream is recommended.
25.50
14.50
29.13
16.25
9.63
23.12
16.25
9.25
11.00 14.50
